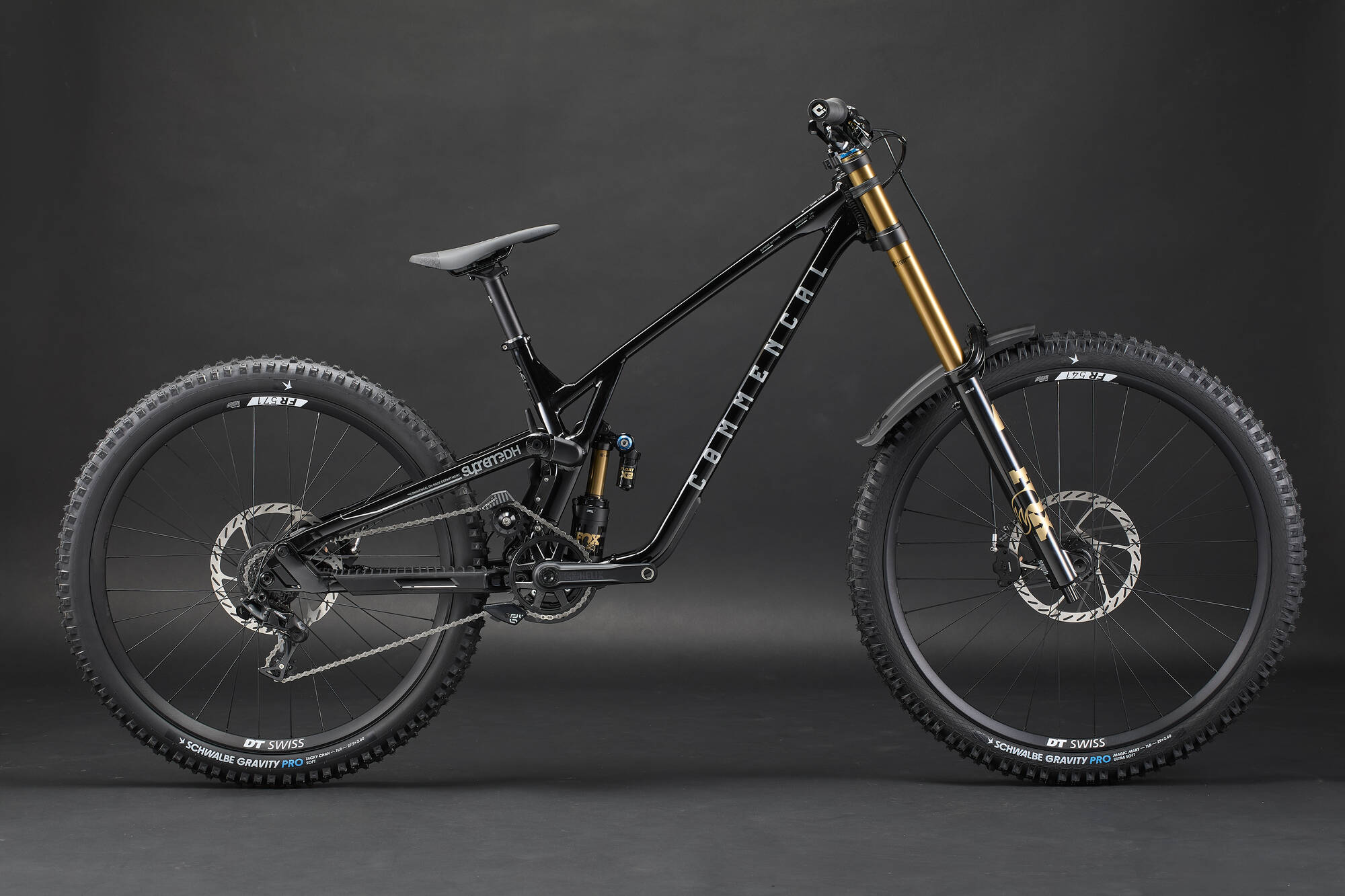

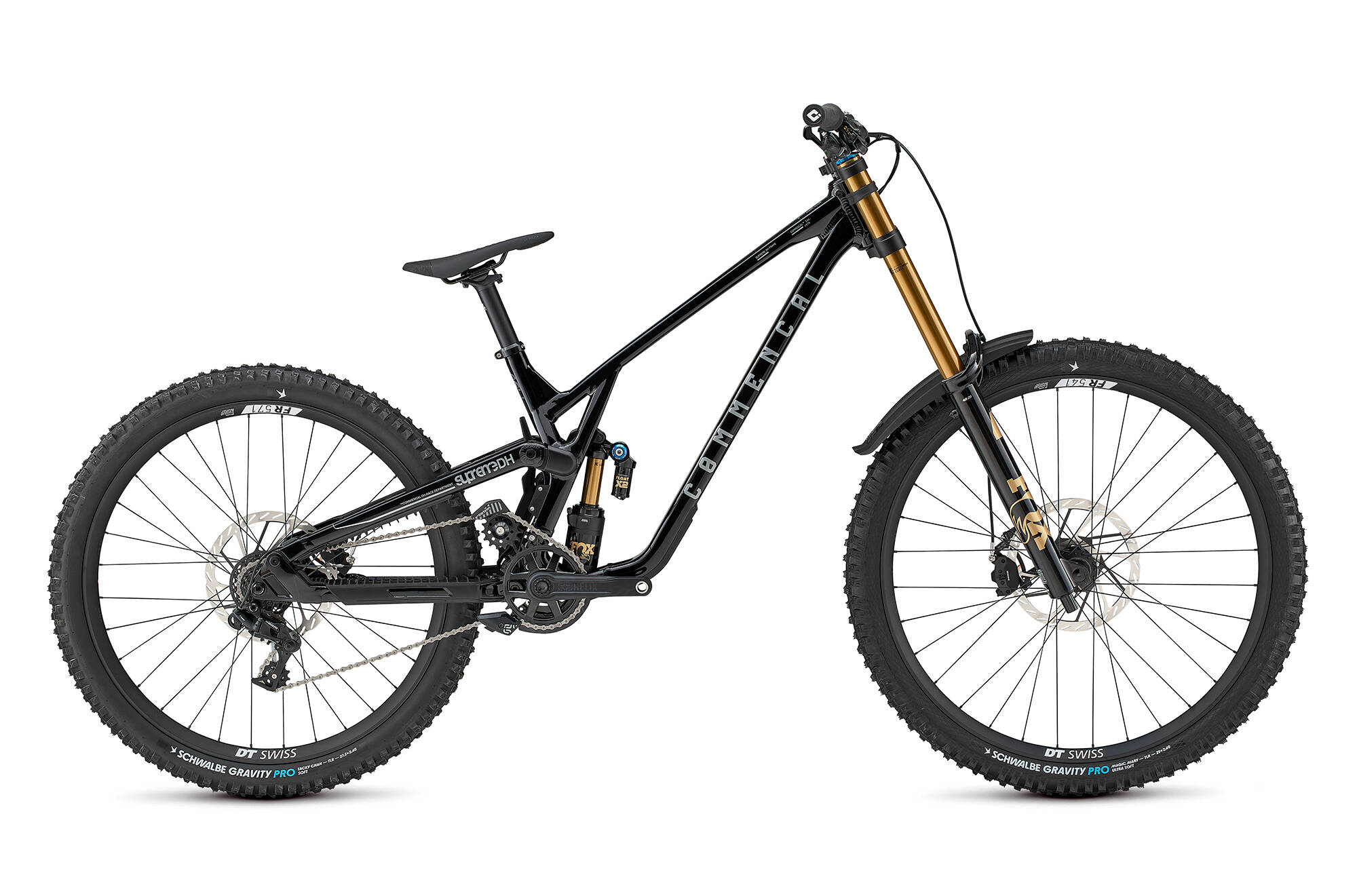

NEW COMMENCAL SUPREME DH V5.2 SIGNATURE PURE BLACK 2027

Name: NEW COMMENCAL SUPREME DH V5.2 SIGNATURE PURE BLACK 2027
Brand: Commencal South Africa
SKU: BT3SUPV5RI2-L
Price: 195000.0 ZAR
Availability: InStock

R 195,000.00

Size

Color

Pure Black

There is a longer delivery lead time on this bike. Click the button below to enquire about this bike.

Enquire Now

Description

The SUPREME DH V5.2 is the result of development carried out on the World Cup circuit.

It retains all the qualities of the SUPREME DH V5 while bringing major improvements:

The SUPREME DH V5.2 SIGNATURE is aimed at riders seeking absolute performance, with a premium build and FOX Factory suspension.

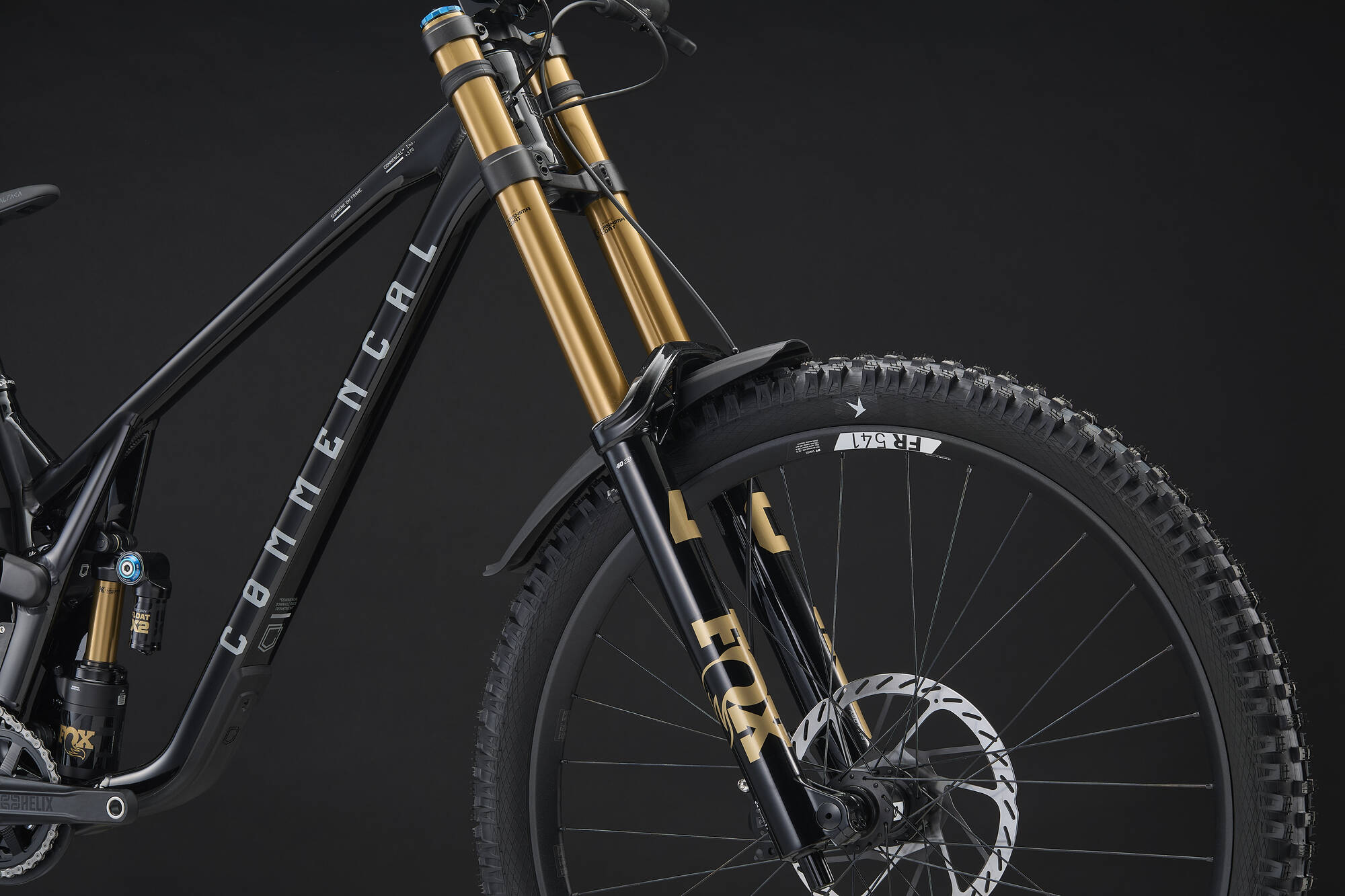

• The FOX 40 Factory features a new, more precise chassis and a Grip X2 cartridge with high and low-speed compression and rebound adjustments.

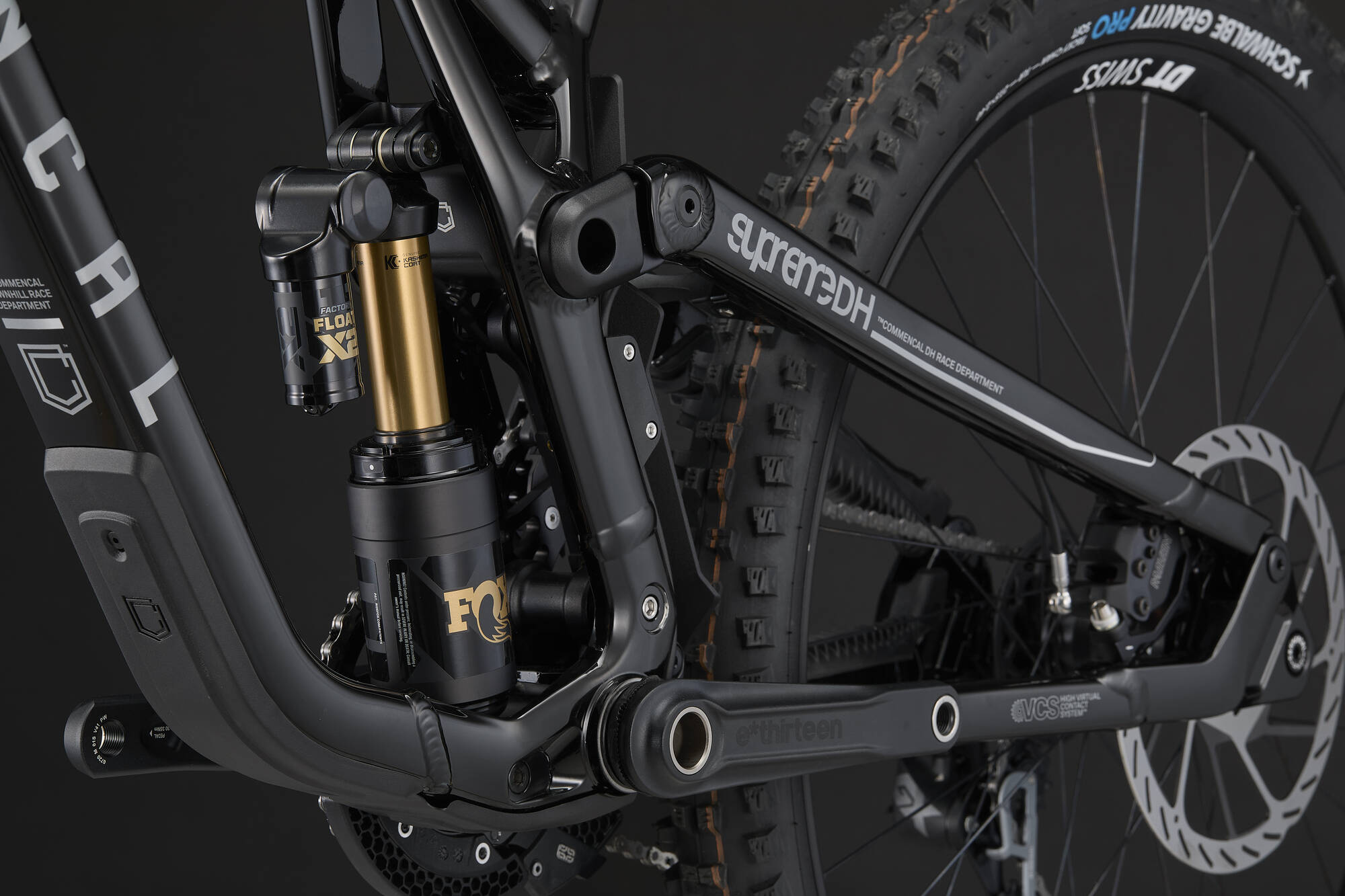

• The FOX Float X2 Factory provides precise control of compressions and rebounds to fully exploit the chassis potential. Its internal tune was developed specifically for the SUPREME DH V5.2.

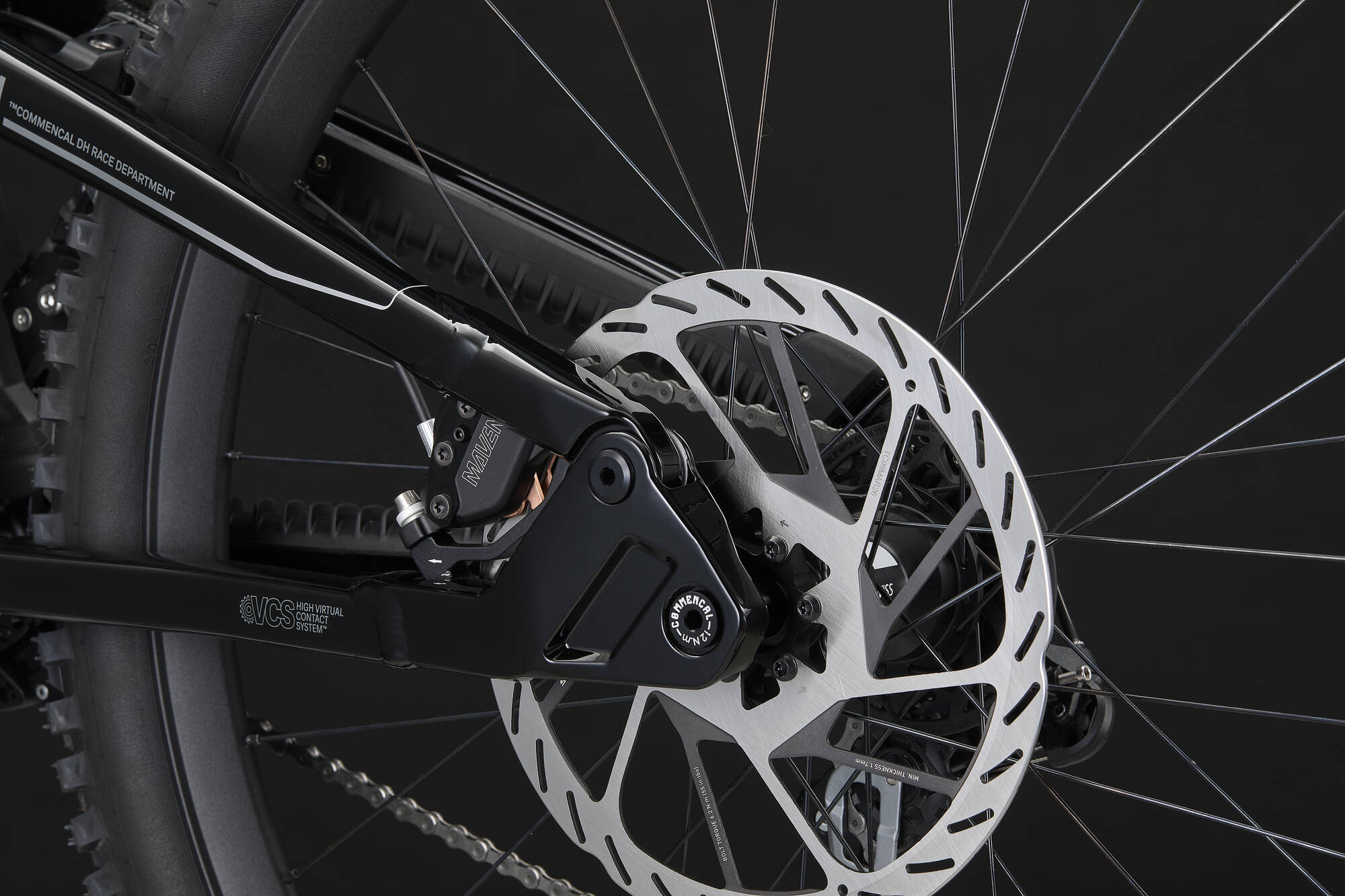

• Braking is handled by the SRAM Maven Silver 4-piston calipers. With 220 mm rotors, they deliver power and modulation on any type of trail.

• DT SWISS FR571 / FR541 wheels laced to DT SWISS 350 hubs with DEG DF technology combine stiffness, reliability and adjustable engagement (0, 10 or 20 degrees).

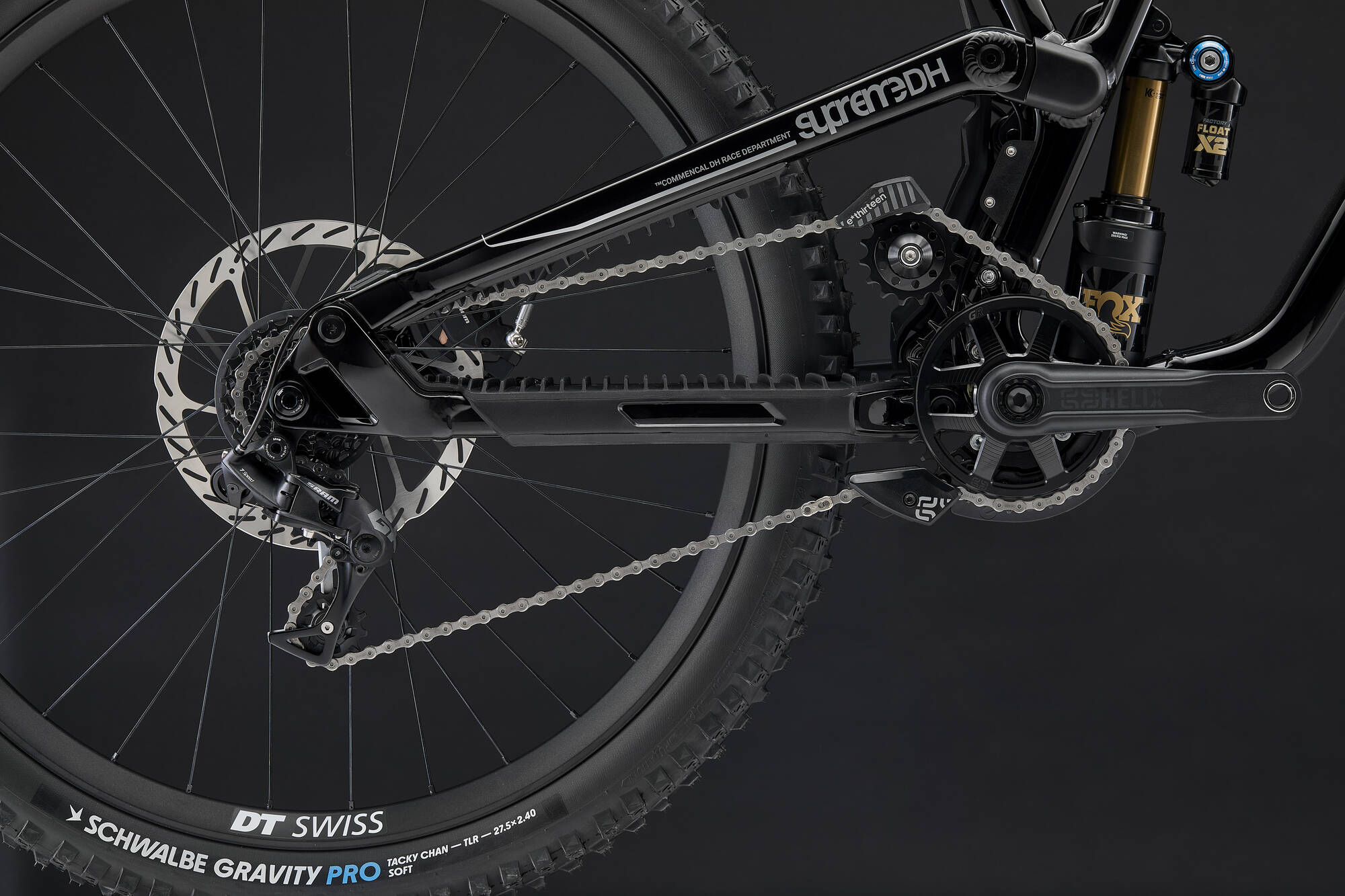

• The SRAM GX DH 7-speed drivetrain ensures reliable gear changes. Paired with E13 Helix Core GR cranks and the LG1+ chain guide, it forms a robust assembly perfectly suited to modern downhill.

Tech

FRAME MATERIAL: Al 6066 T4, T6

FRAME WEIGHT: 5,8 kg / 12.78 lb

REAR TRAVEL: 220 mm

SHOCK LENGTH / STROKE: 250 mm / 75 mm

PIGGY BACK SHOCK COMPATIBLE: YES

SHOCK BUSHINGS: 30 x 8 mm / 30 x 8 mm

RECOMMENDED / MAX. FORK HEIGHT: 612 mm / 620 mm

HEADSET DIMENSION: -

HEADSET TYPE: ZS56 / ZS56

MAXIMUM TYRE DIMENSION (ETRTO): 65mm - Ø584mm

DISC BRAKE STANDARD:

REAR ROTOR MAX. SIZE: 223 MM

SEATPOST / SEAT CLAMP DIAMETER: 31,6mm / 34,9mm

BOTTOM BRACKET TYPE: Press Fit BB 107mm

ISCG:

FRONT DERAILLEUR TYPE: -

REAR HUB COMPATIBILITY: 157 x 12 mm

Specs

SHOCK: FOX FLOAT X2 Factory

250 x 75 mm, HSC, LSC, HSR, LSR

FORK: FOX 40 Factory, 200 mm

29", Grip X2, HSR, LSR, HSC, LSC, Boost 20 x 110 mm thru-axle, 52 mm offset, 2 tokens

HEADSET: CANECREEK Hellbender 70

ZS56/ZS56, alloy cups, sealed bearings

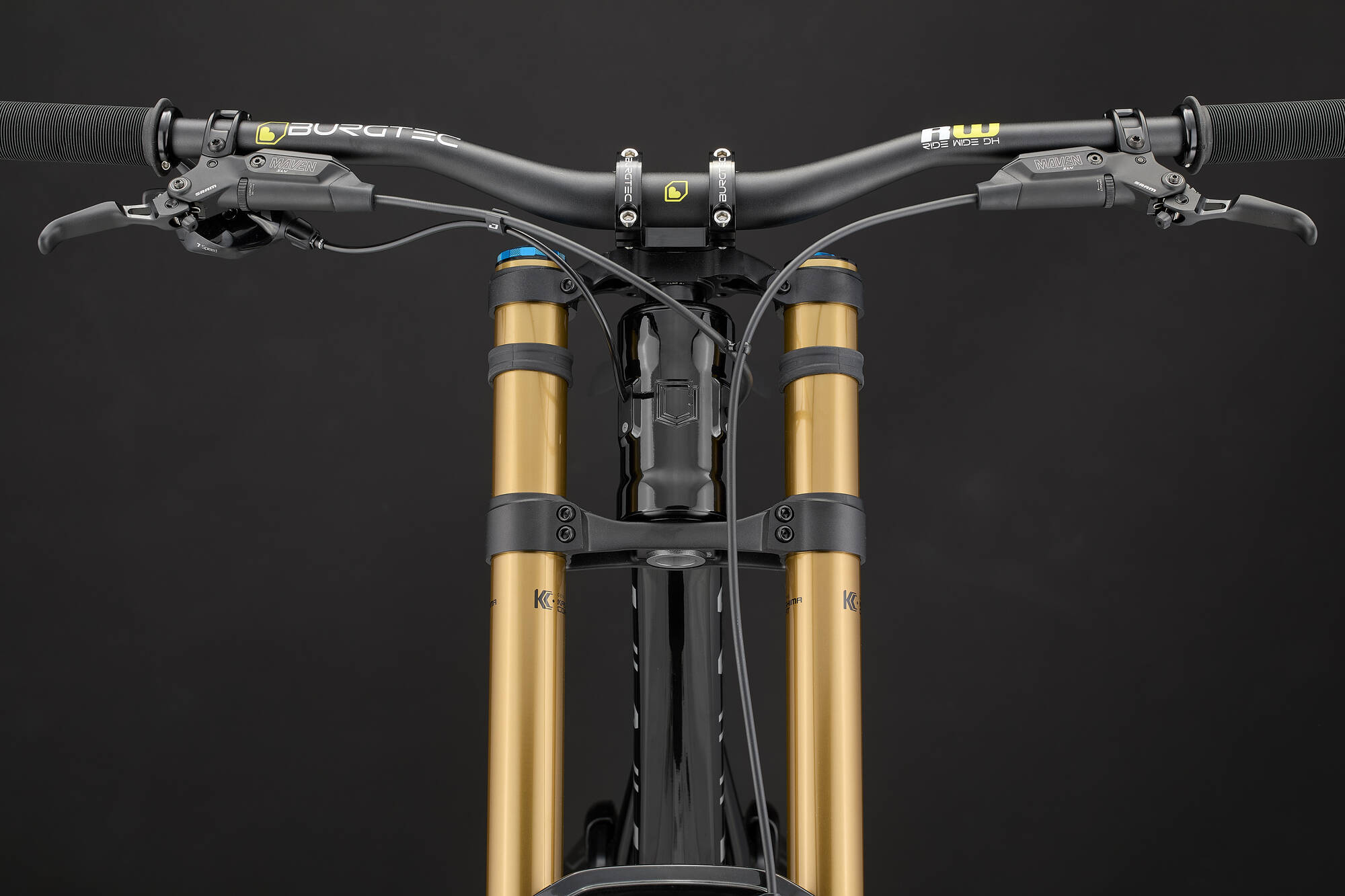

STEM: BURGTEC Direct Mount

45 mm extension, direct mount, 31.8 mm

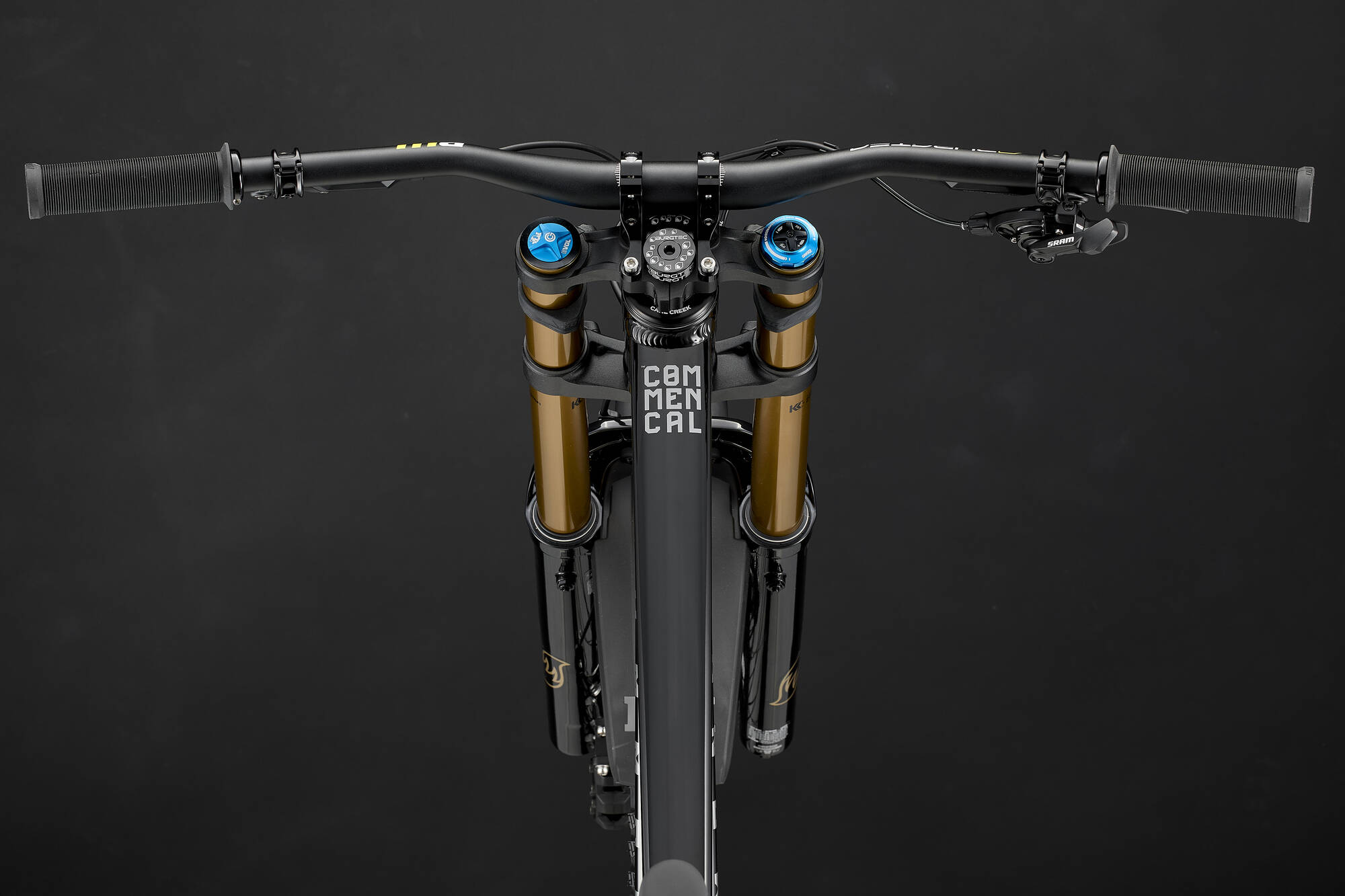

BAR: BURGTEC Ride Wide

31.8 mm, 800 mm width, 30 mm rise, Alloy 6061

GRIPS: ODI Longneck V2.1

132 mm, Black clamp

BRAKES: SRAM Maven Silver, 4 pistons, sintered pads

Rotors : SRAM HS2 220 mm, 6-bolts

SHIFTERS: SRAM GX DH

7s

CHAIN GUIDE: E13 LG1+

32-34t

REAR MECH: SRAM GX DH

7s

BOTTOM BRACKET:

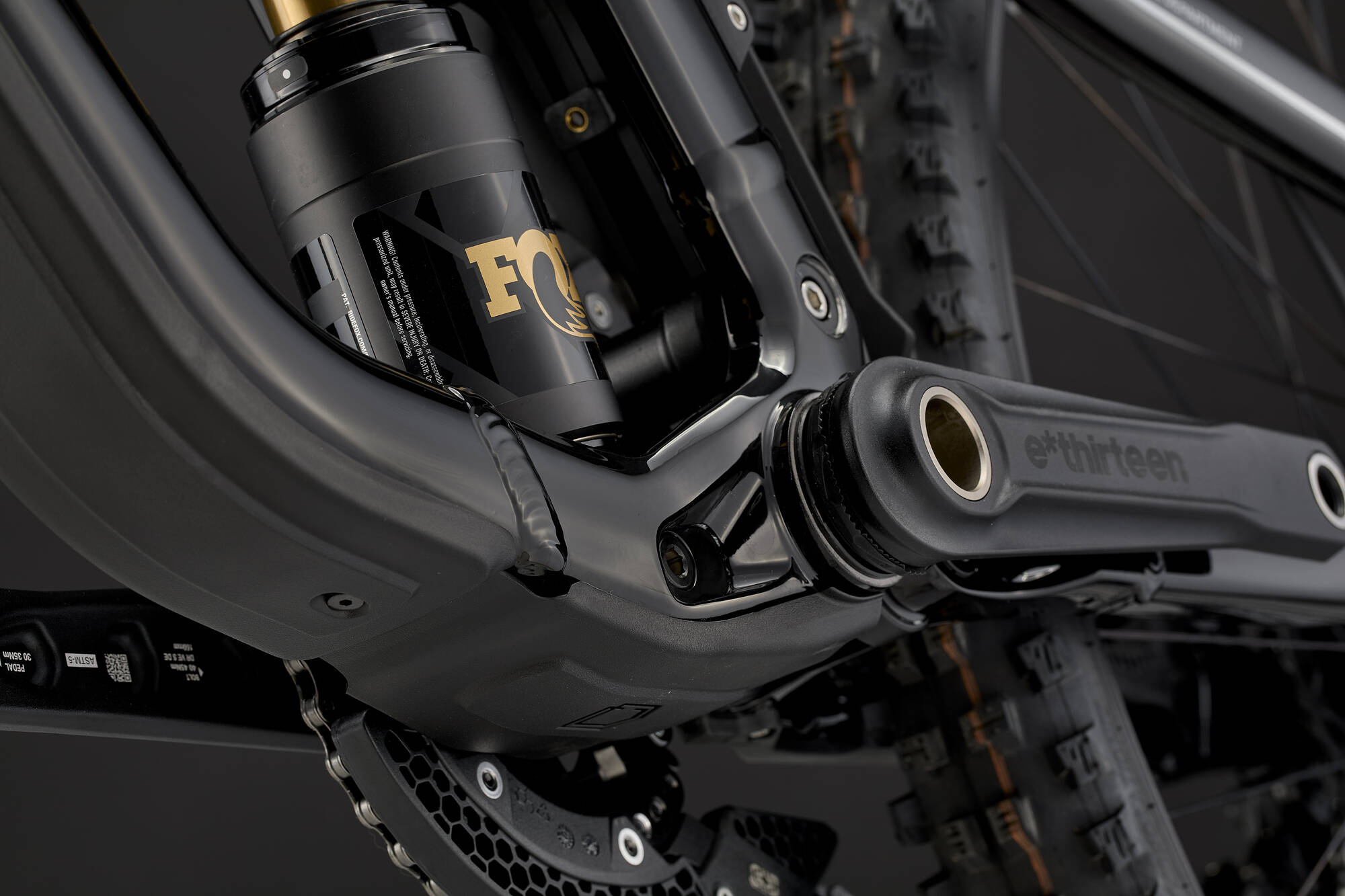

CRANKSET: E13 Helix core GR, 160 mm crank arms, DUB

Chainring : E13 Helix core GR, 34t

CHAIN: SRAM PC1110

11s, Black

CASSETTE: SRAM PG-720 DH

7s, 11-25t

RIMS: Rear : DT SWISS FR541 - Front : DT SWISS FR571

Rear : 27.5'', 32h, 30 mm inner width - Front : 29'', 32h, 30 mm inner width

HUBS: DT SWISS 350

Rear : 32h, sealed bearings, 12 x 157 mm, Hyperglide - Front : 32h, sealed bearings, 20 x 110 mm

SPOKES/NIPPLES:

TYRES: Rear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary

Rear : 27.5''x2.5'', Gravity Pro, Soft, Tubeless Ready - Front : 29''x2.5'', Gravity Pro, Ultra Soft, Tubeless Ready

SEATPOST: RIDE ALPHA

31.6 mm, 250 mm length

SADDLE: FIZIK Gravita Alpaca X5

130 mm width, S-Alloy rails, Team edition

Quick Facts

BICYCLE TYPE: Downhill Racing

FRAME: SUPREME DH V5.2, 29/27, 220 mm travel

29/27'', Alloy 6066, triple butted tubes, T4, T6.

WEIGHT: 19 kg / 41.88 lb

Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED: NO

ACCESSORIES: RideWrap Lotus Pro™ protection film applied, chainstay protector, seatstay protector, downtube protector, fork fender
