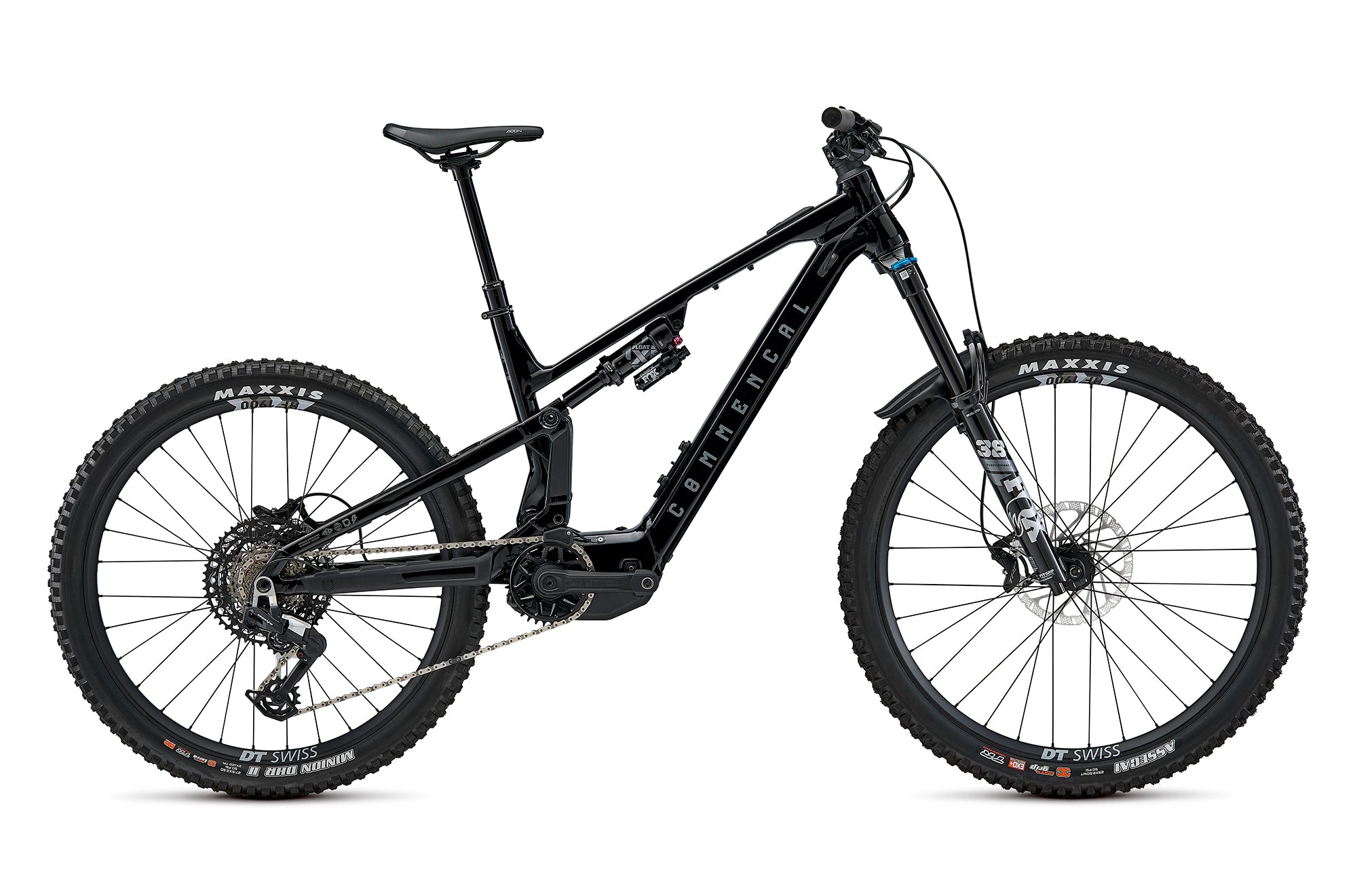

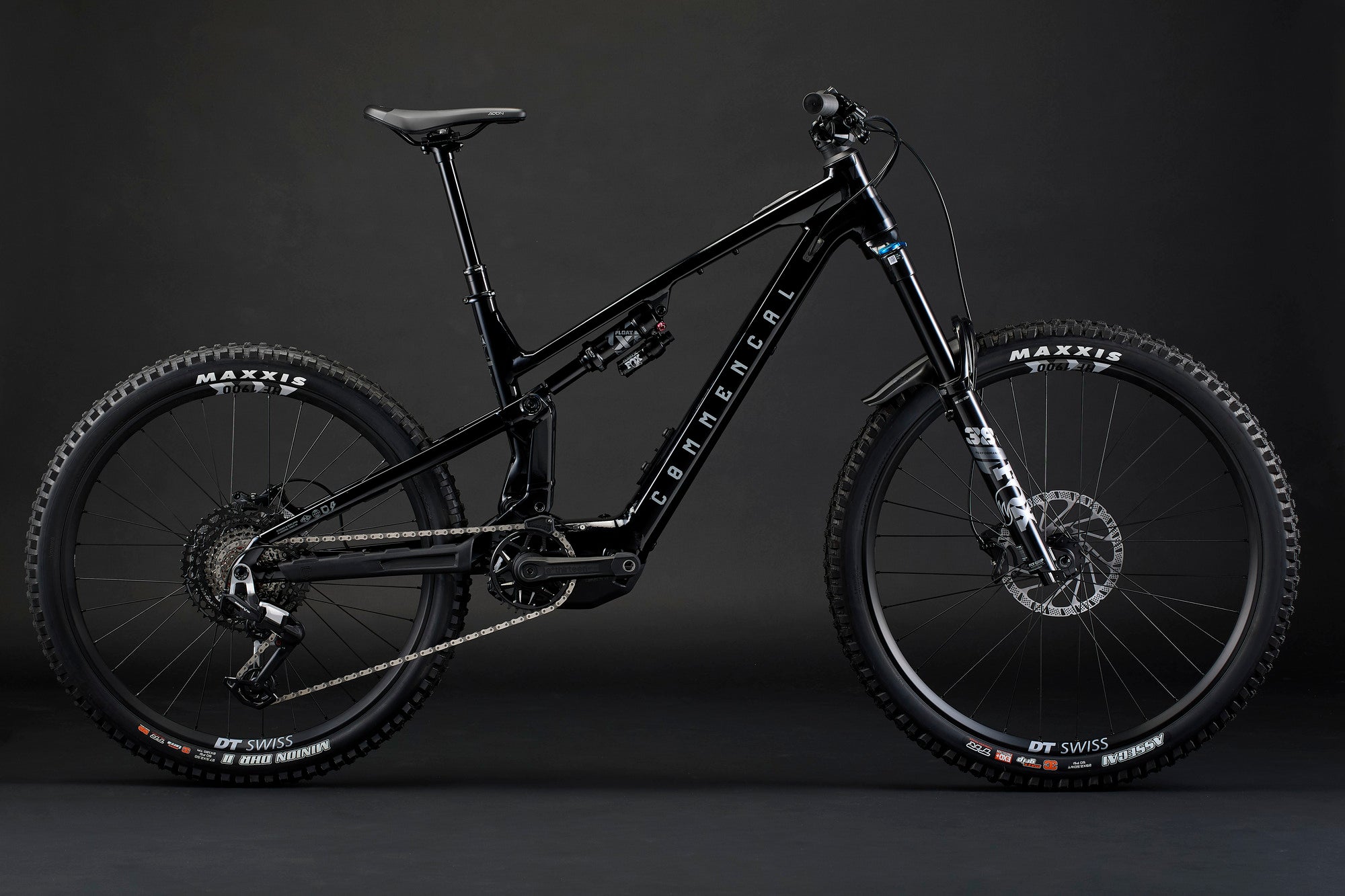

NEW! COMMENCAL META POWER SX 400 ESSENTIAL EAGLE 90 2026

FRAME MATERIAL: AL 6066 T6

FRAME WEIGHT: 4,76 kg / 10,49 lb

REAR TRAVEL: 170 MM

SHOCK LENGTH / STROKE: 230 X 65 MM

PIGGY BACK SHOCK COMPATIBLE: YES

SHOCK BUSHINGS: 20x10mm / no bushing needed on clevis

RECOMMENDED / MAX. FORK HEIGHT: 588mm / 598mm

HEADSET DIMENSION: TAPERED

HEADSET TYPE: ZS56 / ZS66

MAXIMUM TYRE DIMENSION (ETRTO): 65mm - Ø584mm

DISC BRAKE STANDARD: PM160

REAR ROTOR MAX. SIZE: 223 MM

SEATPOST / SEAT CLAMP DIAMETER: 34,9mm / 38,5mm

BOTTOM BRACKET TYPE: BOSCH SX

ISCG: Yes (BOSCH Standard)

FRONT DERAILLEUR TYPE: NO

REAR HUB COMPATIBILITY: 148x12mm

SHOCK: FOX Float X Factory
230 x 65 mm, 2-postion (open/firm) lever, LSC, LSR, 0.4 spacers

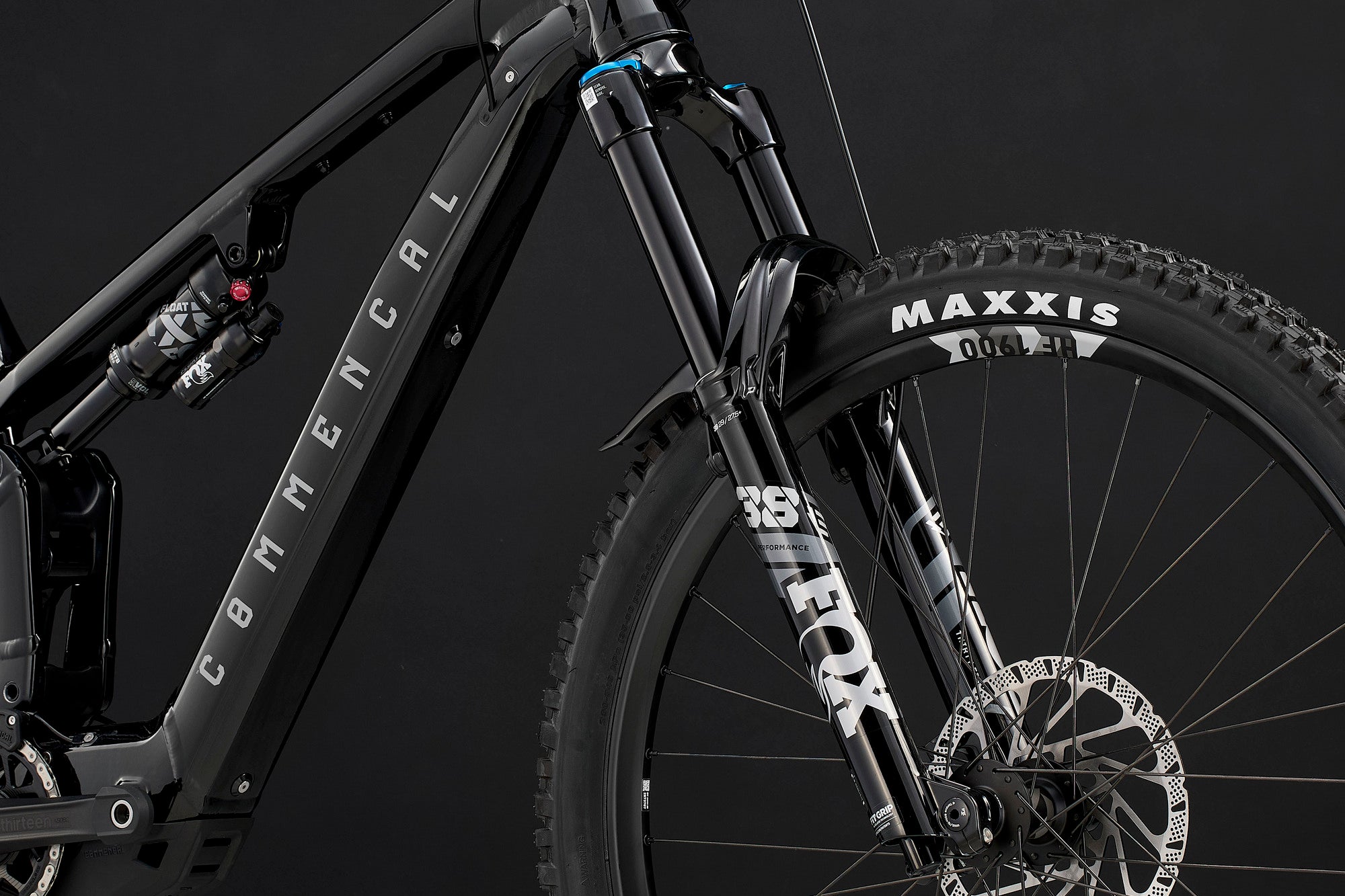

FORK: FOX 38 Factory E-Bike, 170 mm
29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacers

HEADSET: ACROS ZS56 / ZS66
Alloy cups, stainless steel & sealed bearings

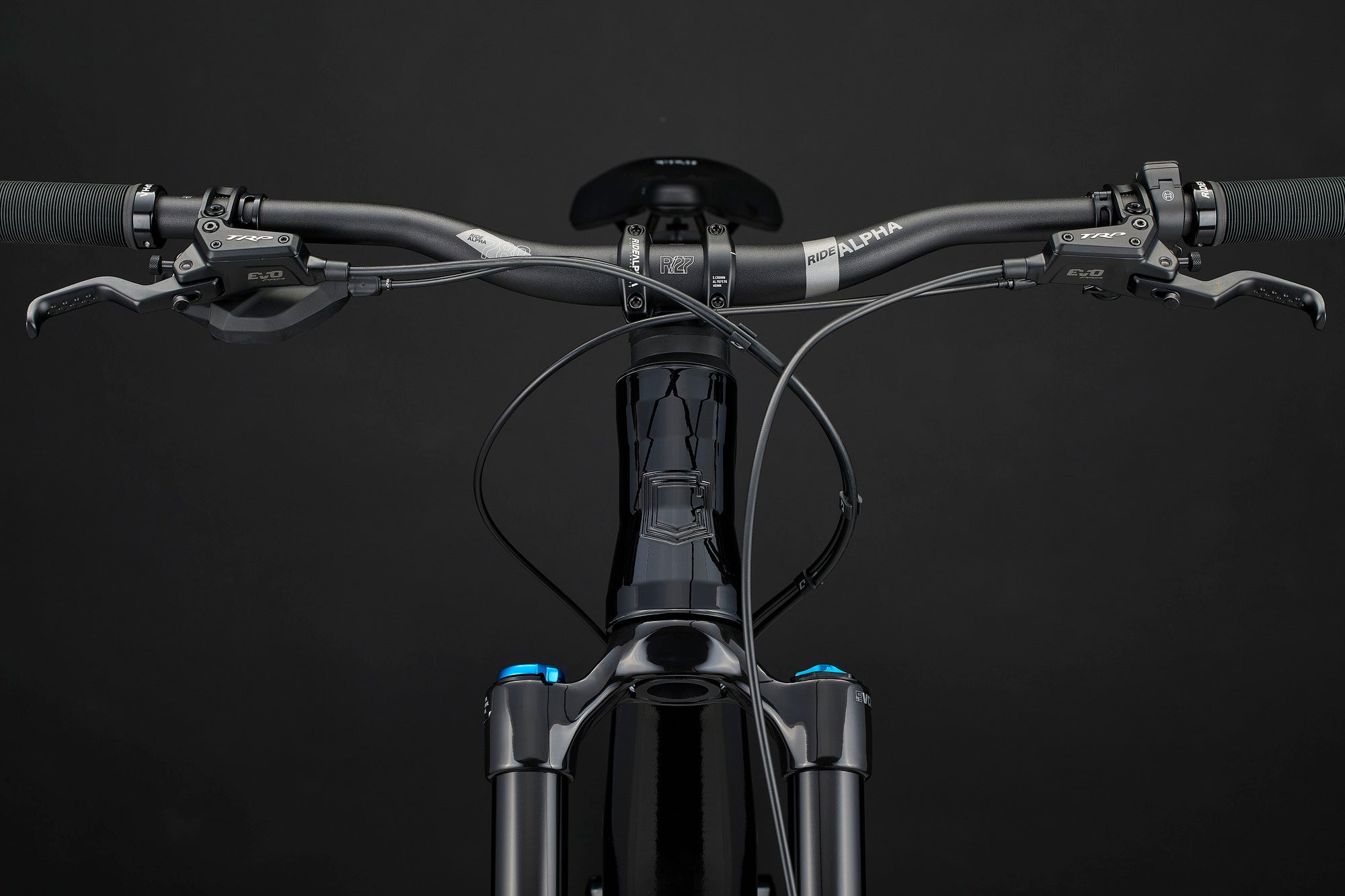

STEM: RIDE ALPHA 40
40 mm extension, 31.8 mm

BAR: RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS: RIDE ALPHA Mushroom
Soft compound, single clamp, 132 mm width, black

BRAKES: TRP DH-R EVO PRO, 4 pistons, resin pads
Rear rotor: TRP RS05 203 mm - Front rotor: TRP RS05 220 mm
6-bolt, 2.3 mm width

SHIFTERS: SRAM Eagle 90
12s

CHAIN GUIDE: RIDE ALPHA
32-34t

REAR MECH: SRAM Eagle 90
12s

BOTTOM BRACKET:

CRANKSET: E13 Helix Core E*Spec, 155 mm crank arms, Bosch Gen4
Chainring: E13 Helix Race 34T, 34t, direct mount, Bosch Gen4

CHAIN: SRAM GX T-type
12s

CASSETTE: SRAM GX T-Type
12s, 10-52t

RIMS: DT SWISS HF1900
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

HUBS: DT SWISS 370
Rear: 28h, sealed bearings, 12 x 148 mm, 18t, Sram XD - Front: 28h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES: Included with wheelset

TYRES: Rear: MAXXIS Minion DHRII 27.5'' - Front: MAXXIS ASSEGAI 29''
Rear: 27.5 x 2.50 WT, Tubeless Ready, 3C MaxxTerra, Double Down - Front: 29 x 2.50 WT, Tubeless Ready, 3C MaxxGrip, New EXO+

SEATPOST: KS Rage-I
34.9 mm, 125 mm on S, 170 mm on M and 190 mm on L/XL

SADDLE: FIZIK Terra Aidon X5
145 mm width, Kium Mobius rails

MOTOR: BOSCH Performance Line CX. Max. torque: 85N.m, 250W

BATTERY: BOSCH PowerTube 625, 625Wh. BOSCH 4A Charger, Compact size & lightweight. Compatible w/Bosch PowerMore 250 for extra range

DISPLAY: BOSCH System ControllerBOSCH Mini Remote currently not available in the USA

BATTERY RECYCLING: Partnership with BOSCH. The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too. Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.

BICYCLE TYPE: E-bike - Enduro / Downhill

FRAME: META POWER SX 400, 170 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu Bearings

WEIGHT: 22.0 kg / 48.50 lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED: CRANKBROTHERS Stamp 1

ACCESSORIES: Down tube protector, chainstay protector, seatstay protector, FOX 38 specific fender, FIDLOCK base
