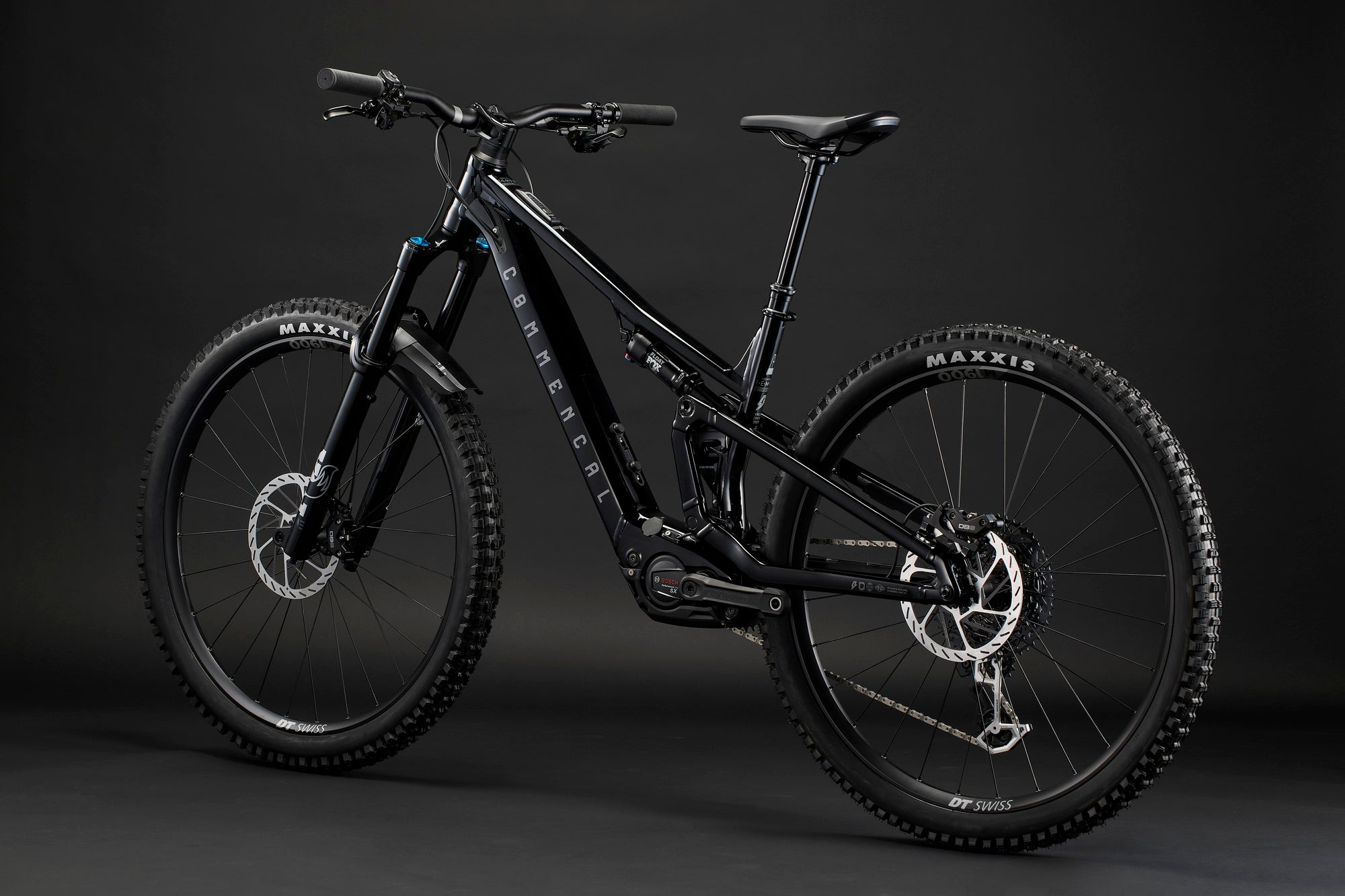

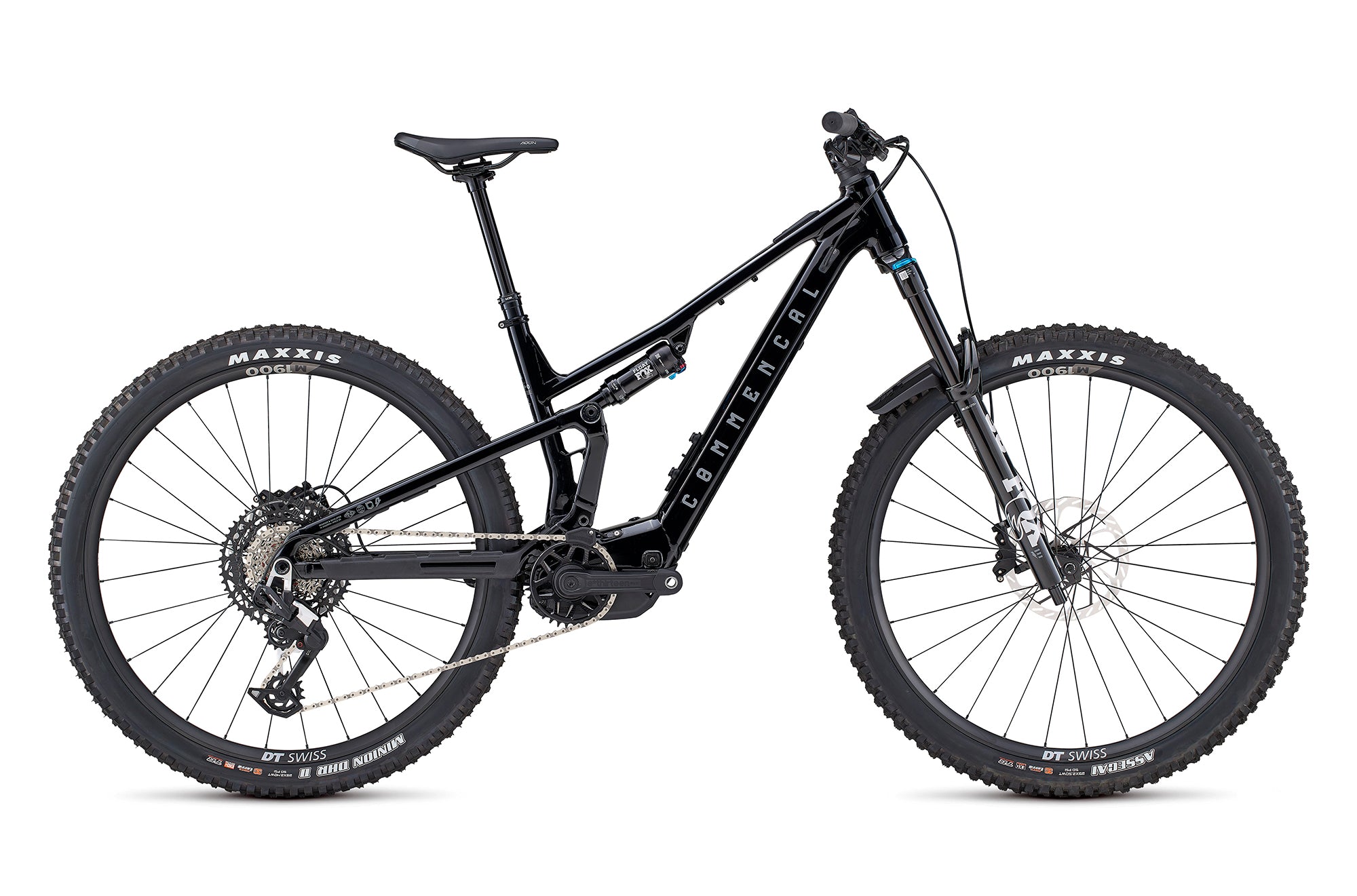

DEMO COMMENCAL T.E.M.P.O. POWER ESSENTIAL EAGLE 90 2026

FRAME MATERIAL: AL 6069 T6

FRAME WEIGHT: 3,84 kg / 8,46 lb

REAR TRAVEL: 135 MM

SHOCK LENGTH / STROKE: 210x50mm

PIGGY BACK SHOCK COMPATIBLE: YES

SHOCK BUSHINGS: 20x10mm - 30x10mm

RECOMMENDED / MAX. FORK HEIGHT: 551mm / 561mm

HEADSET DIMENSION: STRAIGHT

HEADSET TYPE: ACROS ZS56/ZS56 Alloy cups, sealed & stainless steel bearings

MAXIMUM TYRE DIMENSION (ETRTO): 65mm - Ø622mm

DISC BRAKE STANDARD:

REAR ROTOR MAX. SIZE: 203mm

SEATPOST / SEAT CLAMP DIAMETER: 31,6 MM / 34,9 MM

BOTTOM BRACKET TYPE: BOSCH E-BIKE

ISCG: Yes (BOSCH Standard)

FRONT DERAILLEUR TYPE: NO

REAR HUB COMPATIBILITY: 12 X 148 MM

SHOCK: FOX Float Performance
210 x 50 mm, rebound, 2-postion (open/firm) lever, 3-setting open mode tuning range, 0.6ci spacers

FORK: FOX 36 Performance E-Bike, 150 mm
29", Grip damper, rebound, LSR, 3-position compression, Boost (15 x 110 mm), 44 mm offset, 4 spacers

HEADSET: ACROS ZS56/ZS56
Alloy cups, sealed & stainless steel bearings

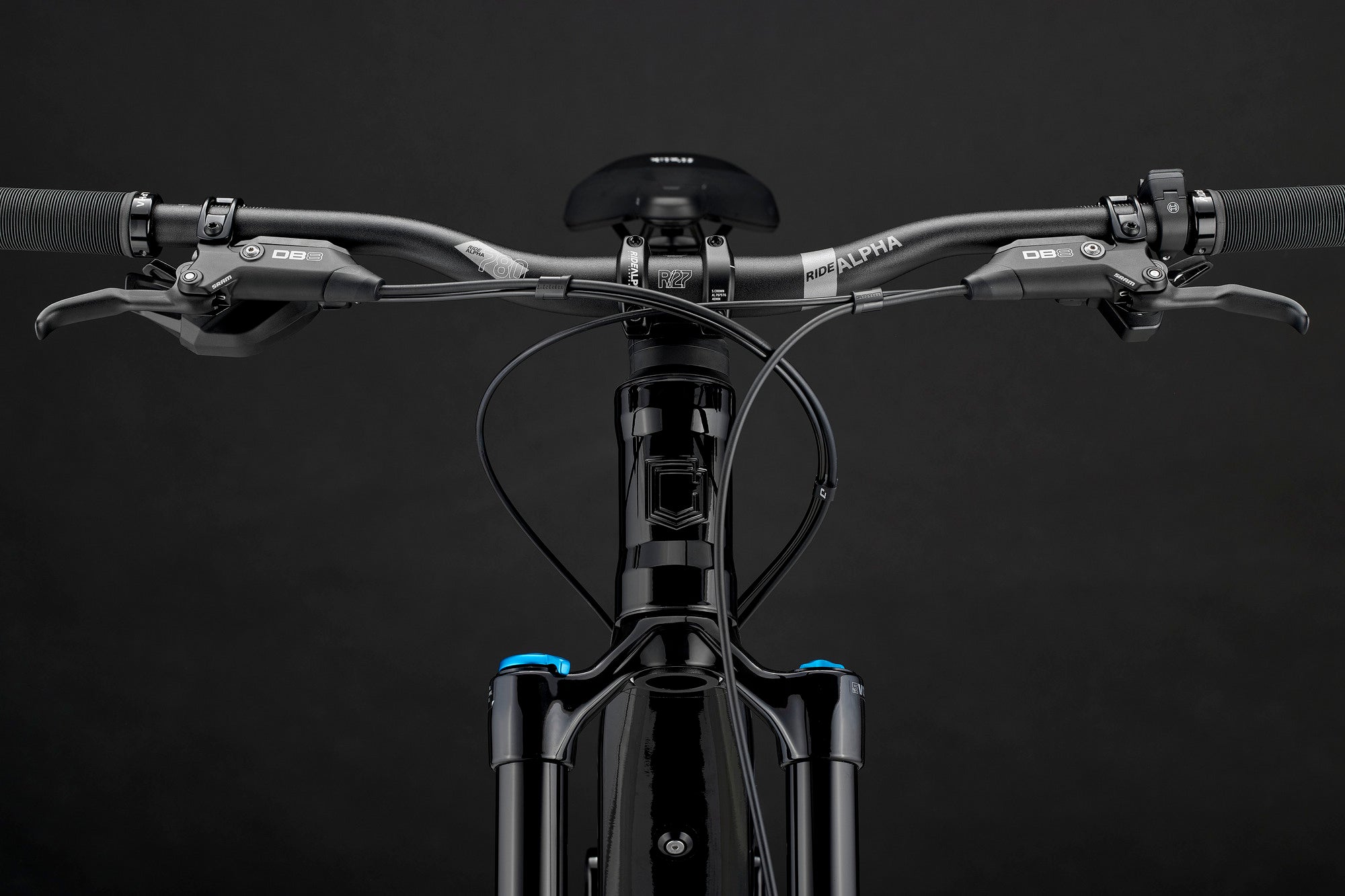

STEM: RIDE ALPHA 40
40 mm extension, 31.8 mm

BAR: RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS: RIDE ALPHA Mushroom
Soft compound, single clamp, 132 mm width, black

BRAKES: SRAM DB8, 4 pistons, resin pads
Rotors: SRAM HS2 200 mm, 6-bolt, 2.0 mm width

SHIFTERS: SRAM Eagle 90
12s

CHAIN GUIDE: RIDE ALPHA
32-34t

REAR MECH: SRAM Eagle 90
12s

BOTTOM BRACKET: BOSCH

CRANKSET: E13 Helix Core e*spec, 155 mm crank arms
Chainring: E13 Helix Race e*spec, 34t, direct mount

CHAIN: SRAM GX T-type
12s

CASSETTE: SRAM XS 1270 T-Type
12s, 10-52t

RIMS: DT SWISS M1900
29'', 28h, 30mm inner width, Tubeless Ready

HUBS: DT SWISS 370
Rear: 28h, 12 x 148 mm, sealed bearings, 18t, Shimano Hyperglide - Front: 28h, 15 x 110 mm, sealed bearings

SPOKES/NIPPLES: Included with wheelset

TYRES: Rear: MAXXIS DHRII - Front: MAXXIS Assegai
Rear: 29 x 2.40WT, 3C MaxxTerra, NEXO +, TR - Front: 29 x 2.50WT, 3C MaxxTerra, EXO, TR

SEATPOST: KS Ragei
31.6 mm, 150 mm on S, 170 mm on M, 190 mm on L /XL

SADDLE: FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius rails

BICYCLE TYPE: E-bike - Trail / Aventure

FRAME: TEMPO P.O.W.E.R., 135 mm travel
29'', Alloy 6066 triple butted tubes, T4, T6. Bolu bearings

WEIGHT: 20,4 kg / 45 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED: CRANKBROTHERS Stamp 1 pedals

ACCESSORIES: CRANKBROTHERS Stamp 1 pedals, Down tube protector, chainstay protector, seatstay protector, pedals, FOX 36 specific fender, Fidlock bases, down tube plastic film protector
