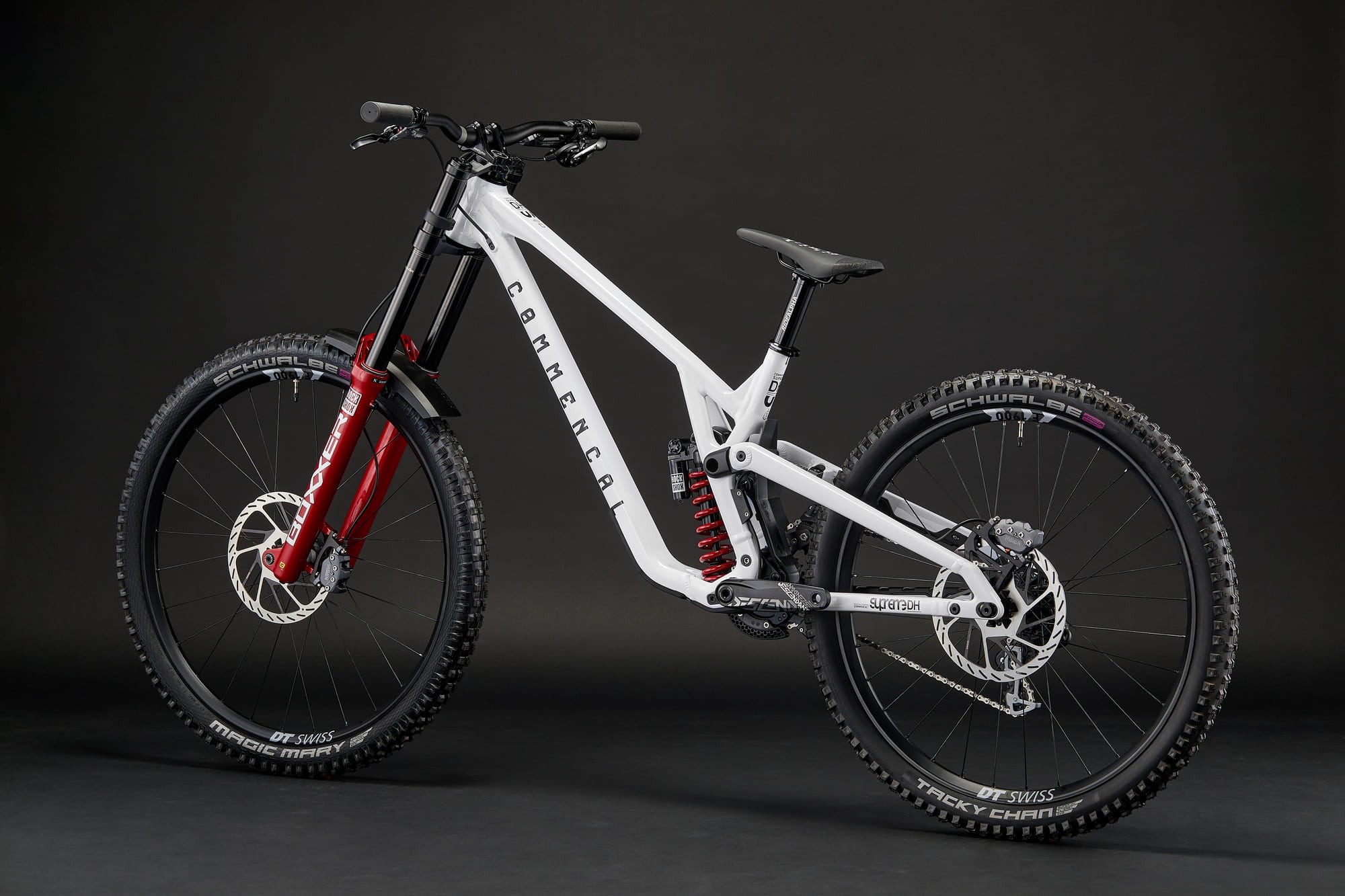

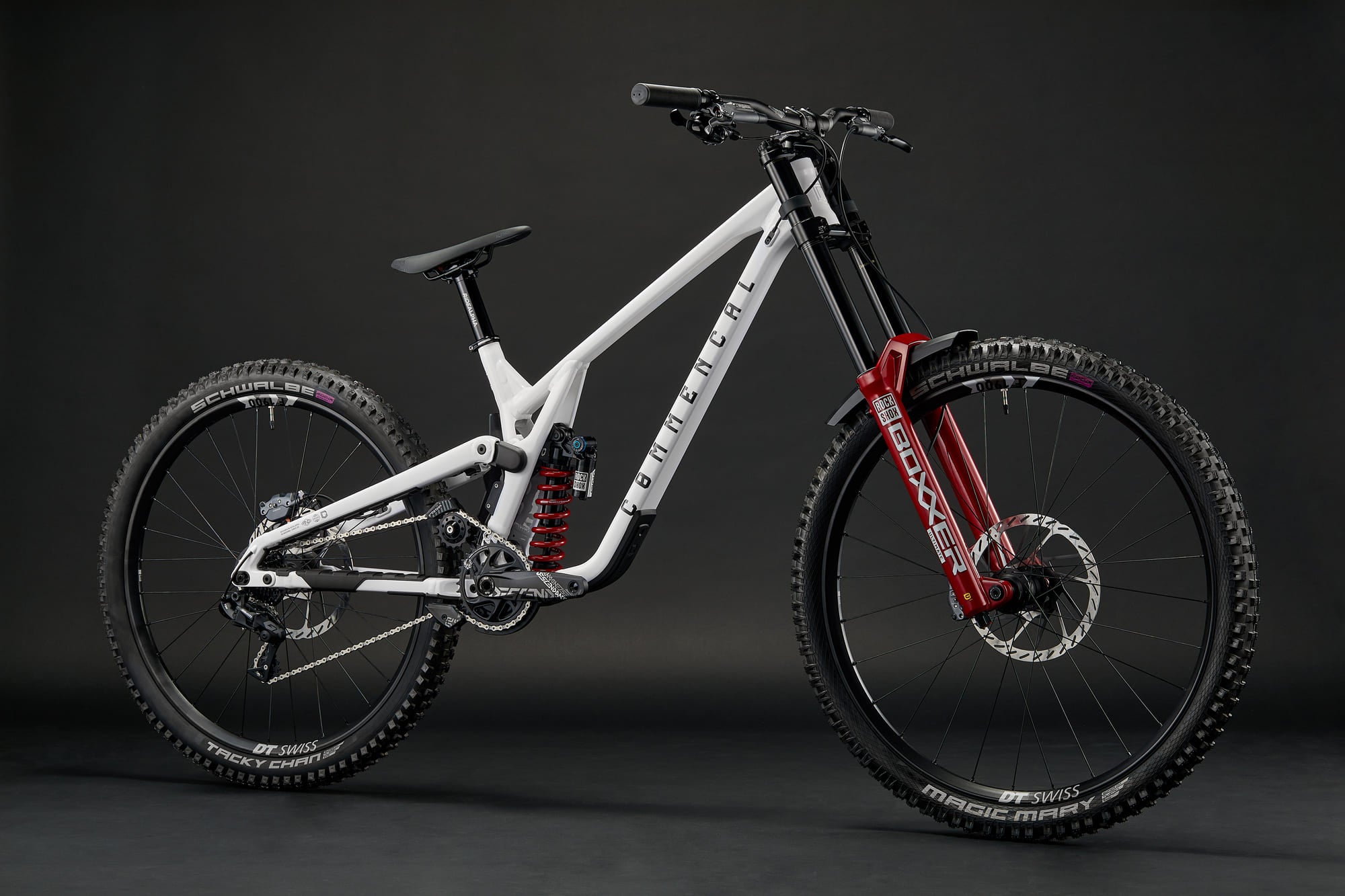

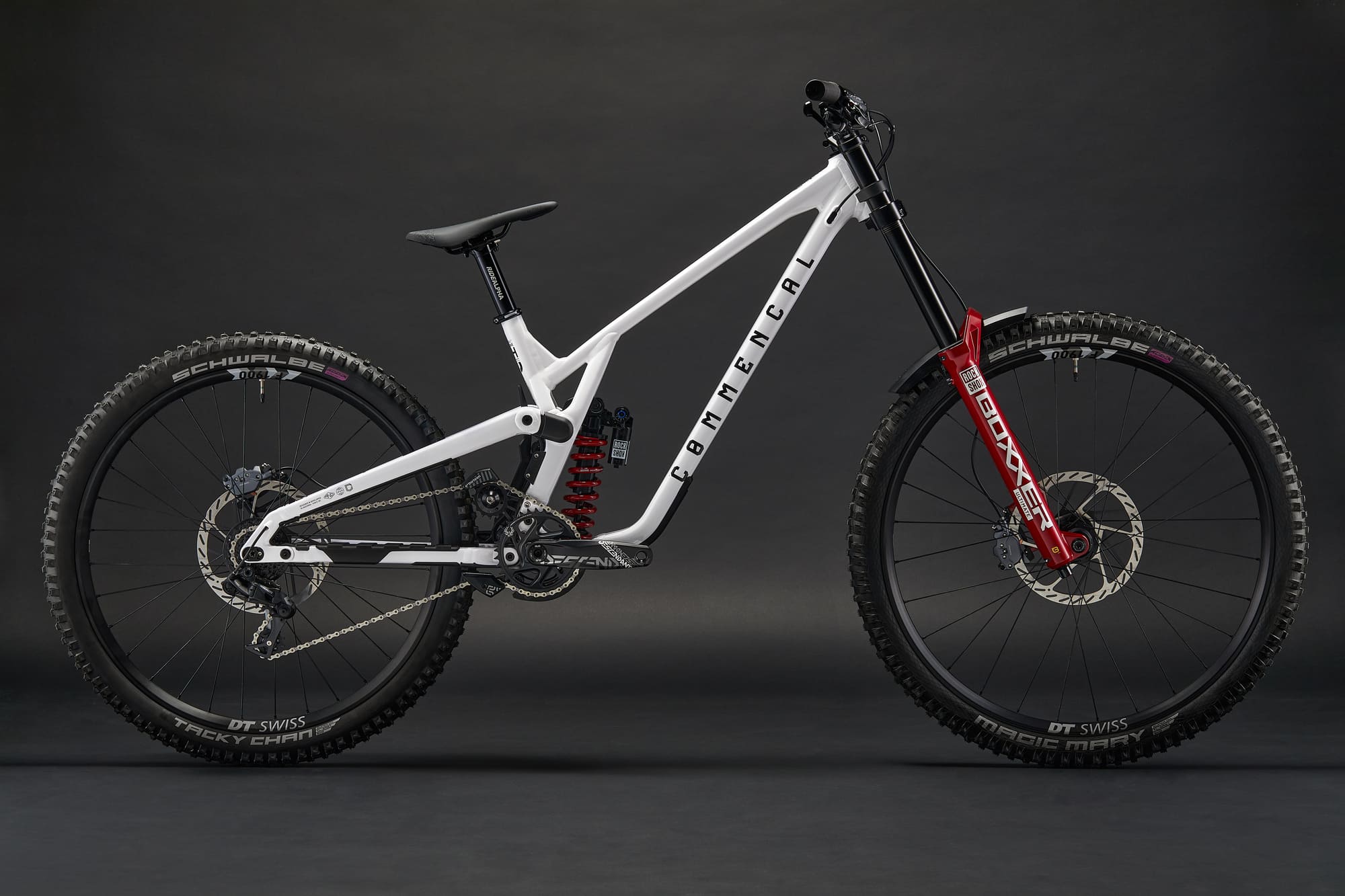

NEW! COMMENCAL SUPREME DH V5 ROCKSHOX PURE WHITE 2026

FRAME MATERIAL: Al 6066 T4, T6

FRAME WEIGHT: 5,3 kg / 11.68 lb

REAR TRAVEL: 220 mm

SHOCK LENGTH / STROKE: 250 mm / 75 mm

PIGGY BACK SHOCK COMPATIBLE: YES

SHOCK BUSHINGS: 30 x 8 mm / 30 x 8 mm

RECOMMENDED / MAX. FORK HEIGHT: 612 mm / 620 mm

HEADSET DIMENSION: -

HEADSET TYPE: ZS56 / ZS56

MAXIMUM TYRE DIMENSION (ETRTO): 65mm - Ø584mm

DISC BRAKE STANDARD:

REAR ROTOR MAX. SIZE: 223 MM

SEATPOST / SEAT CLAMP DIAMETER: 31,6mm / 34,9mm

BOTTOM BRACKET TYPE: Press Fit BB 107mm

ISCG:

FRONT DERAILLEUR TYPE: -

REAR HUB COMPATIBILITY: 157 x 12 mm

SHOCK: ROCKSHOX Vivid Coil Ultimate DH
250 x 75 mm, HSC, LSC, LSR, rebound.
Spring rates: 400lbs on S, 450lbs on M, 500lbs on L, 550lbs on XL

FORK: ROCKSHOX Boxxer Ultimate, 200 mm travel
29'', Charger 3 damper, HSC, LSC, HSR, LSR, Boost (20 x 110 mm), 52 mm offset

HEADSET: ZS56 / ZS56

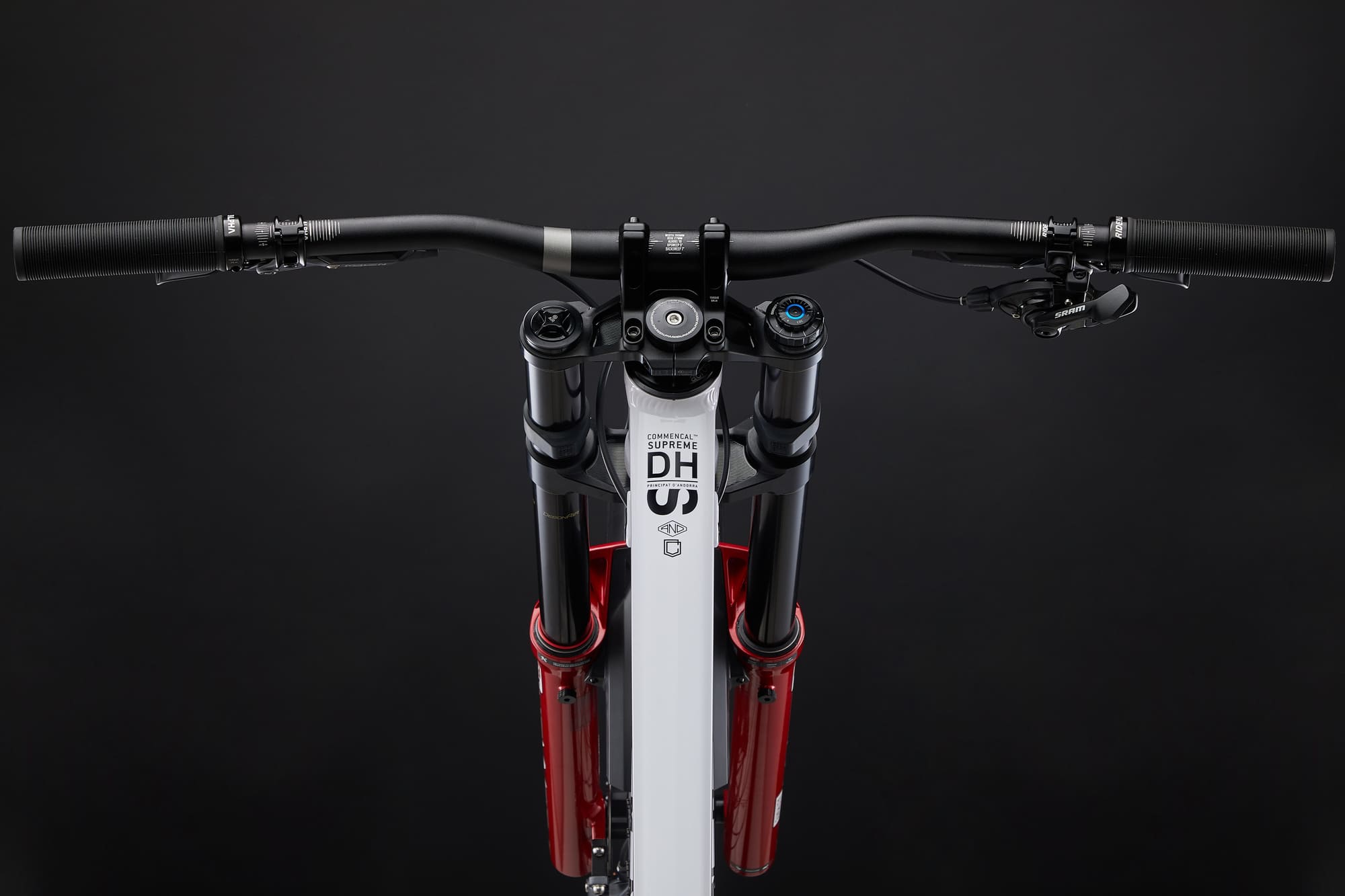

STEM: RIDE ALPHA DH
40 mm extension, 31.8 mm

BAR: RIDE ALPHA
31.8 mm, 780 mm on S/M/L, 800 mm on XL, rise 27

GRIPS: RIDE ALPHA Mushroom
132 mm, single clamp, black

BRAKES: SRAM Maven Bronze, 4 pistons, sintered pads
Rotors: SRAM HS2 220 mm, 6-bolts, 2.0 mm width

SHIFTERS: SRAM GX DH
7s

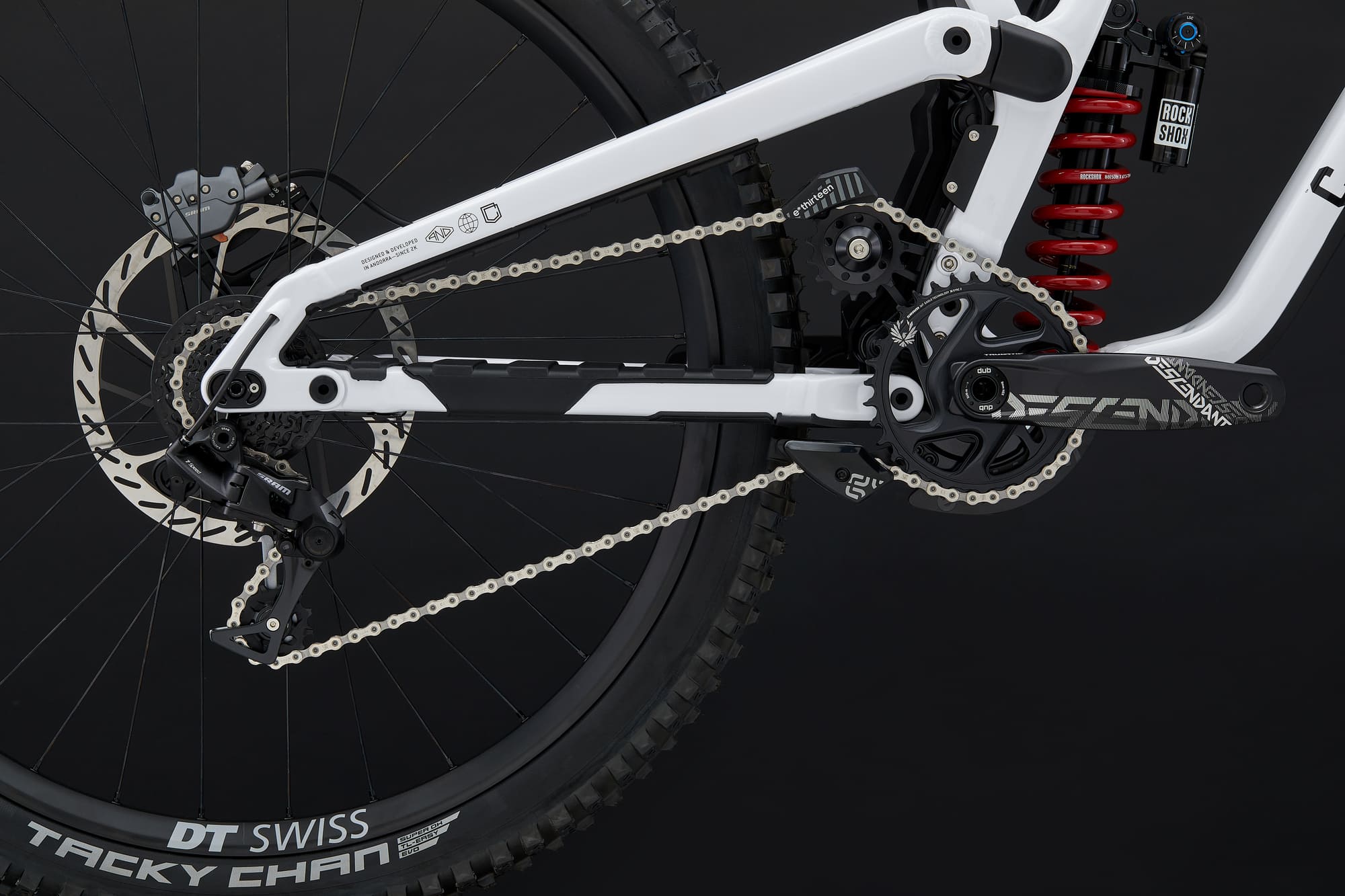

CHAIN GUIDE: ISCG 05 lower - Custom upper idler guide

REAR MECH: SRAM GX Eagle 7s

BOTTOM BRACKET: SRAM DUB
Pressfit

CRANKSET: SRAM Descendant DH, 165 mm crank arms, DUB
Chainring: SRAM Descendant DH, 34t

CHAIN: SRAM PC-1130
11s

CASSETTE: SRAM PG-720 DH
7s, 11-25t

RIMS: DT SWISS F1900 Classic
Rear: 27.5'', 32h, 30 mm inner width, 12 x 157 mm - Front: 29'', 32h, 30 mm inner width, 20 x 110 mm

HUBS: Included with wheelset

SPOKES/NIPPLES: Included with wheelset

TYRES: Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 27.5''x2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29''x2.4", Super DH, Addix Ultra Soft, Tubeless Easy

SEATPOST:
RIDE ALPHA
31.6 mm, 250 mm

SADDLE: FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails, Team edition

BICYCLE TYPE: Downhill Racing

FRAME: SUPREME DH V5, 220 mm travel
29/27.5'', Alloy 6066, triple butted tubes, T4, T6.

WEIGHT: 18,7 kgs - 41,22 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED: NO

ACCESSORIES: Chainstay protector, seatstay protector, fork bumpers, downtube protector, FOX 40 fender
