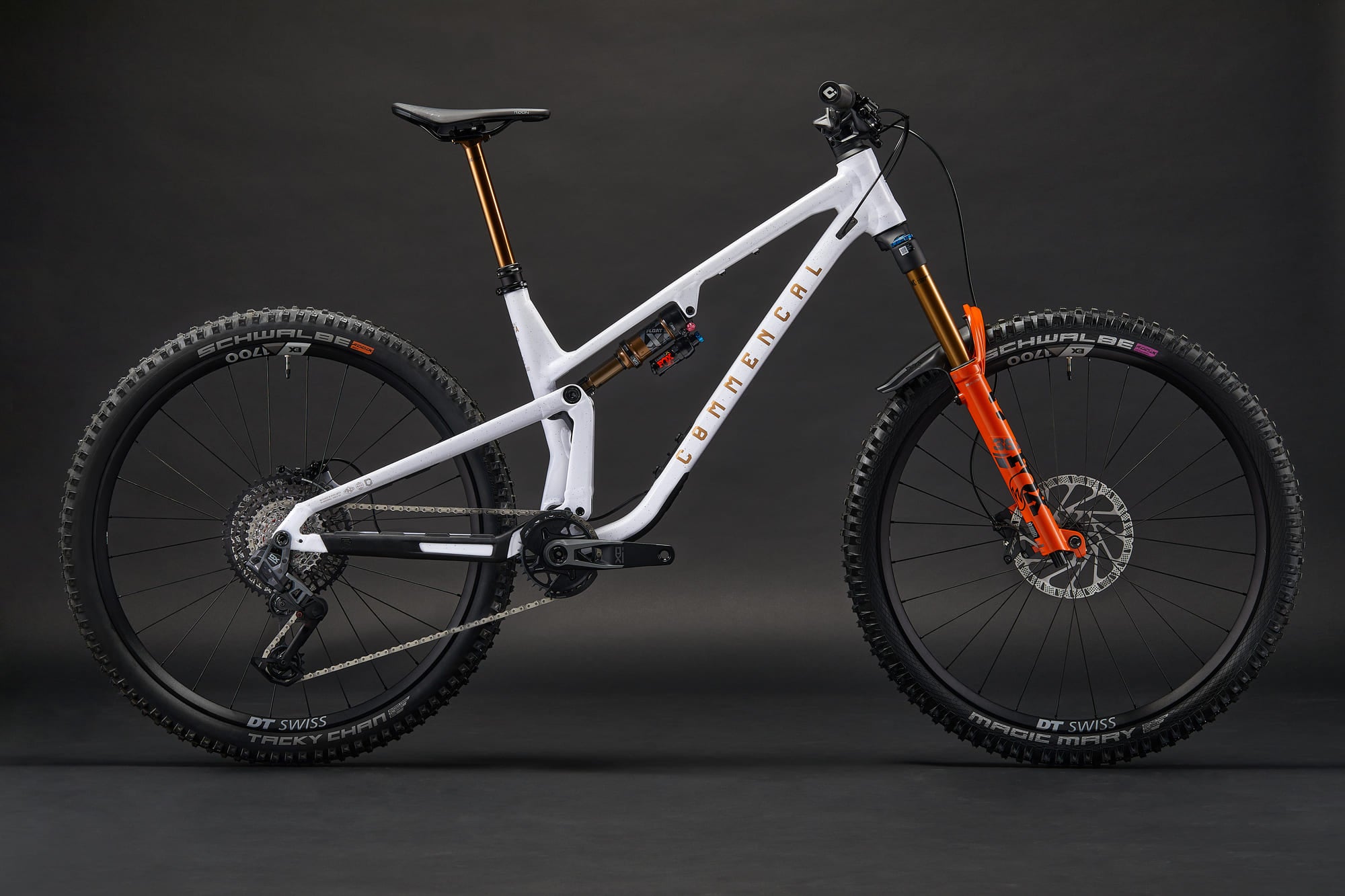

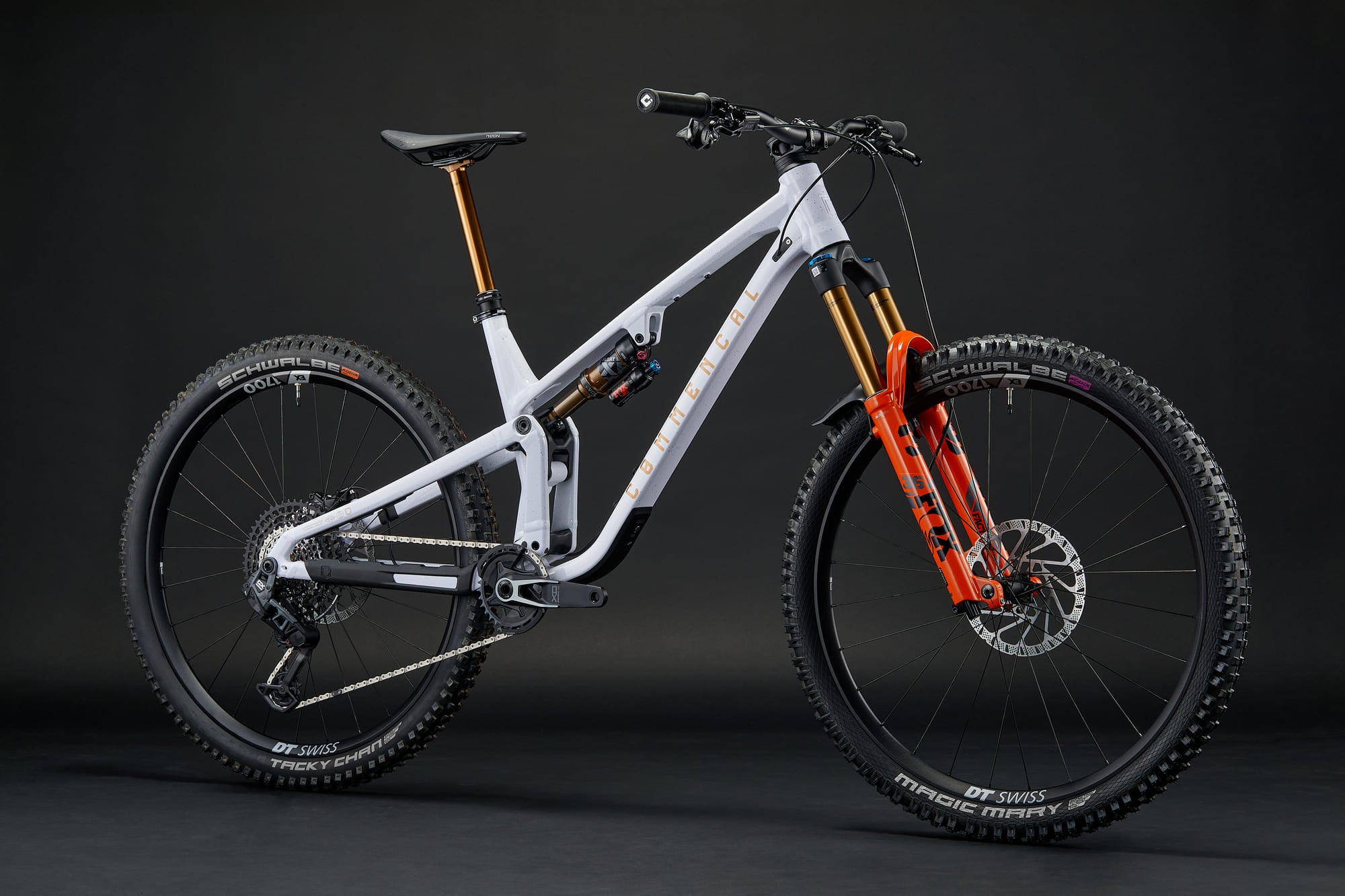

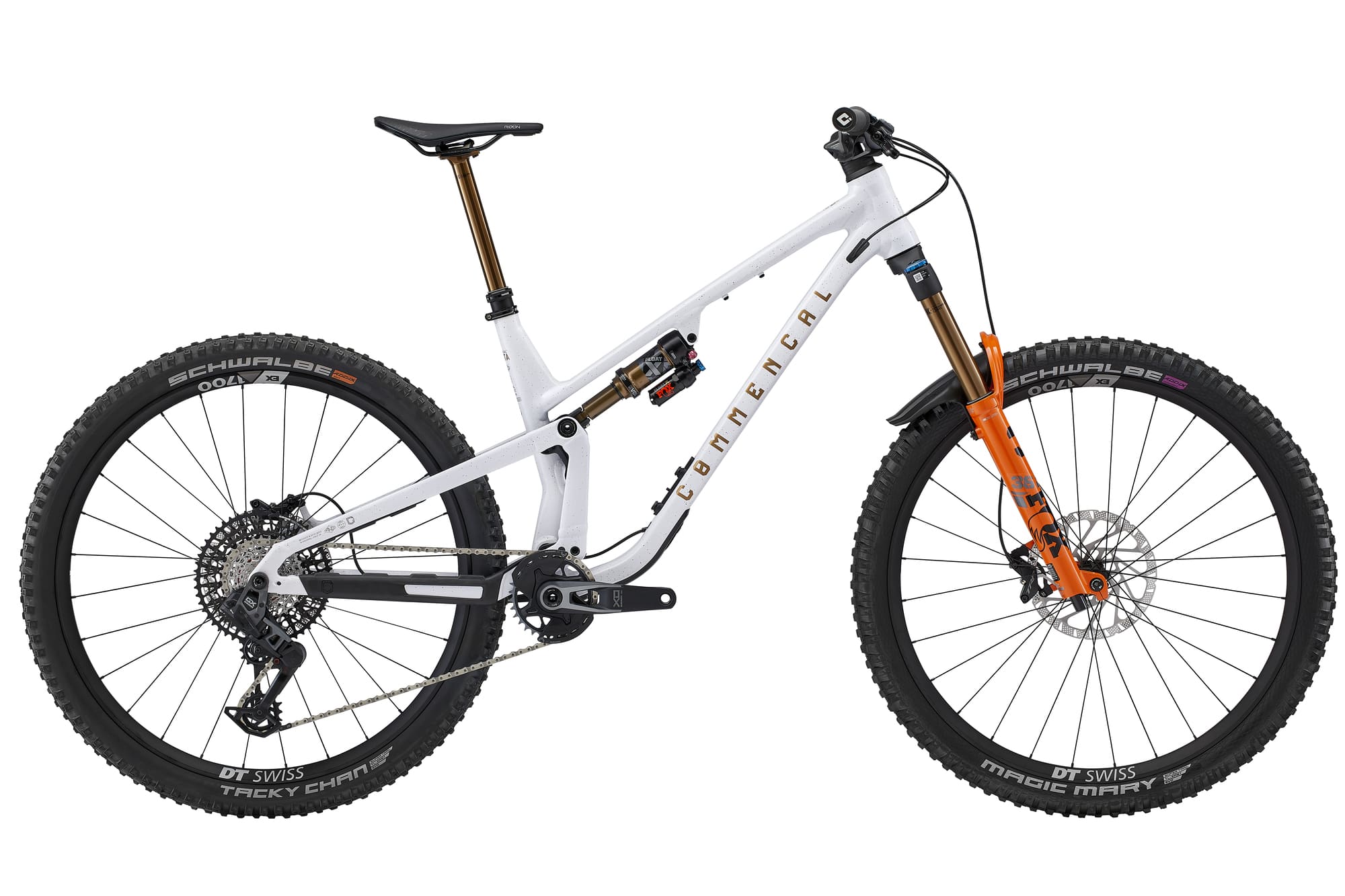

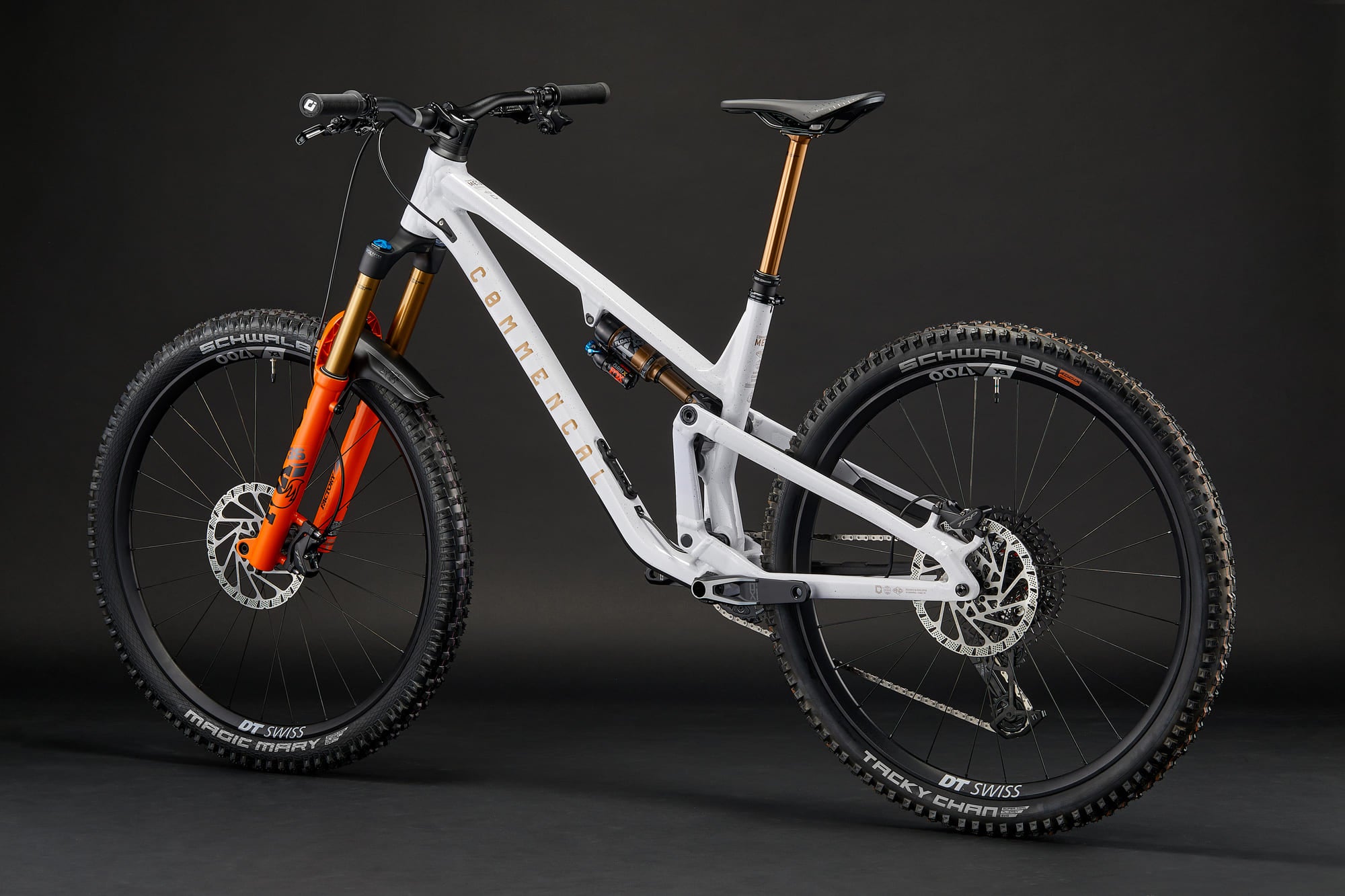

COMMENCAL META V5 SIGNATURE GLITTERY WHITE 2025

FRAME MATERIAL: AL 6061 T4, T6, AL 6066 T4, T6

FRAME WEIGHT: 4,06 kg / 8,95 lb

REAR TRAVEL: 150 mm

SHOCK LENGTH / STROKE: 210 x 55 mm

PIGGY BACK SHOCK COMPATIBLE: YES

SHOCK BUSHINGS: 20x10mm / no bushing needed on clevis

RECOMMENDED / MAX. FORK HEIGHT: 571mm / 586mm

HEADSET DIMENSION: TAPERED 1-1/8" / 1-1/2"

HEADSET TYPE: ZS56 / ZS56

MAXIMUM TYRE DIMENSION (ETRTO): 65mm - Ø622mm

DISC BRAKE STANDARD: POSTMOUNT 200 MM

REAR ROTOR MAX. SIZE: 223 MM

SEATPOST / SEAT CLAMP DIAMETER: 34,9 MM / 38,5 MM

BOTTOM BRACKET TYPE: PRESS FIT BB 92

ISCG: ISCG 05

FRONT DERAILLEUR TYPE: NO

REAR HUB COMPATIBILITY: 148 X 12 MM

SHOCK: FOX Float X Factory
210 x 55 mm, LSC, LSR, 2-postion adjustment

FORK: FOX 36 Factory, 160 mm travel
29", Grip X2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 1 Token

HEADSET: ACROS ZS56/ZS56
Alloy cups, sealed bearings

STEM: RIDE ALPHA 40
40 mm extension, 31.8 mm

BAR: RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS: ODI Longneck
Soft pro compound, single clamp, black

BRAKES: TRP DH-R EVO PRO, 4 pistons, resin pads
Rotors: TRP R2, 203 mm, 6-bolt, 2.3 mm

SHIFTERS: SRAM GX Eagle T-Type
12s

CHAIN GUIDE: ISCG 05 lower - Custom upper guide

REAR MECH: SRAM GX Eagle T-Type
12s

BOTTOM BRACKET: SRAM DUB WIDE
Pressfit

CRANKSET: SRAM X0 Eagle T-Type, 170 mm crank arms, DUB
Chainring: SRAM X0 Eagle T-Type, 32t

CHAIN: SRAM GX Eagle T-Type
12s

CASSETTE: SRAM XG 1275 Eagle
12s, 10-52t

RIMS: DT SWISS EX1700 29''
29'', 28h, 30 mm inner width

HUBS: DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, SRAM XD, 54t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

SPOKES/NIPPLES: DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

TYRES: Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 29"x2.4", Evo, Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Evo, Super Trail, Addix Ultra Soft, Tubeless Easy

SEATPOST: FOX Transfer Factory
34.9 mm, travel: 150 mm on S, 180 mm on M and 210 mm on L/XL, 1x lever + seat tube adaptor to 38.5 mm

SADDLE: FIZIK Terra Ridon X5
145 mm width, S-Alloy Mobius rails

BICYCLE TYPE: Enduro / All Mountain

FRAME: META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

WEIGHT: 5,9 kgs - 35,05 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED: NO

ACCESSORIES: Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender, Fidlock bases
