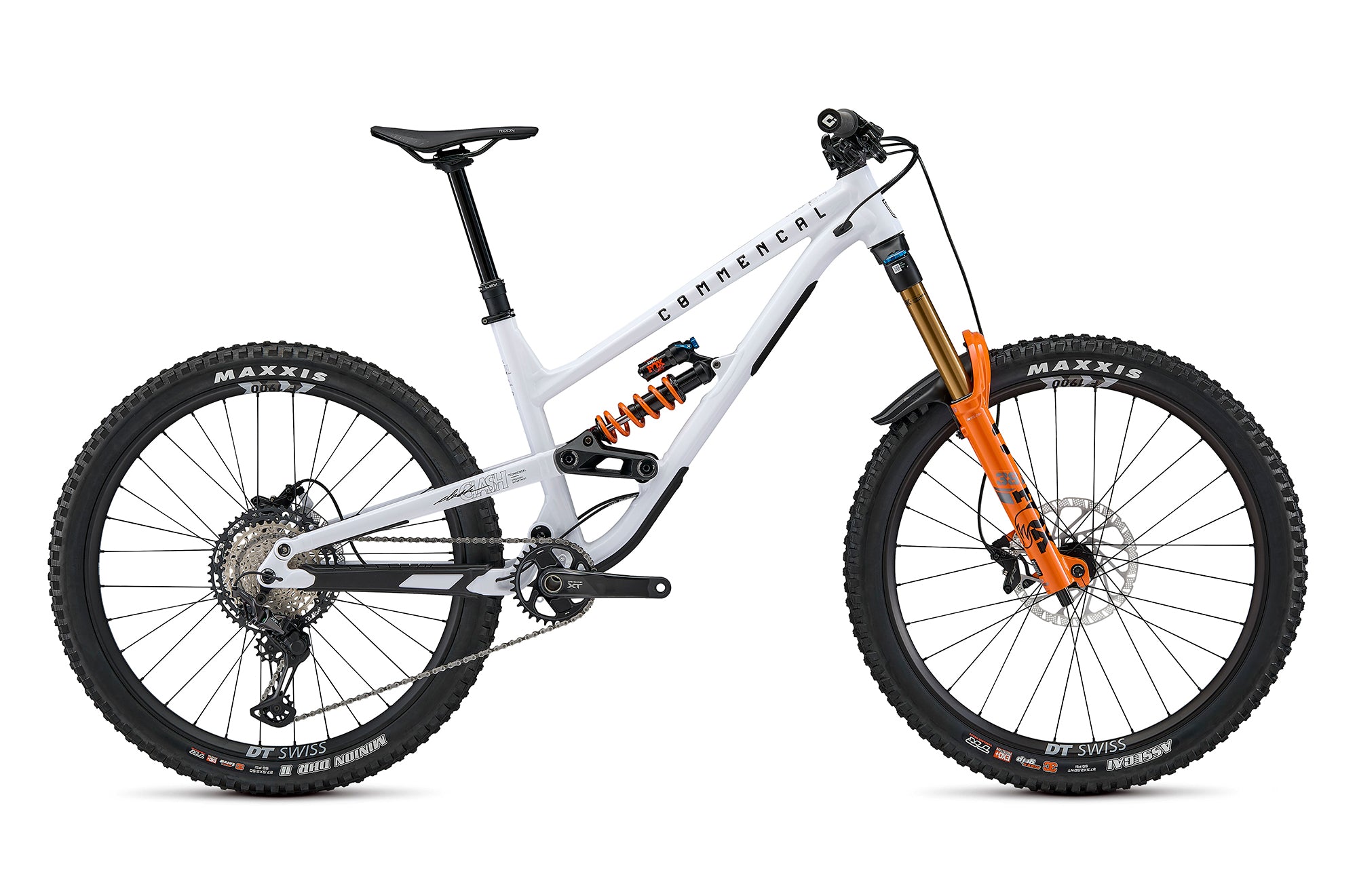

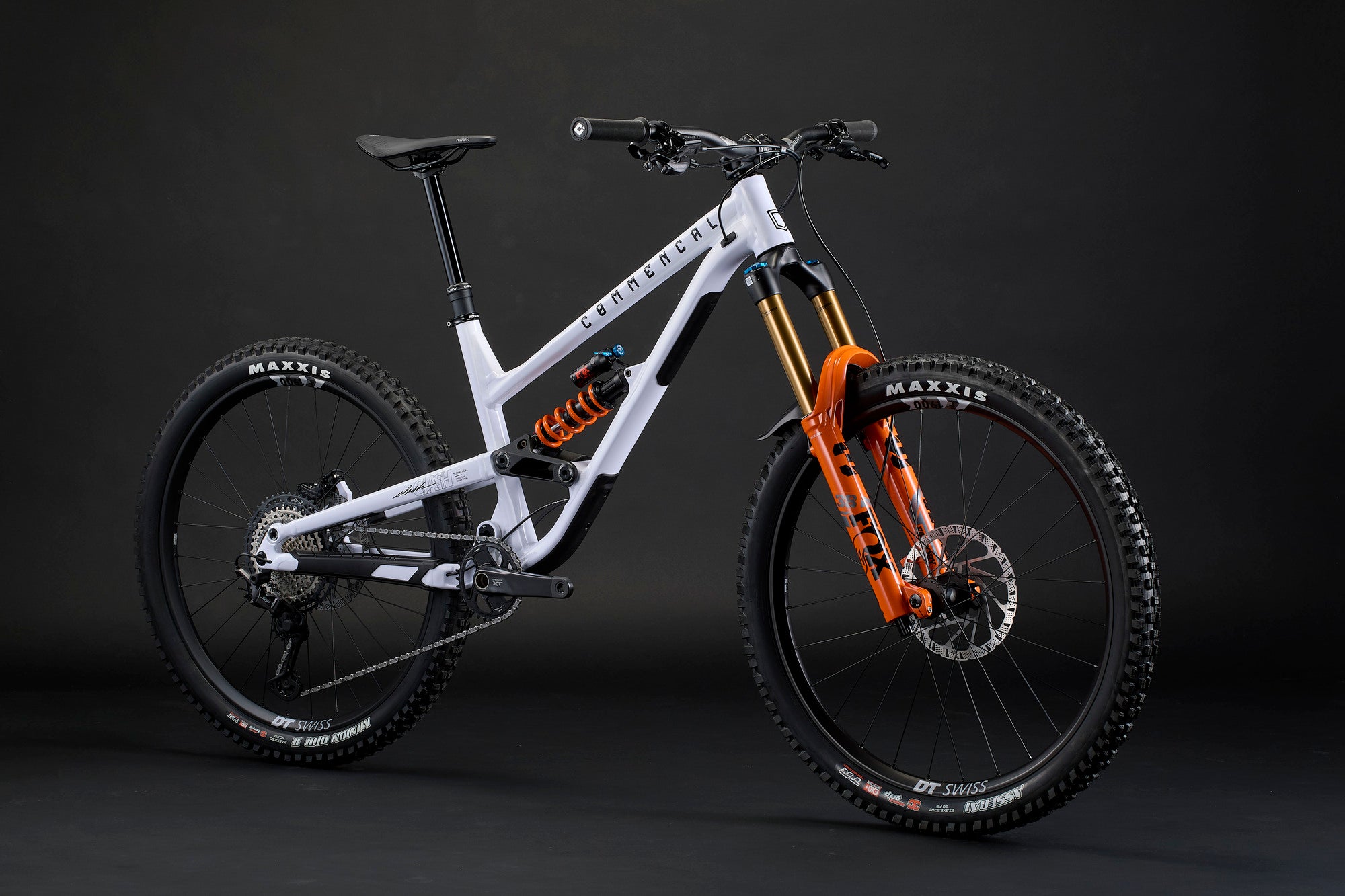

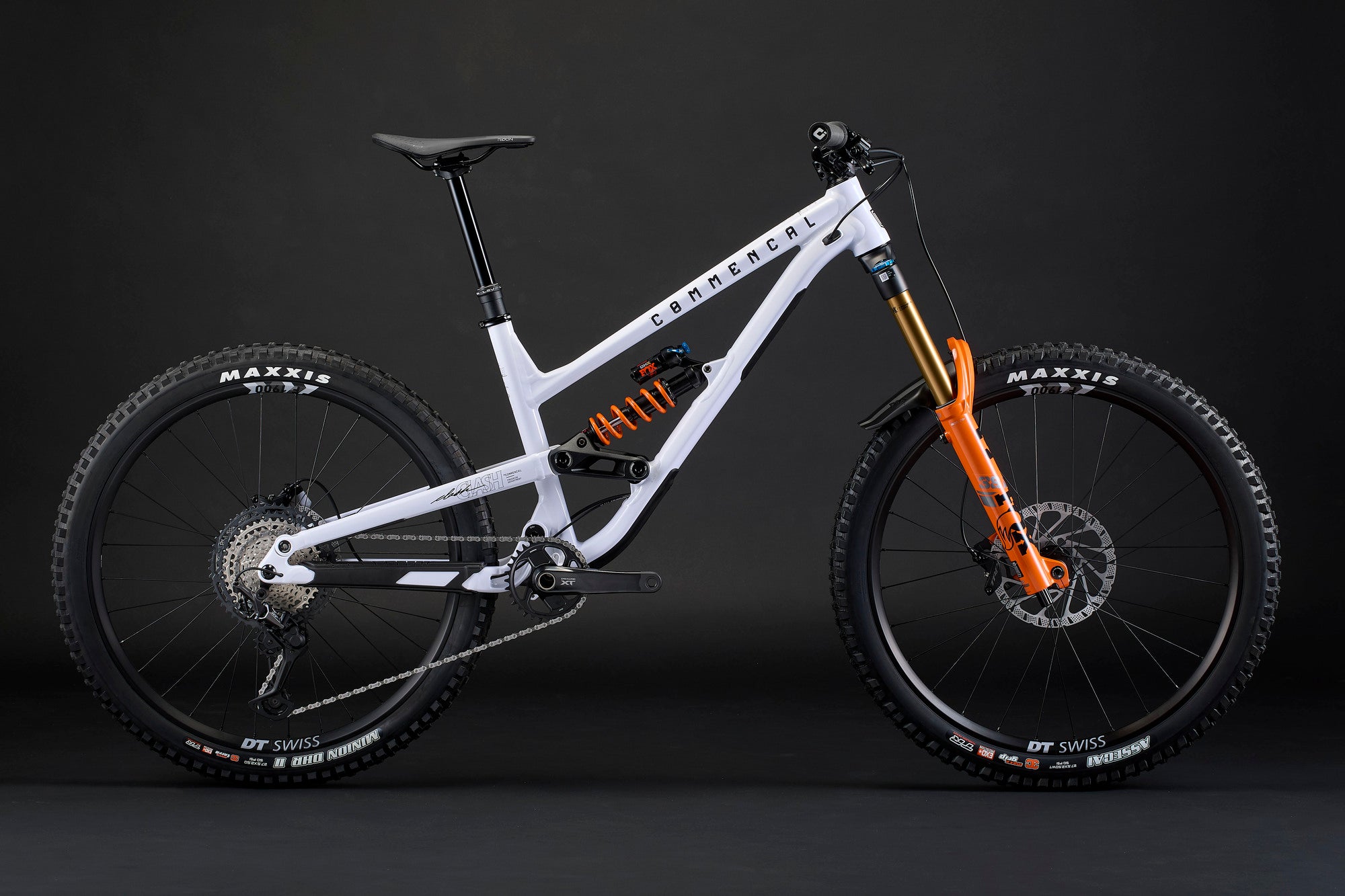

COMMENCAL CLASH SIGNATURE PURE WHITE 2026

FRAME MATERIAL: AL 6069 T4, T6

FRAME WEIGHT: 4,1 kg / 9.03 lb with accessories

REAR TRAVEL: Adjustable via flip chip: 170 mm on Grip position / 155 mm on Dynamic position

SHOCK LENGTH / STROKE: 230 x 65 mm

PIGGY BACK SHOCK COMPATIBLE: Yes

SHOCK BUSHINGS: 20 x 8 mm on body - 30 x 10 mm on shaft

RECOMMENDED / MAX. FORK HEIGHT: 572 MM / 586 MM

HEADSET DIMENSION: Tapered

HEADSET TYPE: ZS44 / ZS56

MAXIMUM TYRE DIMENSION (ETRTO): 27,5" - 65 mm

DISC BRAKE STANDARD: Postmount 200 mm

REAR ROTOR MAX. SIZE: 223 MM

SEATPOST / SEAT CLAMP DIAMETER: 34,9 MM / 38,5 MM

BOTTOM BRACKET TYPE: Press Fit BB 92mm

ISCG: ISCG05

FRONT DERAILLEUR TYPE: NO

REAR HUB COMPATIBILITY: 148 x 12 mm

SHOCK: FOX DHX Factory
230 x 6 5mm, 2-pos lever, rebound, Spring rates : 400lbs on S, 450lbs on M, 500lbs on L, 550lbs on XL.

FORK: FOX 38 Factory, 180 mm
27.5", Grip X2, HSC, LSC, HSR, LSR, Boost (15 x 110), 37 mm offset, 0 Token

HEADSET: ACROS ZS44/ZS56
Alloy cups, sealed bearings

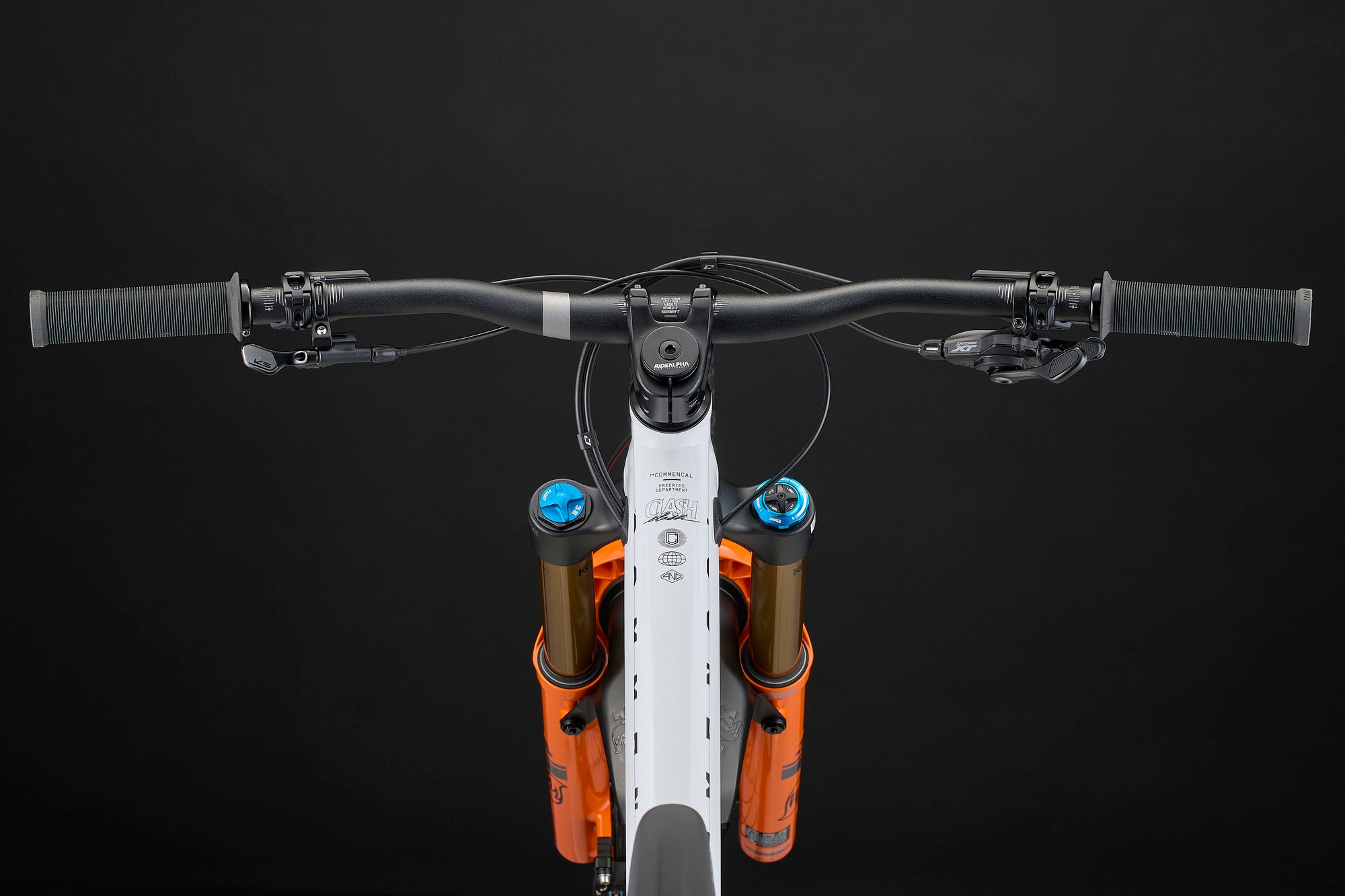

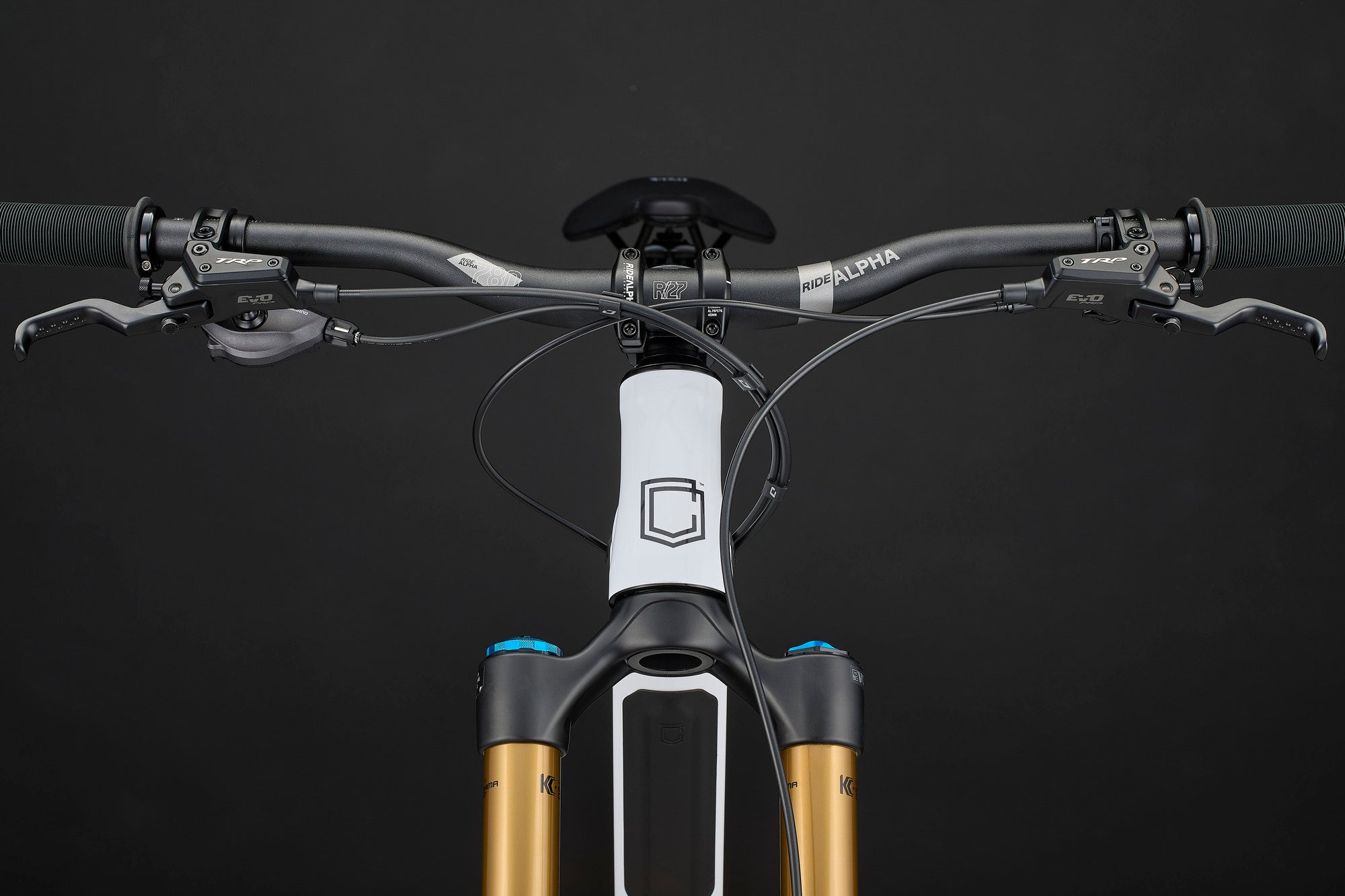

STEM: RIDE ALPHA 40
40 mm extension, 31.8 mm

BAR: RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS: ODI Longneck V2.1
Ultra-soft compound, single clamp, black

BRAKES: TRP DHR EVO PRO, 4 pistons, resin pads
Rotors: TRP R2 203 mm, 6-bolts

SHIFTERS: SHIMANO XT
12s

CHAIN GUIDE: -

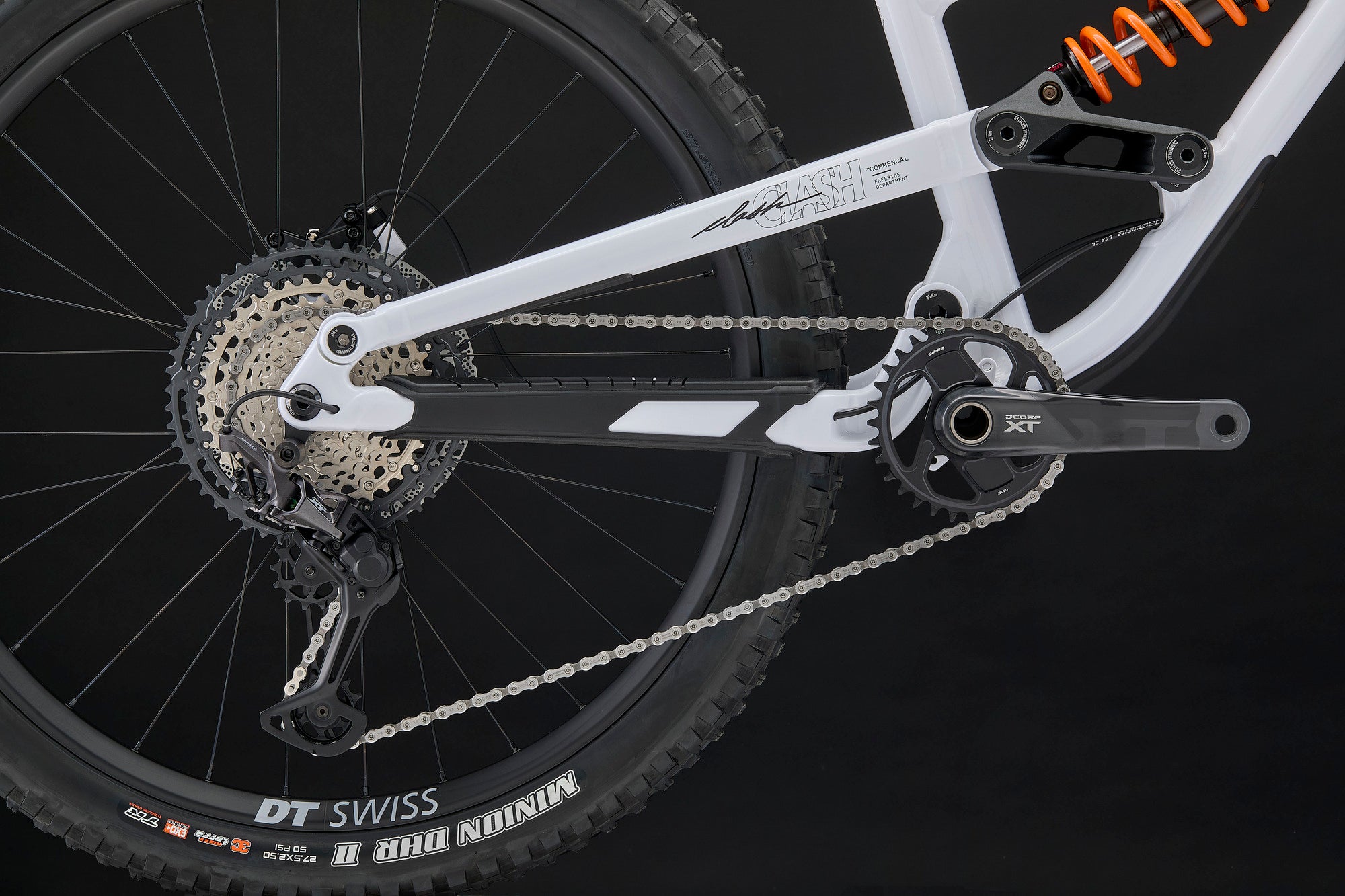

REAR MECH: SHIMANO XT
12s

BOTTOM BRACKET: SHIMANO MT800
Pressfit

CRANKSET: SHIMANO XT, 165 mm crank arms
Chainring: SHIMANO XT, 32t

CHAIN: SHIMANO XT
12s

CASSETTE: SHIMANO XT
12s, 10-51t

RIMS: DT SWISS F1900 Classic
27.5'', 32h, 30 mm inner width

HUBS: DT SWISS 370 Classic LN
Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline - Front: 32h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES: DT SWISS Competition
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

TYRES: Rear: MAXXIS Minion DHR II - Front: MAXXIS Assegai
Rear: 27.5''x2.5'', 3C MaxxTerra, Nexo+ - Front: 27.5''x2.5'', 3C MaxxGrip, Nexo +

SEATPOST: KS Lev Integra
34.9 mm, 125 mm on S, 175 mm on M, 200 mm on L

SADDLE: FIZIK Terra Ridon X5
145 mm, Alloy rails

BICYCLE TYPE: ENDURO / FREERIDE

FRAME: CLASH, 170 mm travel
27.5'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

WEIGHT: 15,8 kg / 34.83 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED: No

ACCESSORIES: Down tube protector, chainstay protector, seatstay protector, shuttle pad, fork fender Fox 38 specific.
