COMMENCAL T.E.M.P.O. T-TYPE CRACKLED BLACK

FRAME MATERIAL: AL-6066 T4, T6

FRAME WEIGHT: 3,44 kg / 7,58 lb

REAR TRAVEL: 125 MM

SHOCK LENGTH / STROKE: 210 X 50 MM

PIGGY BACK SHOCK COMPATIBLE: YES

SHOCK BUSHINGS: 20 X 10 MM / 30 X 10 MM

RECOMMENDED / MAX. FORK HEIGHT: 551 MM / 561 MM

HEADSET DIMENSION:

HEADSET TYPE: ZS56 / ZS56

MAXIMUM TYRE DIMENSION (ETRTO): 64mm - Ø622mm

DISC BRAKE STANDARD: POSTMOUNT 180 MM

REAR ROTOR MAX. SIZE: 200 MM

SEATPOST / SEAT CLAMP DIAMETER: S : 225mm / M : 265mm / L : 285mm / XL : 305mm

BOTTOM BRACKET TYPE: BB92 PRESS FIT

ISCG: No ISCG, custom upper guide

FRONT DERAILLEUR TYPE:

REAR HUB COMPATIBILITY: L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle

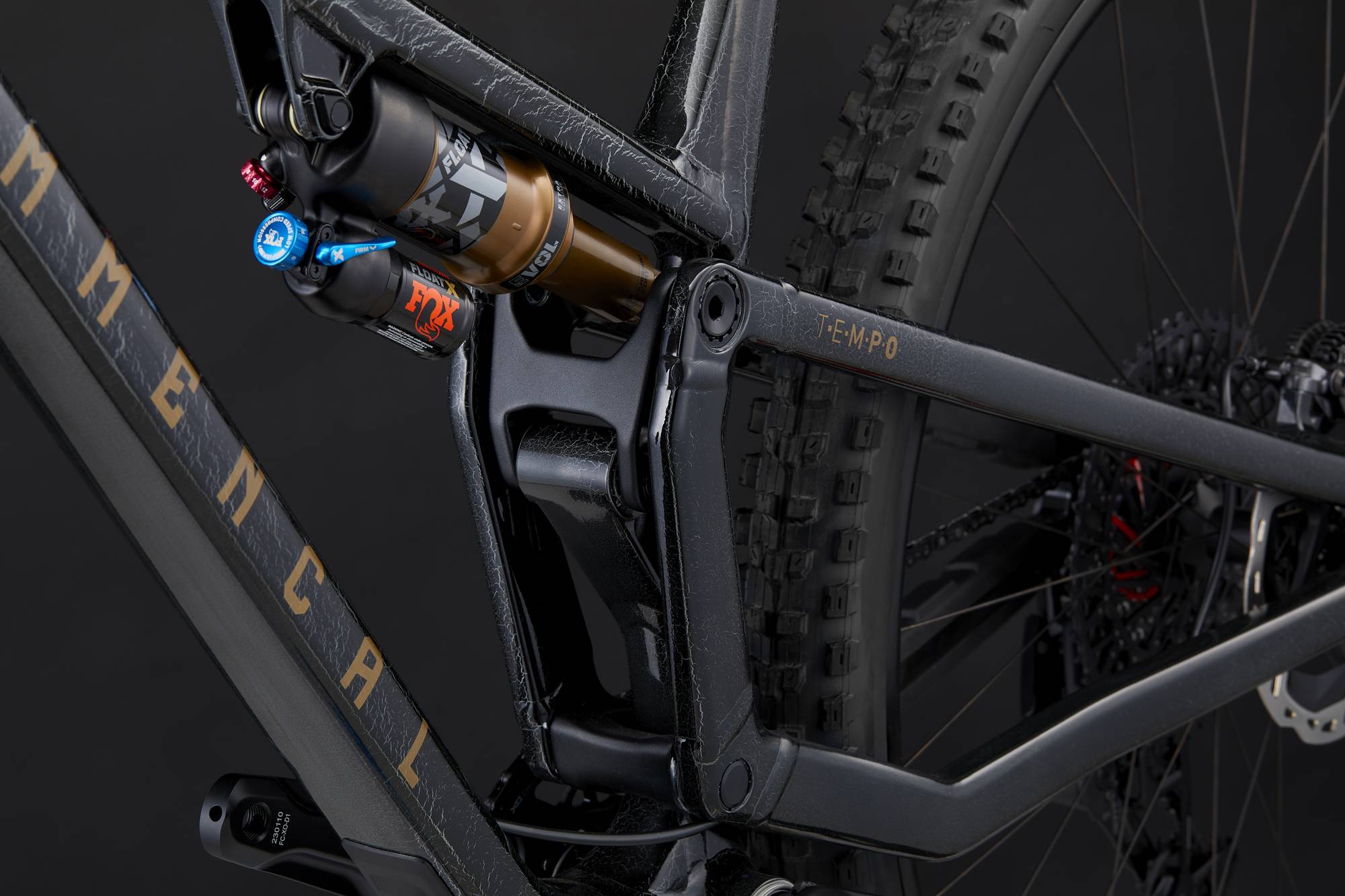

SHOCK: FOX Float X Factory
210 x 50, LSC,LSR, 2-postion adjustment, 0.2 spacer

FORK: FOX 36 Factory, 150 mm travel
29", Float, Grip 2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 51 mm offset, 2 spacers

HEADSET: ACROS ZS56 / ZS56
Alloy cups, sealed bearings, Integrated cable routing

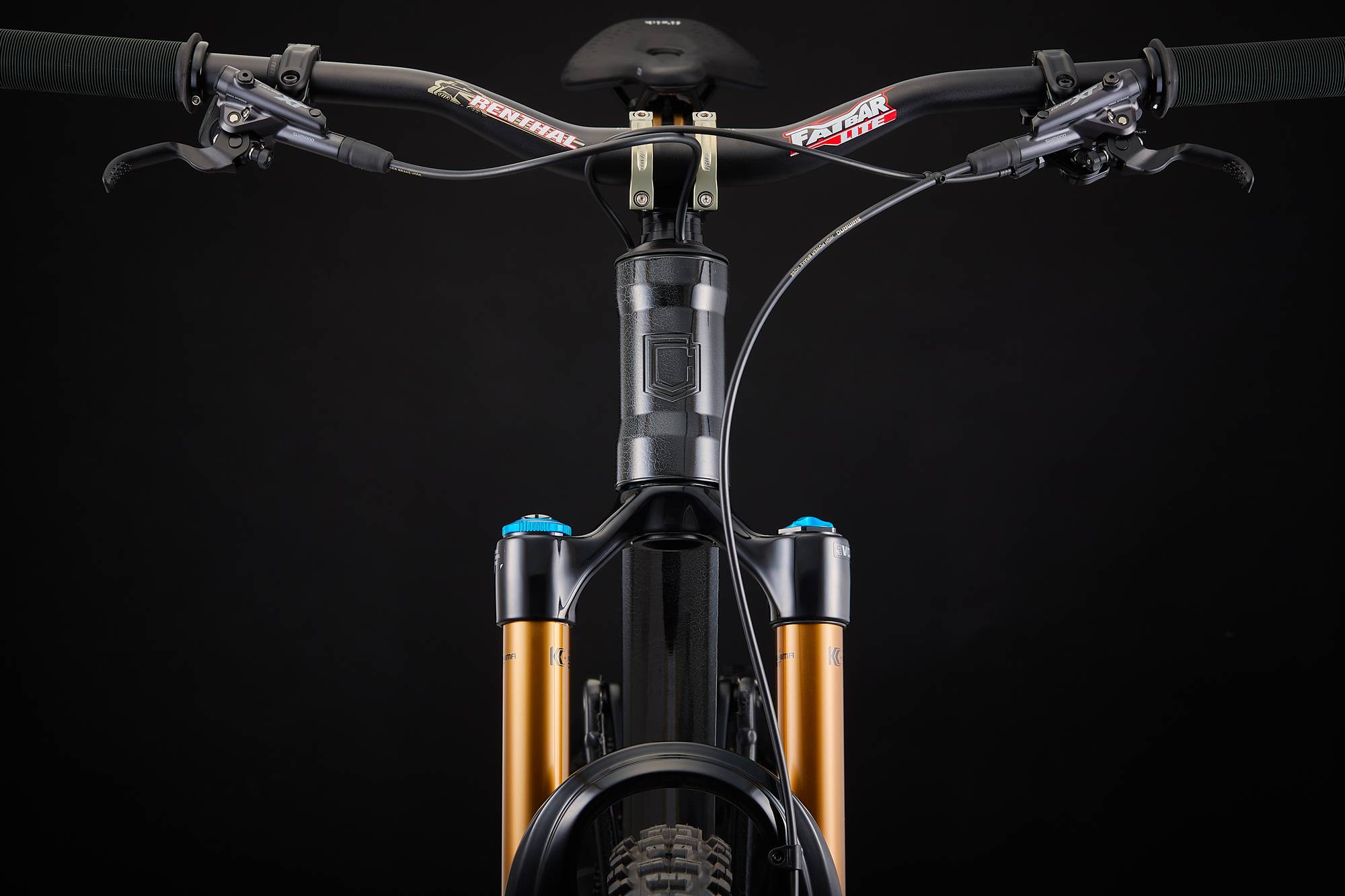

STEM: RENTHAL Apex
40 mm extension, 31,8 mm

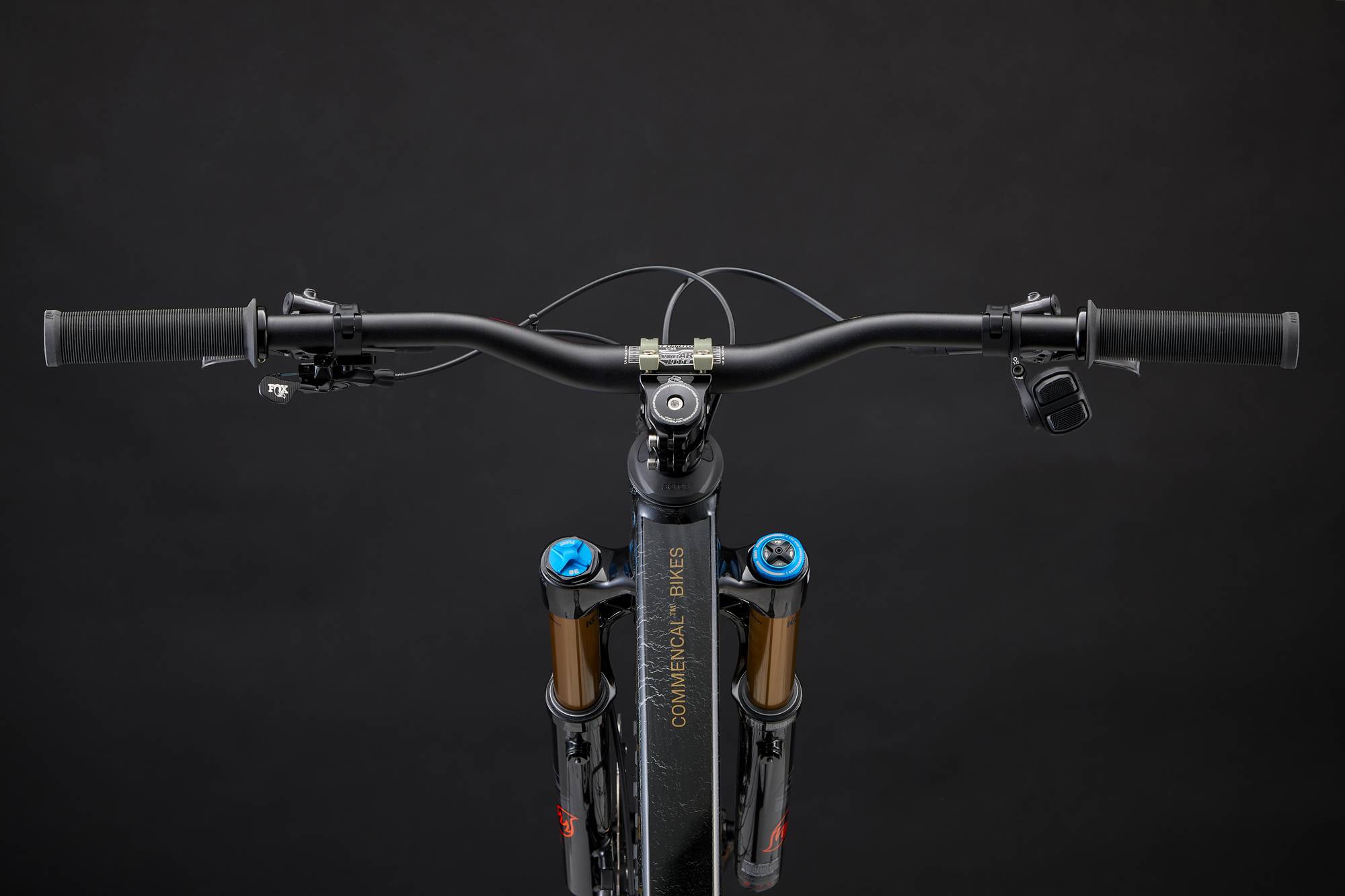

BAR: RENTHAL Fatbar Lite on S/M - RENTHAL Fatbar on L/XL
31.8 mm, 760 mm width, 30 mm rise, Alloy 6061 on S/M - 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061 on L/XL

GRIPS: ODI Longneck
Soft compound, single clamp, black

BRAKES: SHIMANO XT, 2 pistons, I-Spec EV, resin pads
Rotor: SHIMANO RT-MT905 203 / 180 mm, 6-bolt

SHIFTERS: SRAM AXS Pod Controller
12s

CHAIN GUIDE: ISCG 05 lower - Custom upper guide

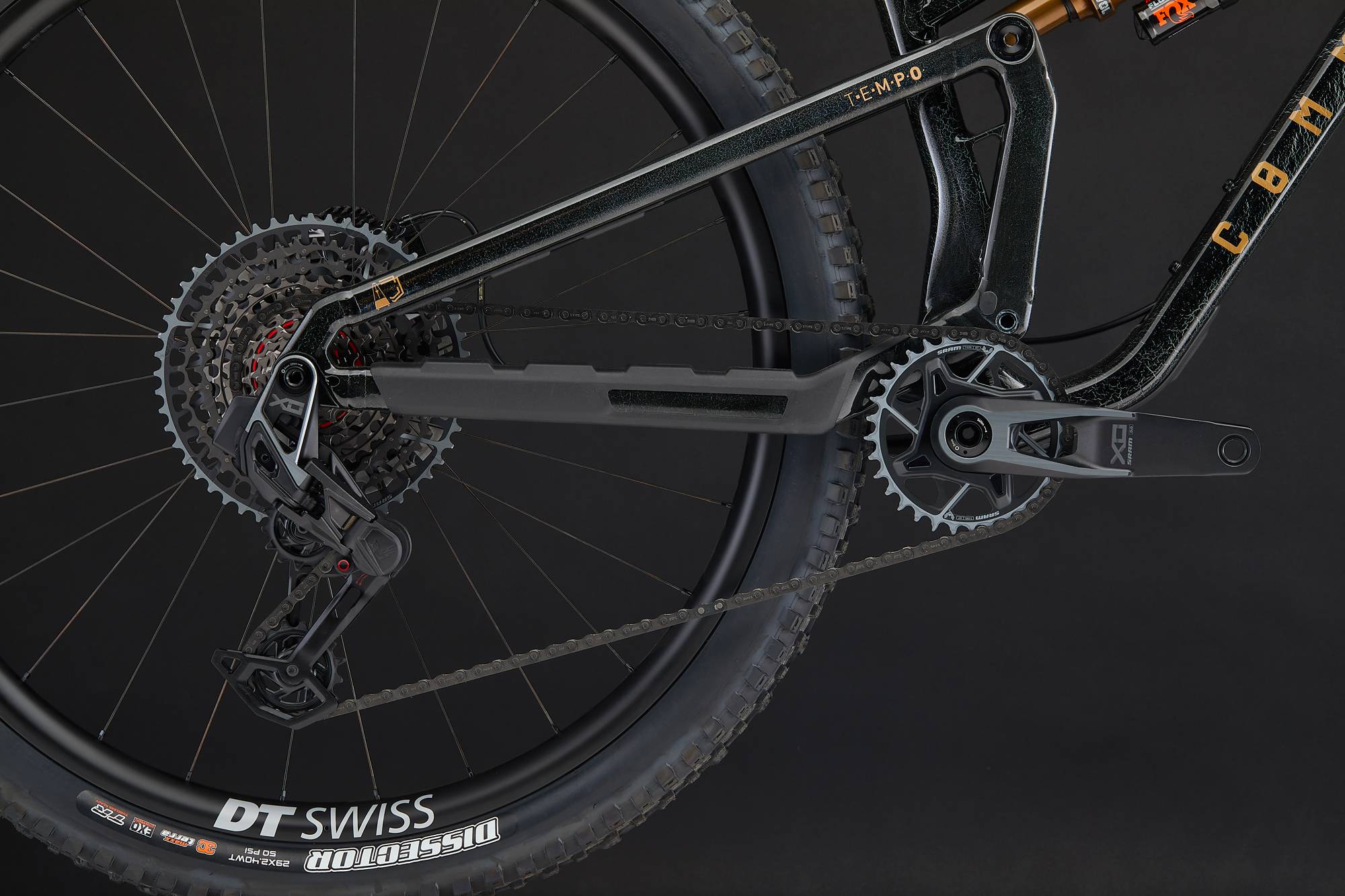

REAR MECH: SRAM X0 Eagle Transmission
12s, AXS

BOTTOM BRACKET: SRAM DUB
Pressfit

CRANKSET: SRAM X0 Eagle Transmission, 170 mm crank arms, DUB
Chainring: SRAM X0 Eagle Transmission, 32t, Narrow-Wide

CHAIN: SRAM X0 Eagle Transmission
12s, Flattop chain

CASSETTE: SRAM X0 Eagle Transmission
CS 1295, 12s, 10-52t

RIMS: DT SWISS XMC 1501
29'', 28h, 30 mm inner width

HUBS: Rear: DT SWISS 240 - Front: DT SWISS 240
Rear: 28h, sealed bearings, 12 x 148 mm, Ratchet EXP 36, Sram XD freehub body - Front: 28h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES: DT SWISS Competition Race
Straightpull, 2.0 1.6-2.0mm, double butted, stainless, with ProLock, black

TYRES: Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.4" WT, 3C MaxxTerra, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready

SEATPOST: FOX Transfer Factory
31.6 mm, 150 mm on S, 175 mm on M/L, 200 mm on XL

SADDLE: FIZIK Terra Ridon X5
145 mm width, S-alloy rails

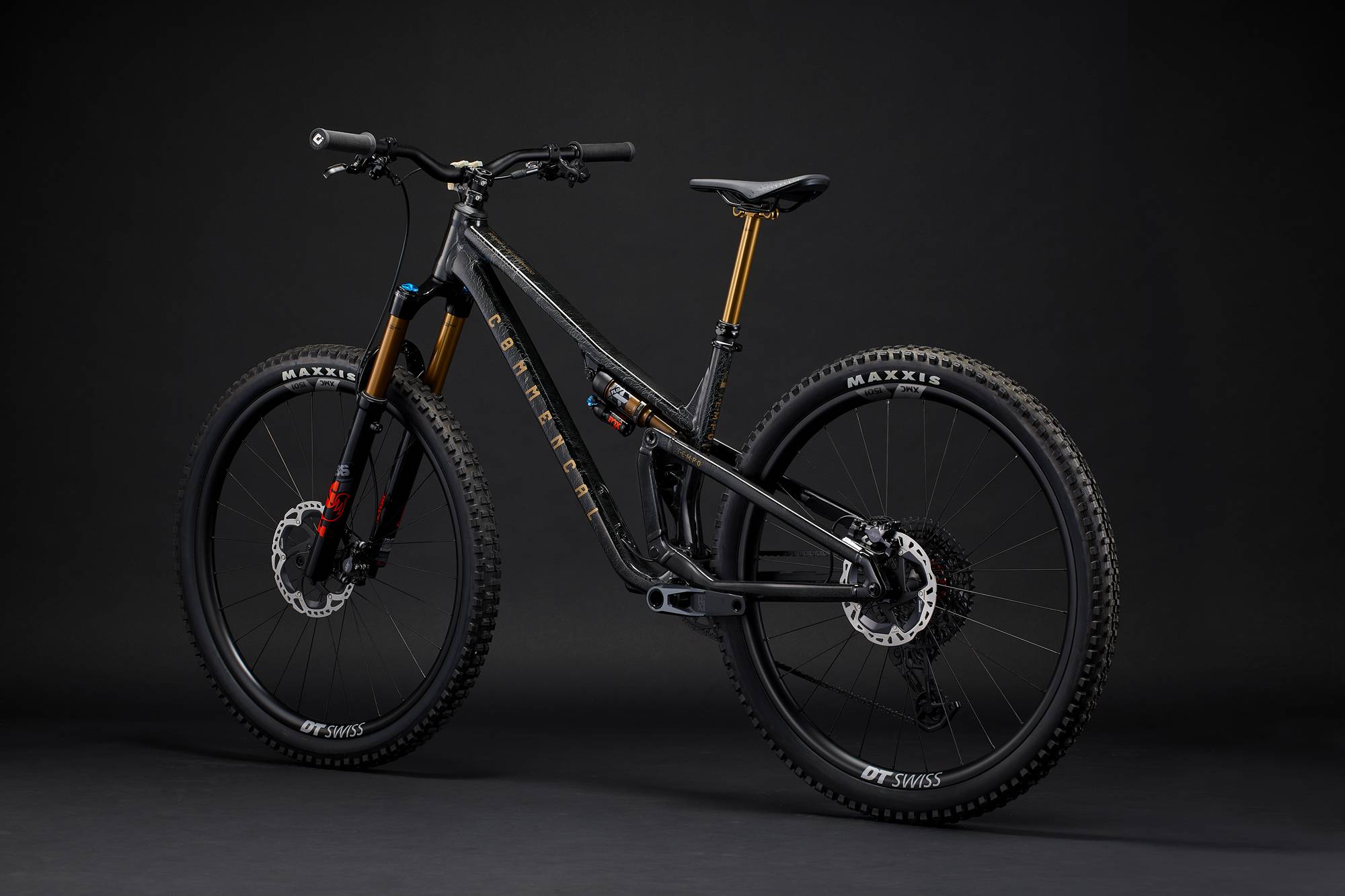

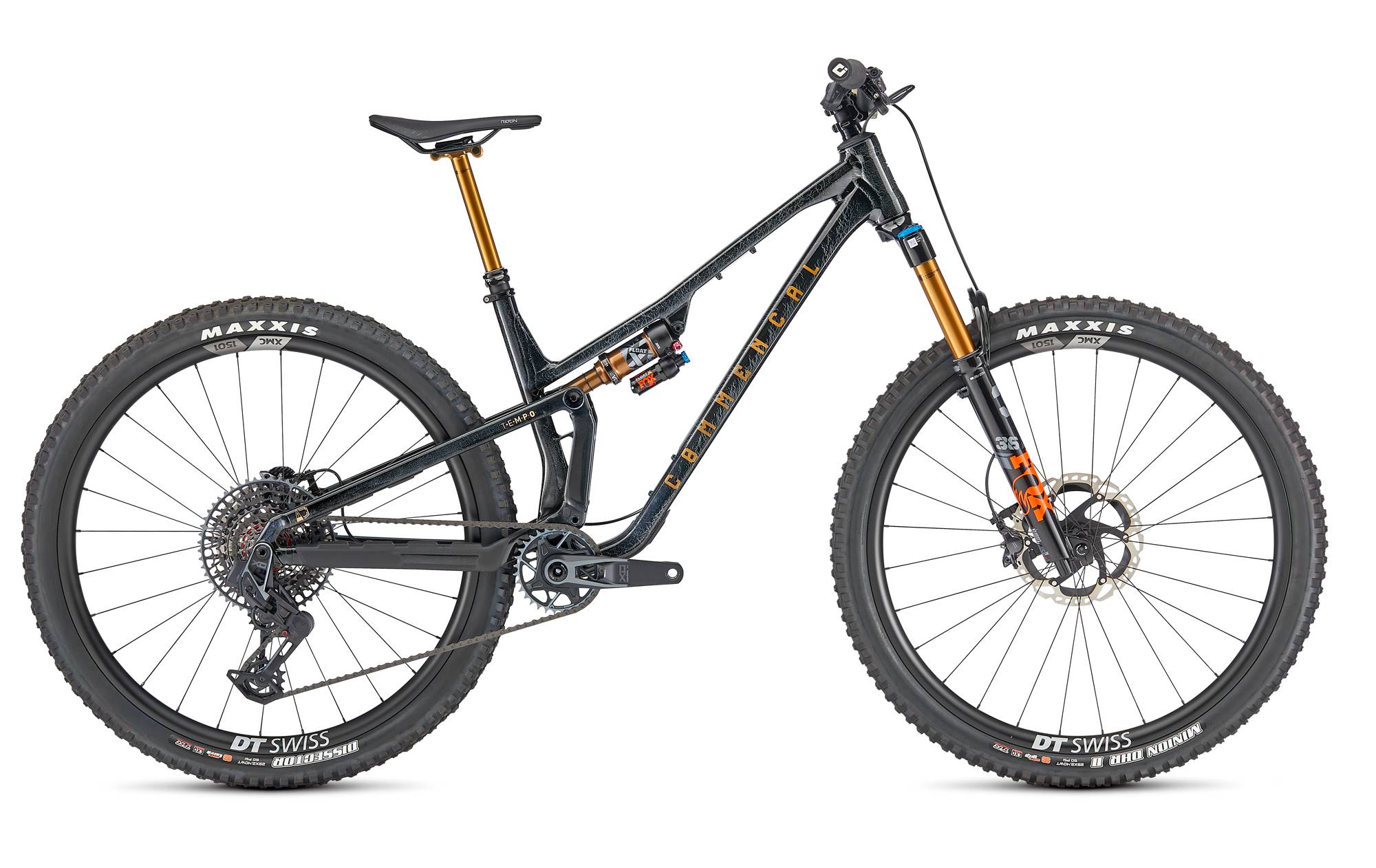

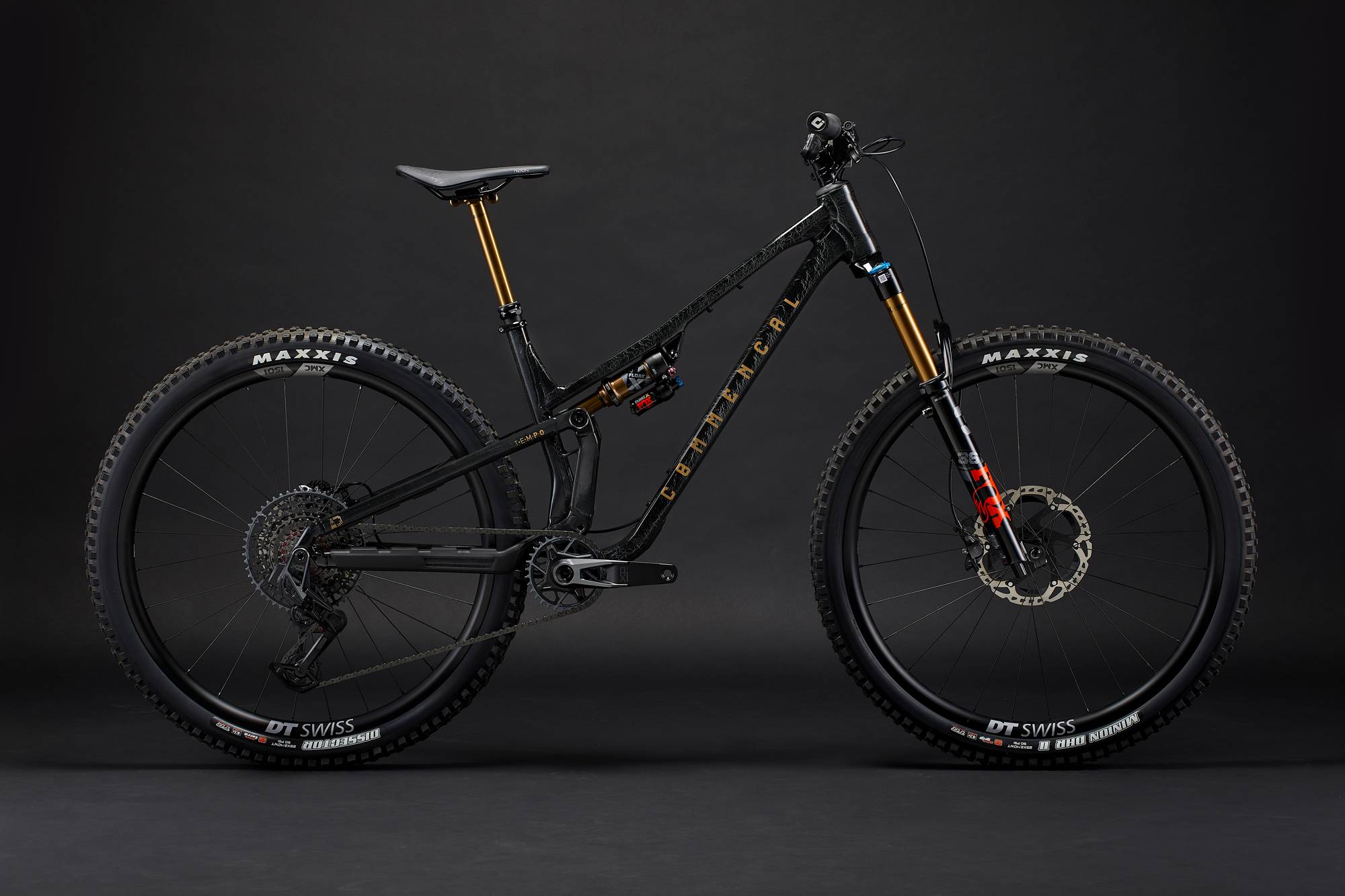

BICYCLE TYPE: TRAIL

FRAME: T.E.M.P.O., 125 mm travel
29'', Alloy 6069, triple butted tubes, T4, T6.

WEIGHT: 14.3 kg / 31.52 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED: NO

ACCESSORIES: Down tube protector, chainstay protector, seatstay protector, SRAM PowerPack
