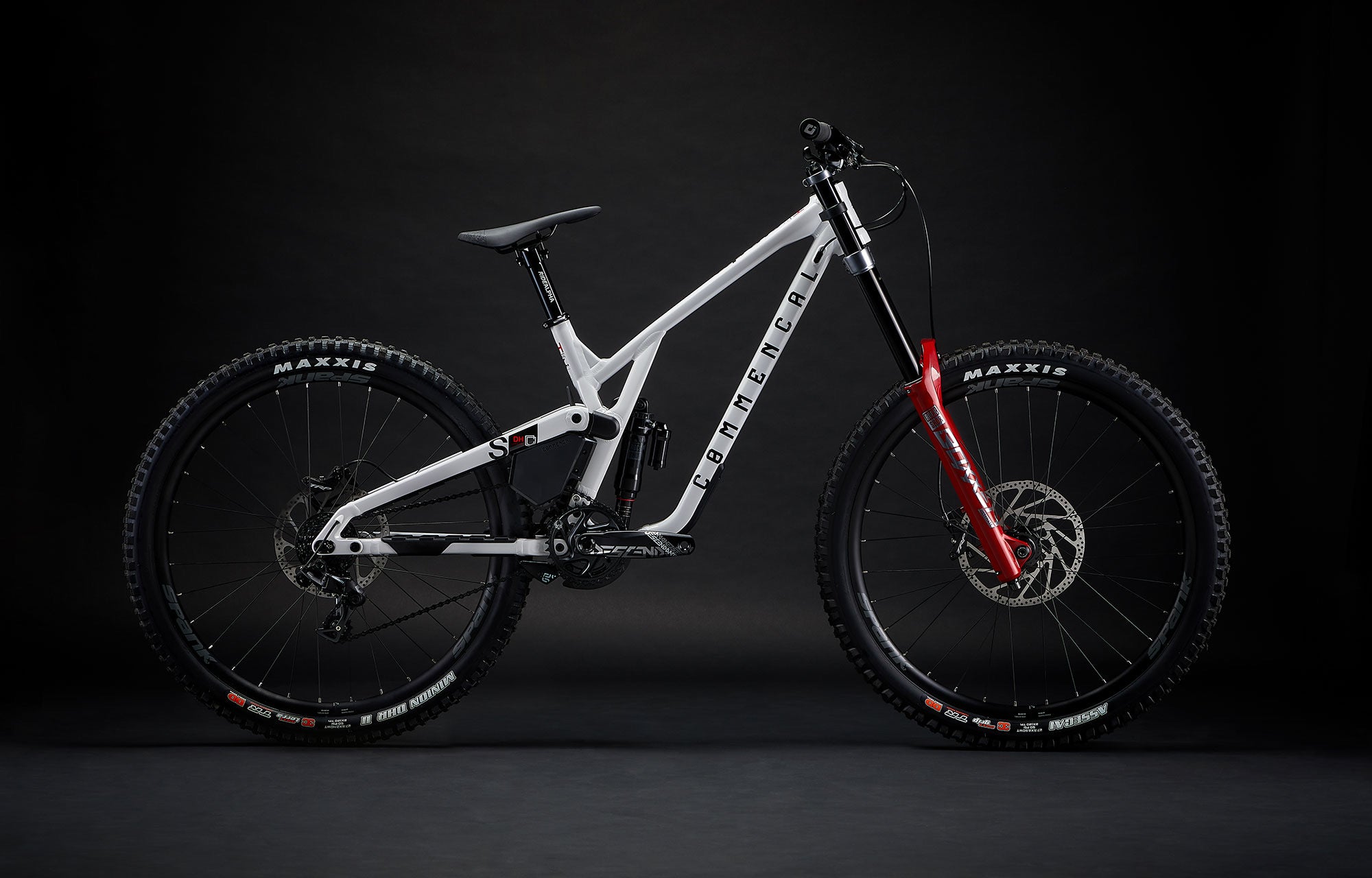

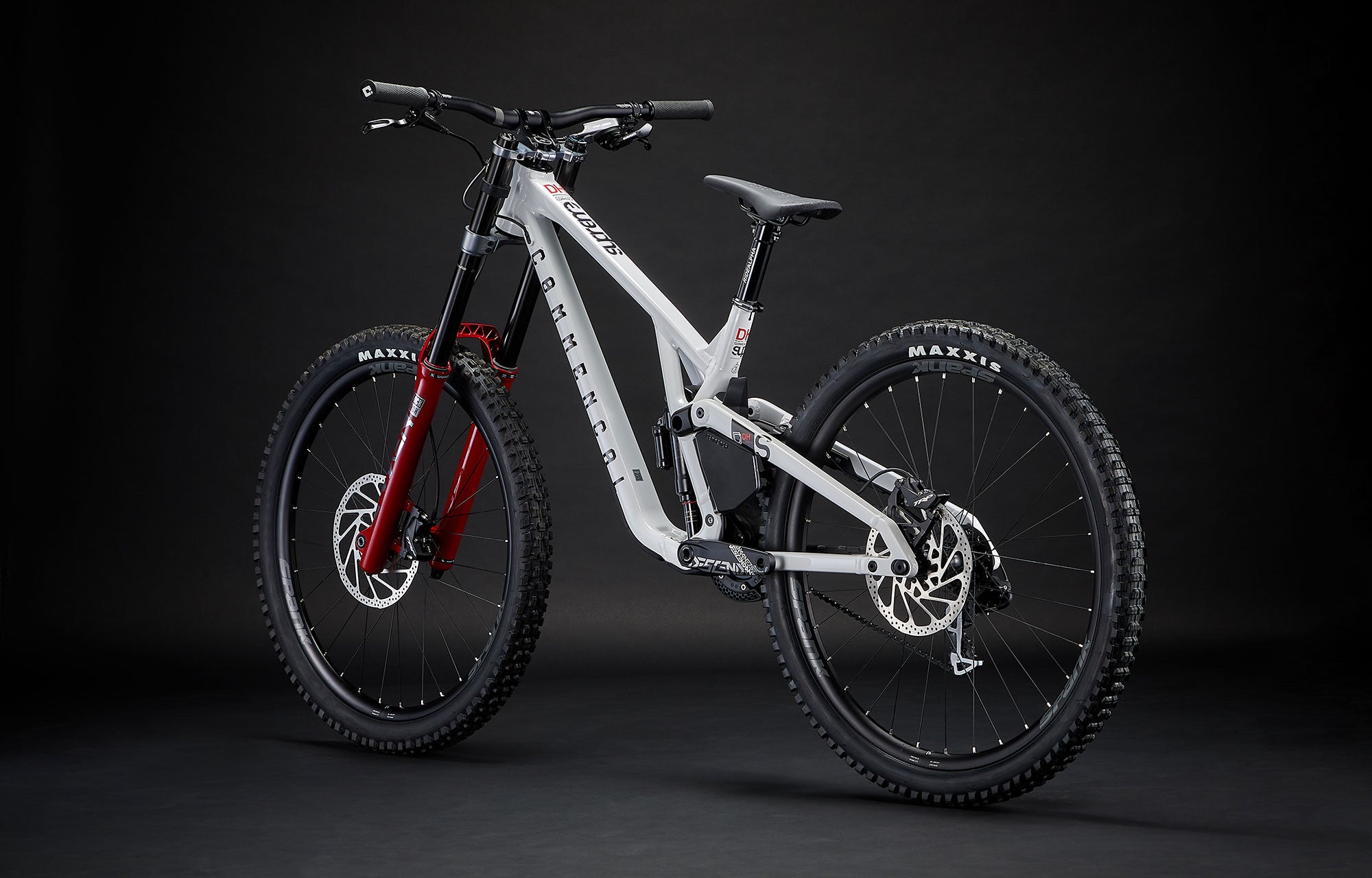

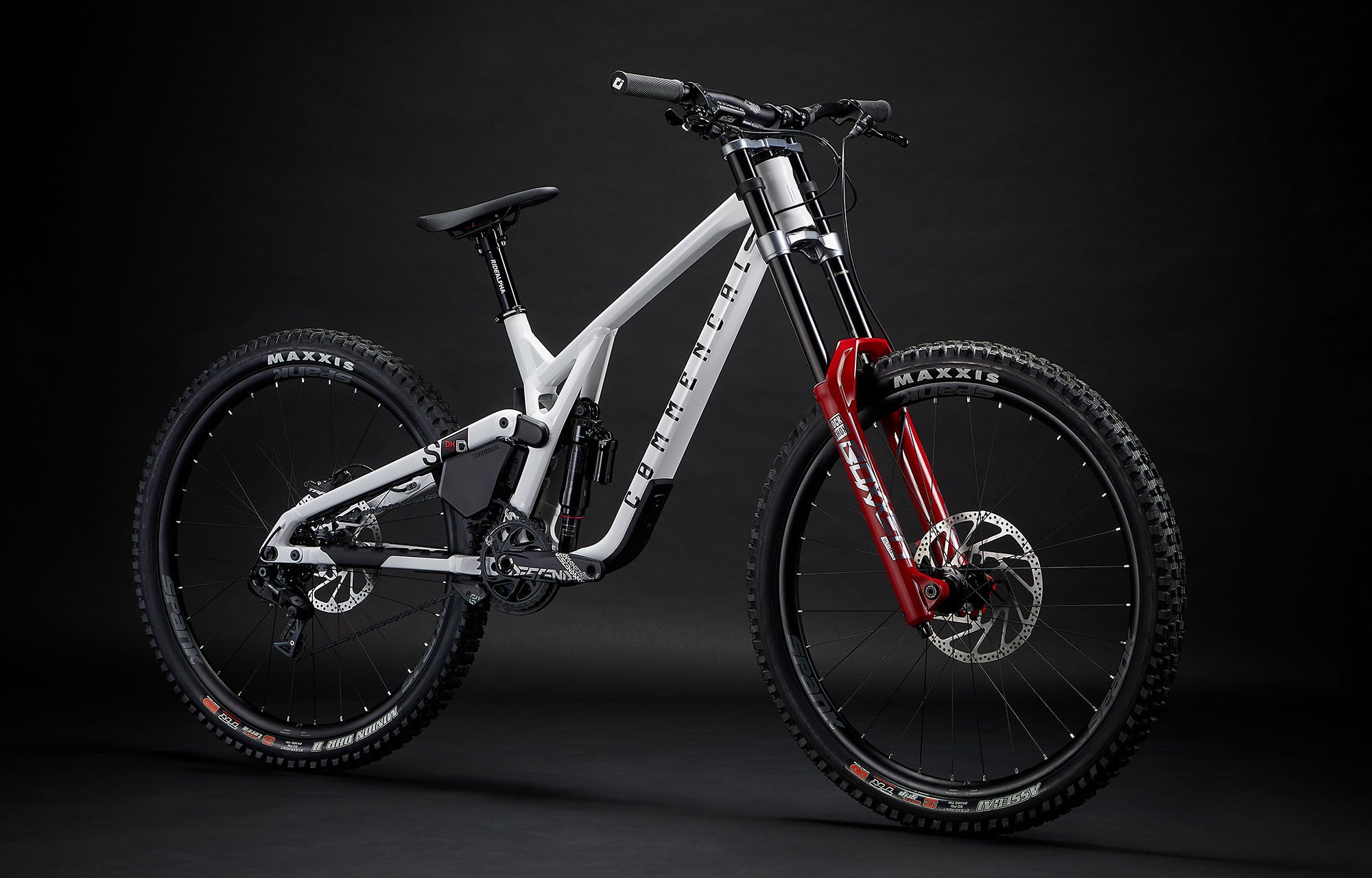

COMMENCAL SUPREME DH V5 XS PURE WHITE

R 125,000.00
Color
There is a longer delivery lead time on this bike. Click the button below to enquire about this bike.
Description

ALL ABOUT SUPREME DH V5

The SUPREME DH V5 XS is the kid’s version of our World Cup Downhill winning bike. Coming from a race background, it is the bike that put Amaury Pierron on the top step of the World Cup DH podium. Ultra efficient and super adjustable; it has no limits. The XS version in 27.5" is specifically designed for teenagers and smaller riders.

The SUPREME DH V5 XS is engineered to give smaller riders access to top-level technology and the tools to excel in downhill racing.

• ROCKSHOX Boxxer Ultimate fork delivers outstanding performance and ergonomic adjustability. Its forgiving frame perfectly suits lightweight riders, ensuring optimal control. The ROCKSHOX Super Deluxe Select R air shock provides responsiveness, dynamic handling, and extensive tuning options through its pneumatic spring.
• TRP DH-R Evo 4-piston brakes with 223mm rotors offer powerful, consistent stopping power. Smooth modulation guarantees precision braking on every trail.
• SPANK Race 33 rims provide durable and reliable performance for riders who demand strong, resilient wheels.

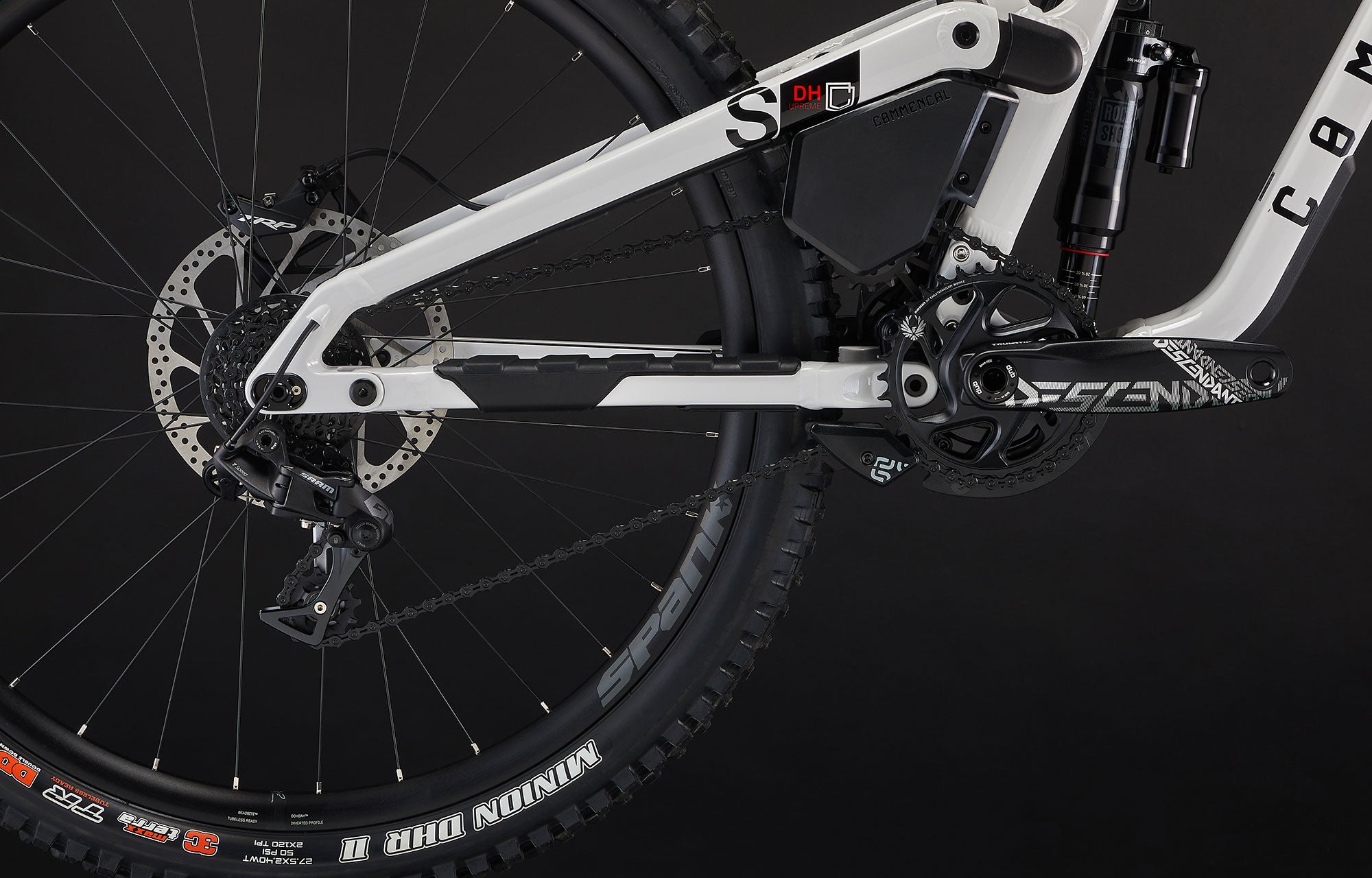

• SRAM GX DH 7-speed drivetrain is built for gravity riding, delivering reactive, robust, and precise shifting for challenging downhill terrain.


*Please note that bike specs are subject to change without prior notice.

Tech

FRAME MATERIAL: Al 6066 T4, T6

FRAME WEIGHT: 5,3 kg / 11.68 lb

REAR TRAVEL: 220 mm

SHOCK LENGTH / STROKE: 250x75mm

PIGGY BACK SHOCK COMPATIBLE: YES

SHOCK BUSHINGS: 30x8mm / 30x8mm

RECOMMENDED / MAX. FORK HEIGHT: 581mm / 586mm

HEADSET DIMENSION: -

HEADSET TYPE: ACROS ZS56 / ZS56 Alloy cups, sealed bearings

MAXIMUM TYRE DIMENSION (ETRTO): 65mm - Ø584mm

DISC BRAKE STANDARD:

REAR ROTOR MAX. SIZE: 223 MM

SEATPOST / SEAT CLAMP DIAMETER: 31,6mm / 34,9mm

BOTTOM BRACKET TYPE: SRAM DUB Pressfit

ISCG:

FRONT DERAILLEUR TYPE: -

REAR HUB COMPATIBILITY: 157x12mm

Specs

SHOCK: ROCKSHOX SuperDeluxe Select R
250 x 75 mm, R damper, DebonAir, rebound, 0 Token neg. 1 Token pos.

FORK: ROCKSHOX Boxxer Ultimate, 200 mm travel
27.5", Charger 2.1 RC2 damper, DebonAir, rebound, Boost (20 x 110 mm), 36 mm offset, 0 Token

HEADSET: ACROS ZS56 / ZS56
Alloy cups, sealed bearings

STEM: RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mm

BAR: RIDE ALPHA R20
31.8 mm, 740 mm width, 20 mm rise, Alloy 6061

GRIPS: ODI Elite Motion
Soft pro compound, single clamp, black

BRAKES: TRP DH-R Evo, 4 pistons, resin pads
Rotors: TRP R1 223/203 mm, 6-bolt, 2.3 mm width

SHIFTERS: SRAM GX DH
7 sp

CHAIN GUIDE: E13 LG1 + Bottom Guide
32-34t

REAR MECH: SRAM GX DH
7 sp

BOTTOM BRACKET: SRAM DUB
Pressfit

CRANKSET: TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34t

CHAIN: KMC X11EL
Black

CASSETTE: SRAM PG-720
7 sp, 11-25t

RIMS: SPANK Spike Race 33
27.5'', 32h, 28 mm inner width, tubeless ready

HUBS: Rear: FORMULA DHG-157 - Front: FORMULA DHL-93
Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, black

SPOKES/NIPPLES: SAPIM D-Light
J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, black

TYRES: Rear: MAXXIS DHR II - Front: MAXXIS Assegai
REAR: 27.5" x 2.4", WT, 3C MaxxTerra, Double Down, Tubeless Ready - FRONT: 27.5" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless Ready

SEATPOST: RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075

SADDLE: FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails

Quick Facts

BICYCLE TYPE: Kids bike - Downhill Racing

FRAME: SUPREME DH V5 XS, 220 mm travel
27.5'', Alloy 6066, triple butted tubes, T4, T6

WEIGHT: 16.8 kg / 37.04 lbs
Average weight for XS size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED: NO

ACCESSORIES: Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover, frame mudguard

Trusted Affiliates

#CONTROL #ULTRA-EFFICIENT #WORLDCHAMPION

The SUPREME DH V5 XS is the kid’s version of our World Cup Downhill winning bike. Coming from a race background, it is the bike that put Amaury Pierron on the top step of the World Cup DH podium. Ultra efficient and super adjustable; it has no limits. The XS version in 27.5" is specifically designed for teenagers and smaller riders.

GEOMETRY
