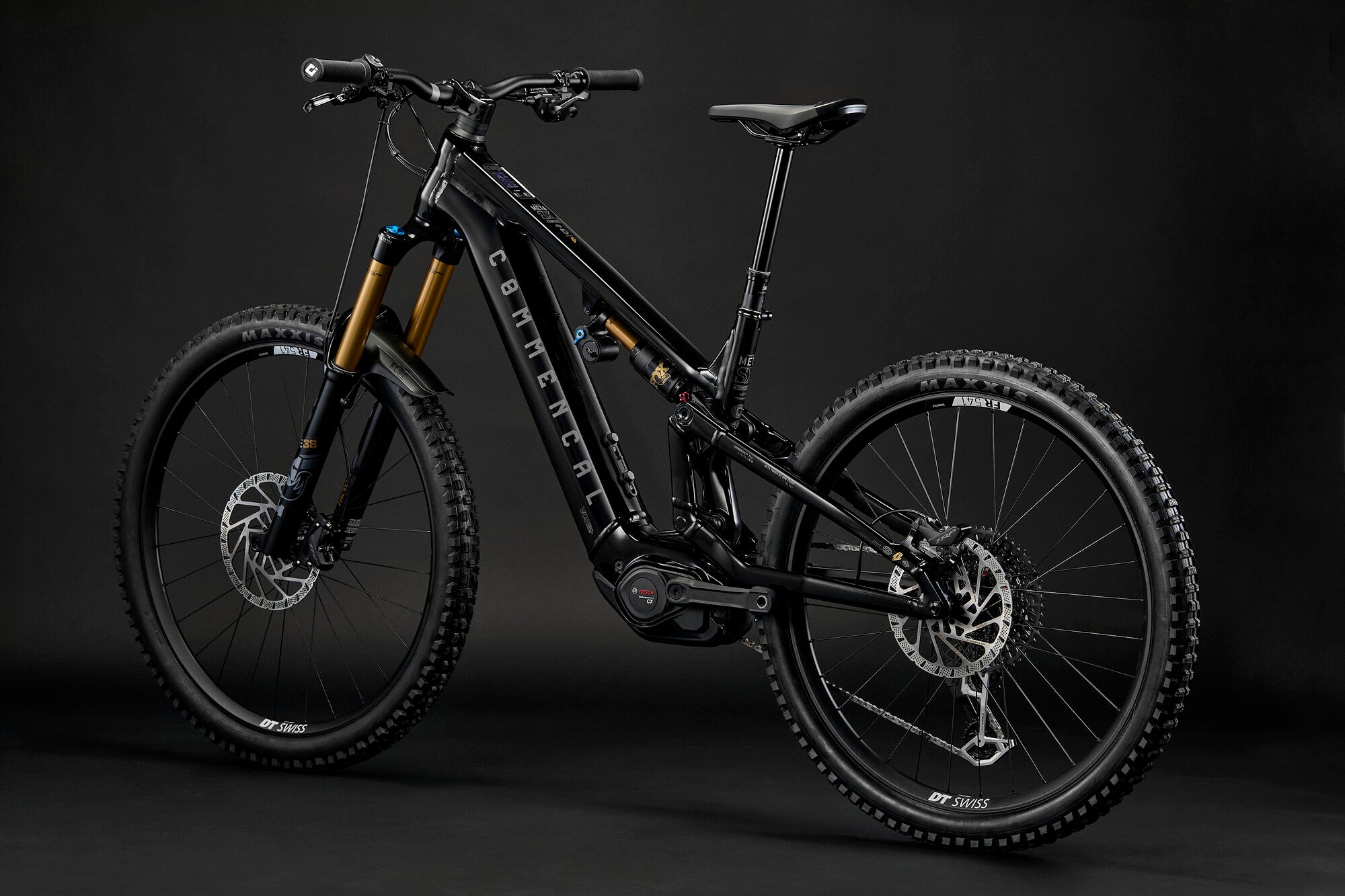

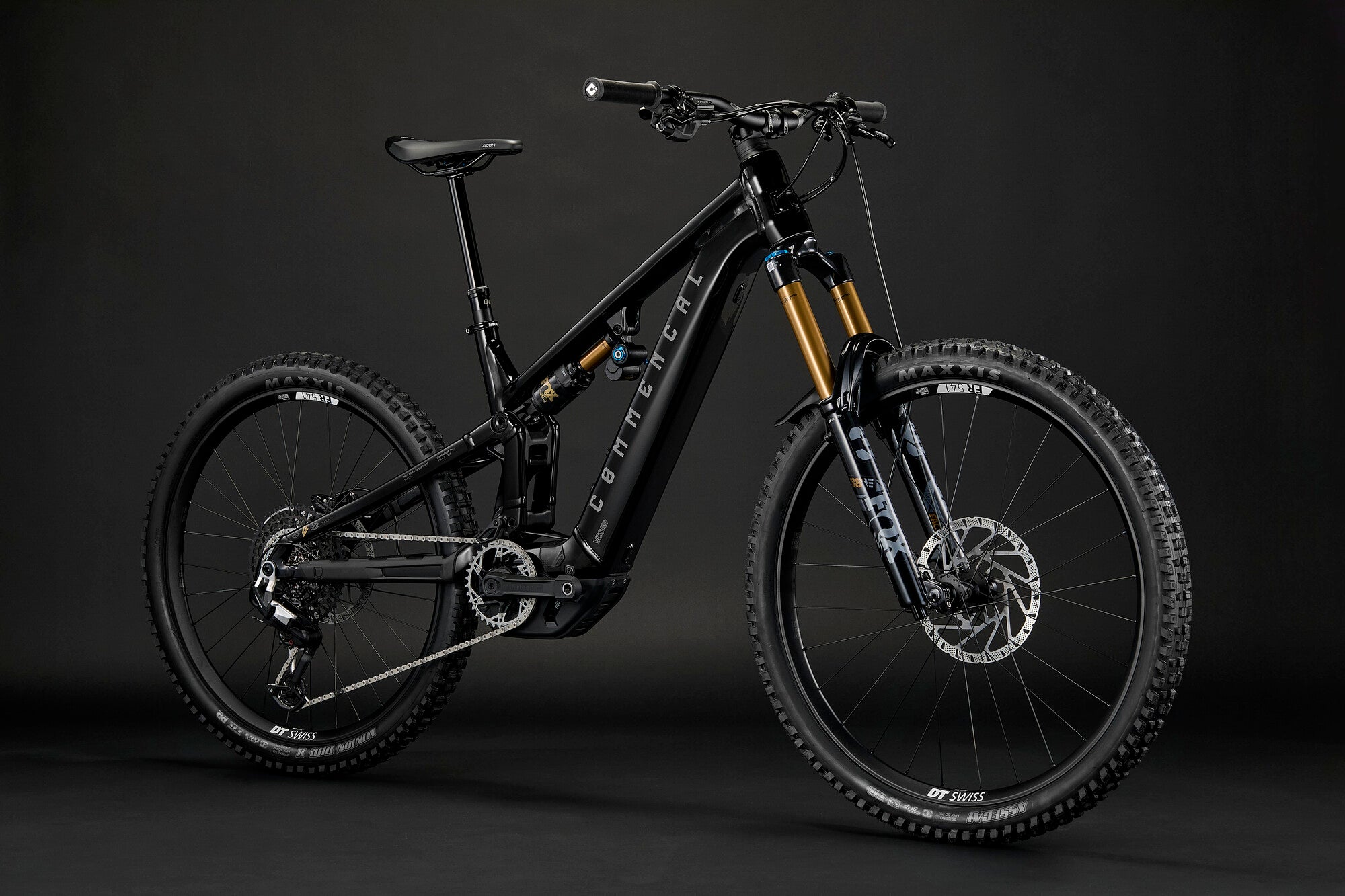

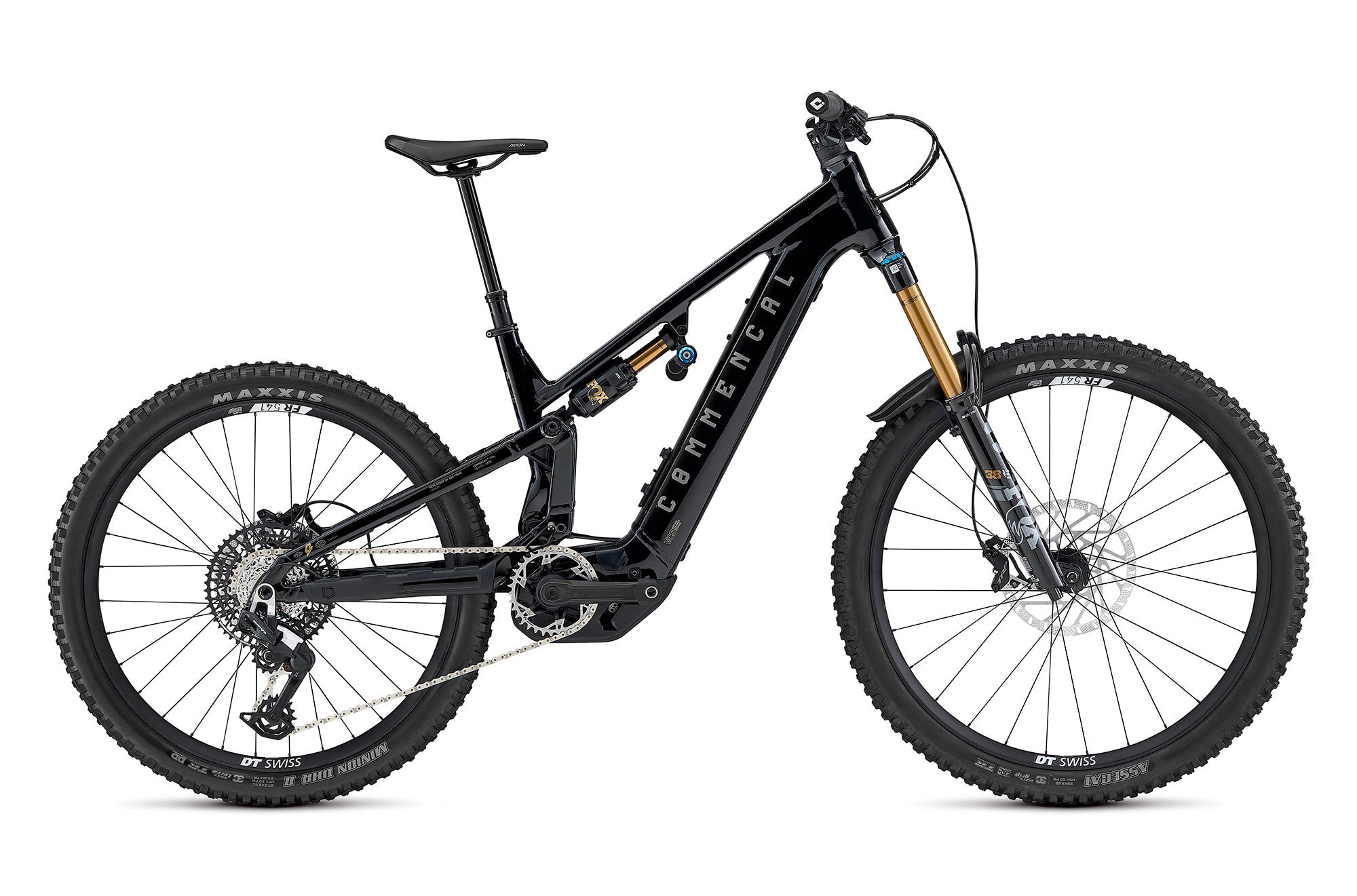

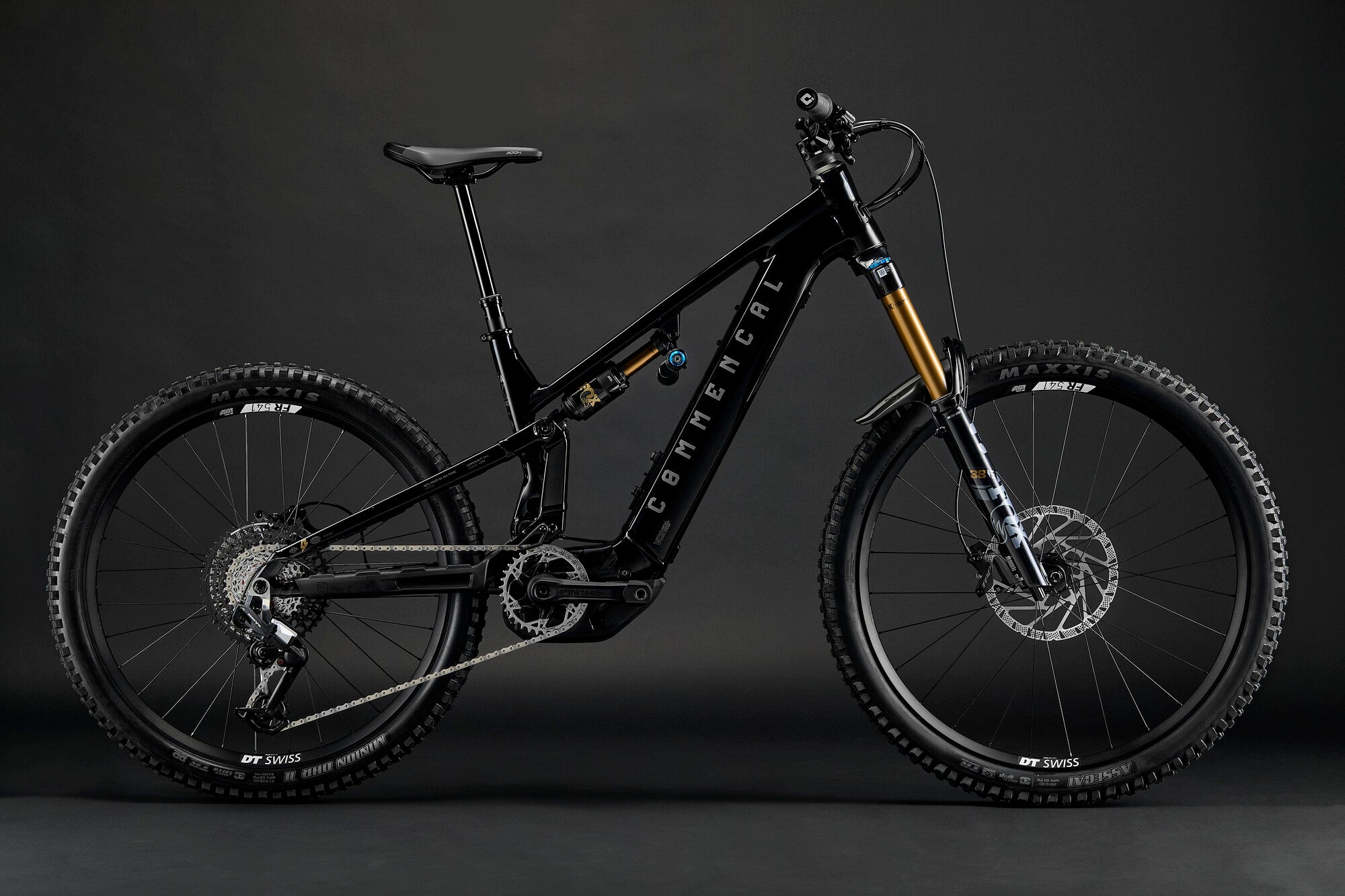

NEW! COMMENCAL META POWER SX 800 SIGNATURE PURE BLACK 2026

FRAME MATERIAL: Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

FRAME WEIGHT: 5,86 kg / 12.91 lb

REAR TRAVEL: 180 MM

SHOCK LENGTH / STROKE: 230 X 65 MM

PIGGY BACK SHOCK COMPATIBLE: YES

SHOCK BUSHINGS: 20x10mm / no bushing needed on clevis

RECOMMENDED / MAX. FORK HEIGHT: 588mm / 598mm

HEADSET DIMENSION: TAPERED

HEADSET TYPE: ZS56 / ZS66

MAXIMUM TYRE DIMENSION (ETRTO): 65 - 584 mm

DISC BRAKE STANDARD: PM160

REAR ROTOR MAX. SIZE: 220 MM

SEATPOST / SEAT CLAMP DIAMETER: 31,6 MM / 34,9 MM

BOTTOM BRACKET TYPE: BOSCH E-BIKE

ISCG: Yes (BOSCH Standard)

FRONT DERAILLEUR TYPE: NO

REAR HUB COMPATIBILITY: 12 X 148 MM

SHOCK: FOX Float X2 Factory
230 x 65 mm, 2-postion (open/firm) lever, HSC, LSC, HSR, LSR

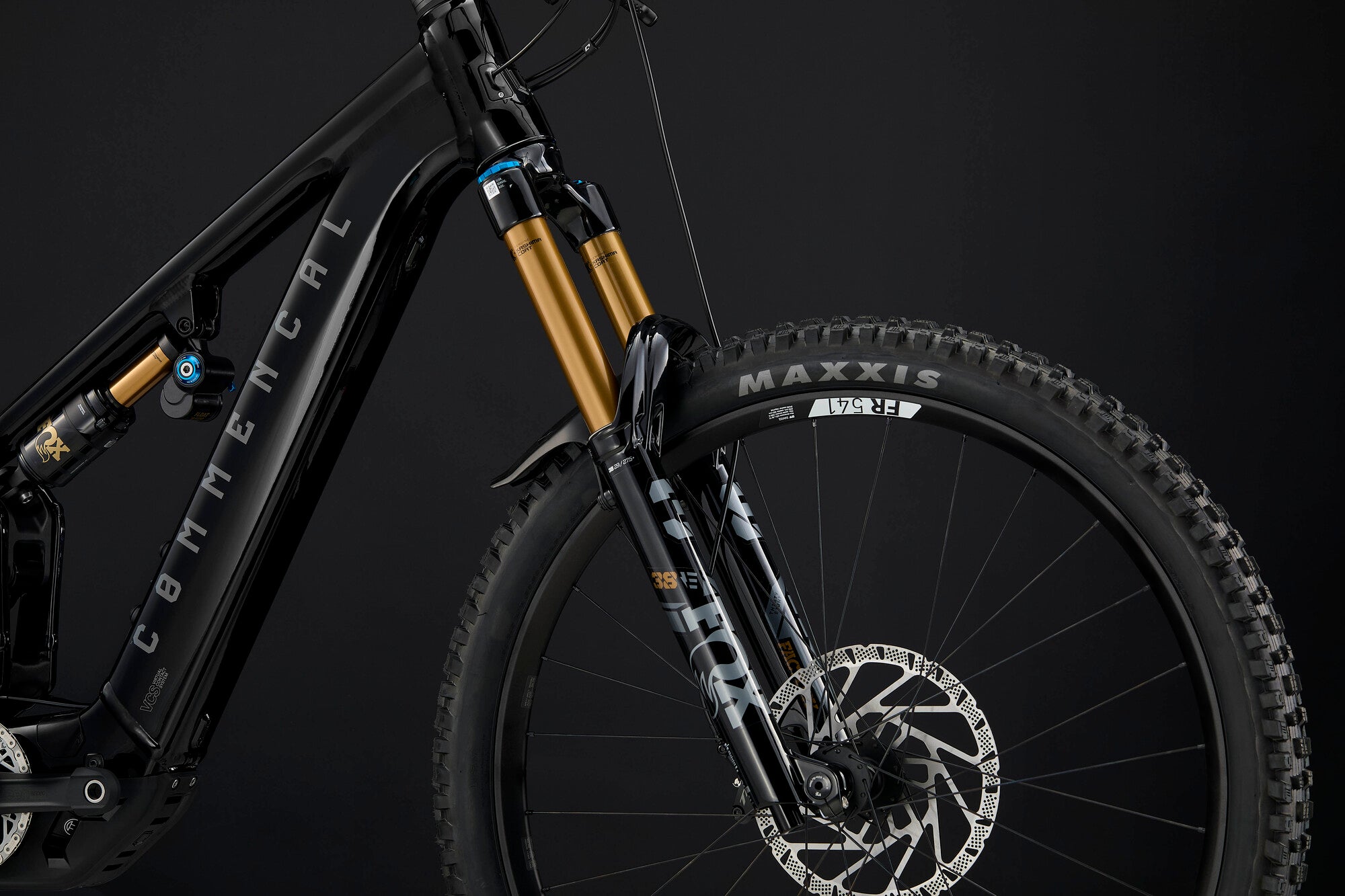

FORK: FOX 38 Factory E-Bike, 180 mm
29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacers

HEADSET: ACROS ZS56/ZS66
Alloy cups, stainless steel & sealed bearings

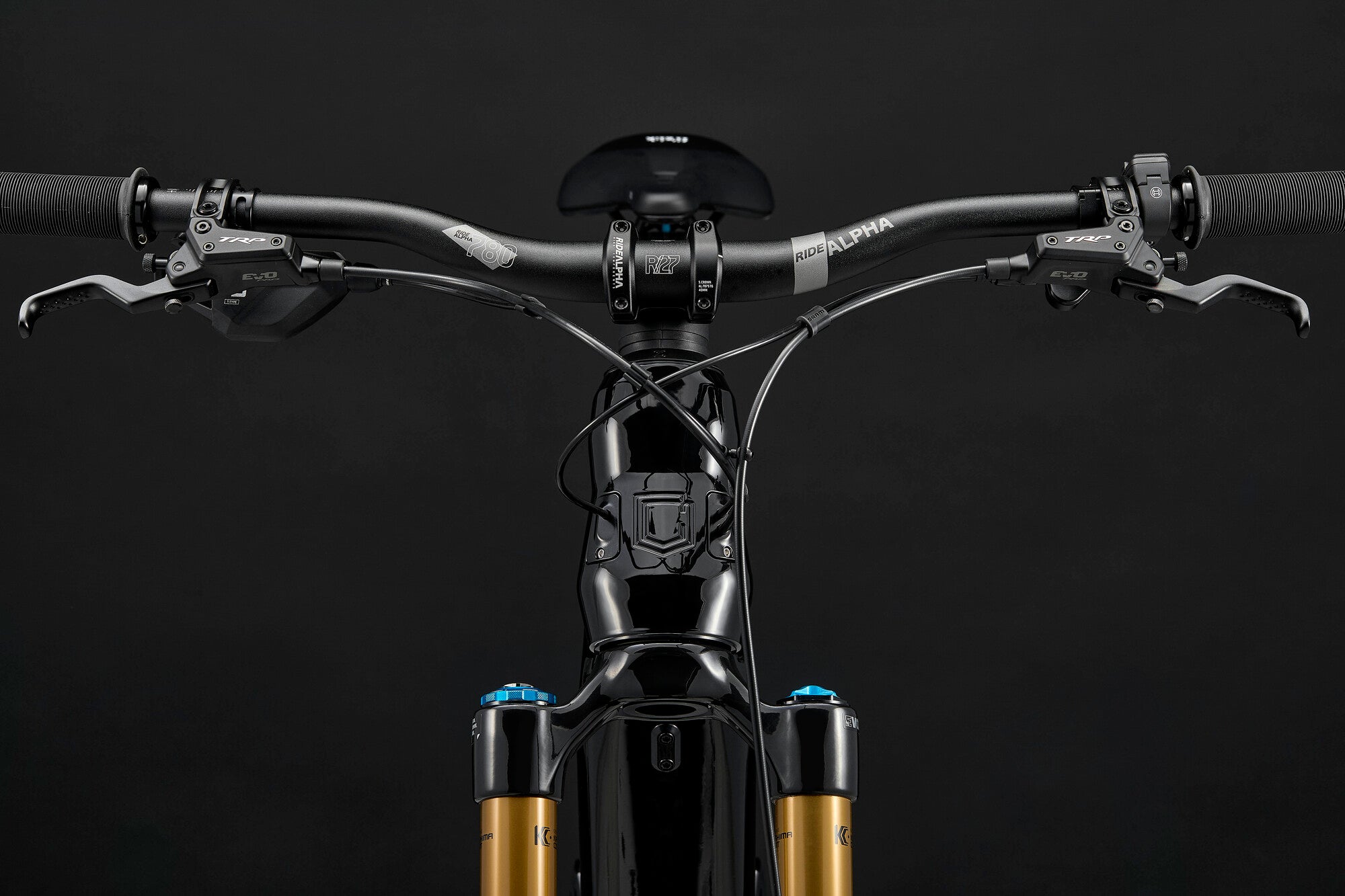

STEM: RIDE ALPHA 40
40 mm extension, 31.8 mm

BAR: RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS: ODI Longneck 2.1
Soft compound, single clamp, black

BRAKES: TRP DH-R EVO PRO, 4 pistons, resin pads
Rear rotor: TRP RS05 203 mm - Front rotor: TRP RS05 220 mm
6-bolt, 2.3 mm width

SHIFTERS: SRAM Eagle 90
12s

CHAIN GUIDE: RIDE ALPHA
32-34t

REAR MECH: SRAM Eagle 90
12s

BOTTOM BRACKET: BOSCH

CRANKSET: E13 Helix Core E*Spec, 155 mm crank arms, Bosch
Chainring: SRAM XX T-Type E-MTB, 34t for Bosch system, direct mount

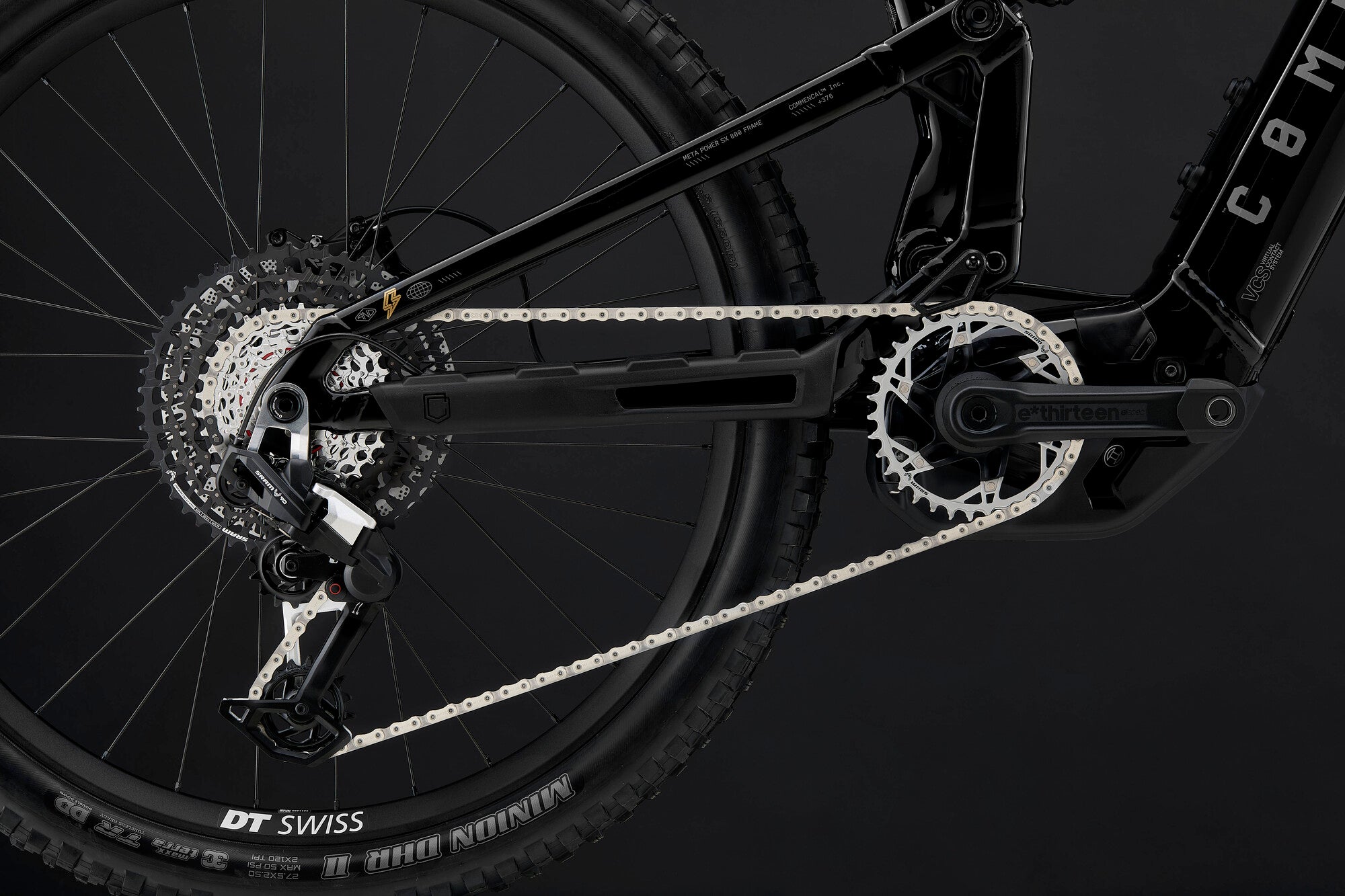

CHAIN: SRAM GX T-Type
12s, Flattop

CASSETTE: SRAM GX T-Type
12s, 10-52t

RIMS: DT SWISS FR541
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

HUBS: Rear: DT SWISS 370 Hybrid - Front: DT SWISS 370
Rear: 28h, sealed bearings, 12 x 148 mm, 24t, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES: Included with wheelset

TYRES: Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy

SEATPOST: ONE UP V3
31.6 mm, 150 mm on S, 180 mm on M, 210 mm on L/XL

SADDLE: FIZIK Terra Aidon X5
145 mm width, Kium Mobius rails

MOTOR: BOSCH Performance Line CX. Max. torque: 85N.m, 250W

BATTERY: BOSCH PowerTube 625, 625Wh. BOSCH 4A Charger, Compact size & lightweight. Compatible w/Bosch PowerMore 250 for extra range

DISPLAY: BOSCH System ControllerBOSCH Mini Remote currently not available in the USA

BATTERY RECYCLING: Partnership with BOSCH. The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too. Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.

BICYCLE TYPE: E-bike - Enduro / Aventure

FRAME: META POWER SX 800, 180 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

WEIGHT: 25,5 kg / 56.22 lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED: CRANKBROTHERS Stamp 1 pedals

ACCESSORIES: CRANKBROTHERS Stamp 1 pedals, fork fender, motor protector, chainstay protector, seatstay protector, user manual
*Actual product may differ from pictures.
*Please note that bike specs are subject to change without prior notice.
