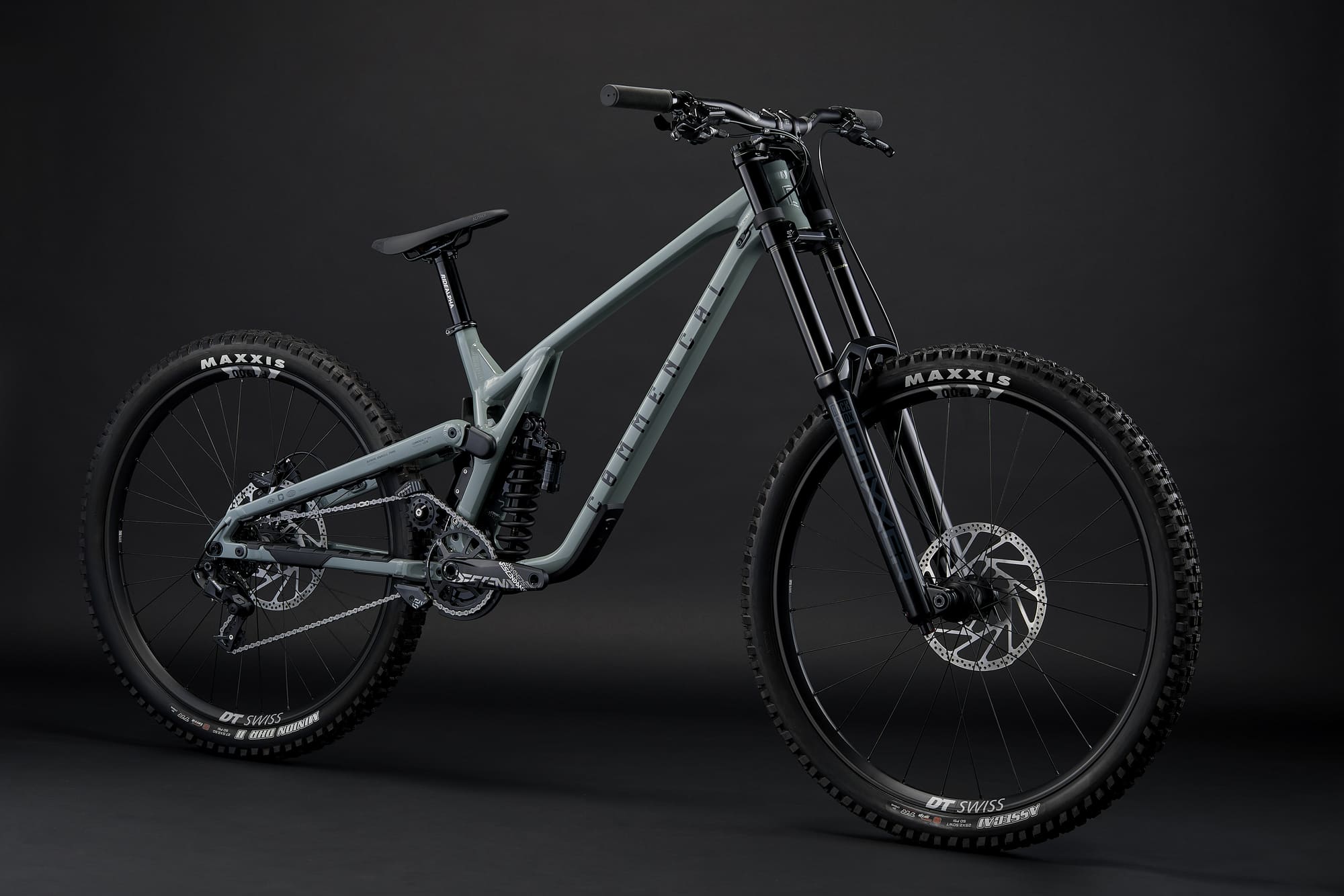

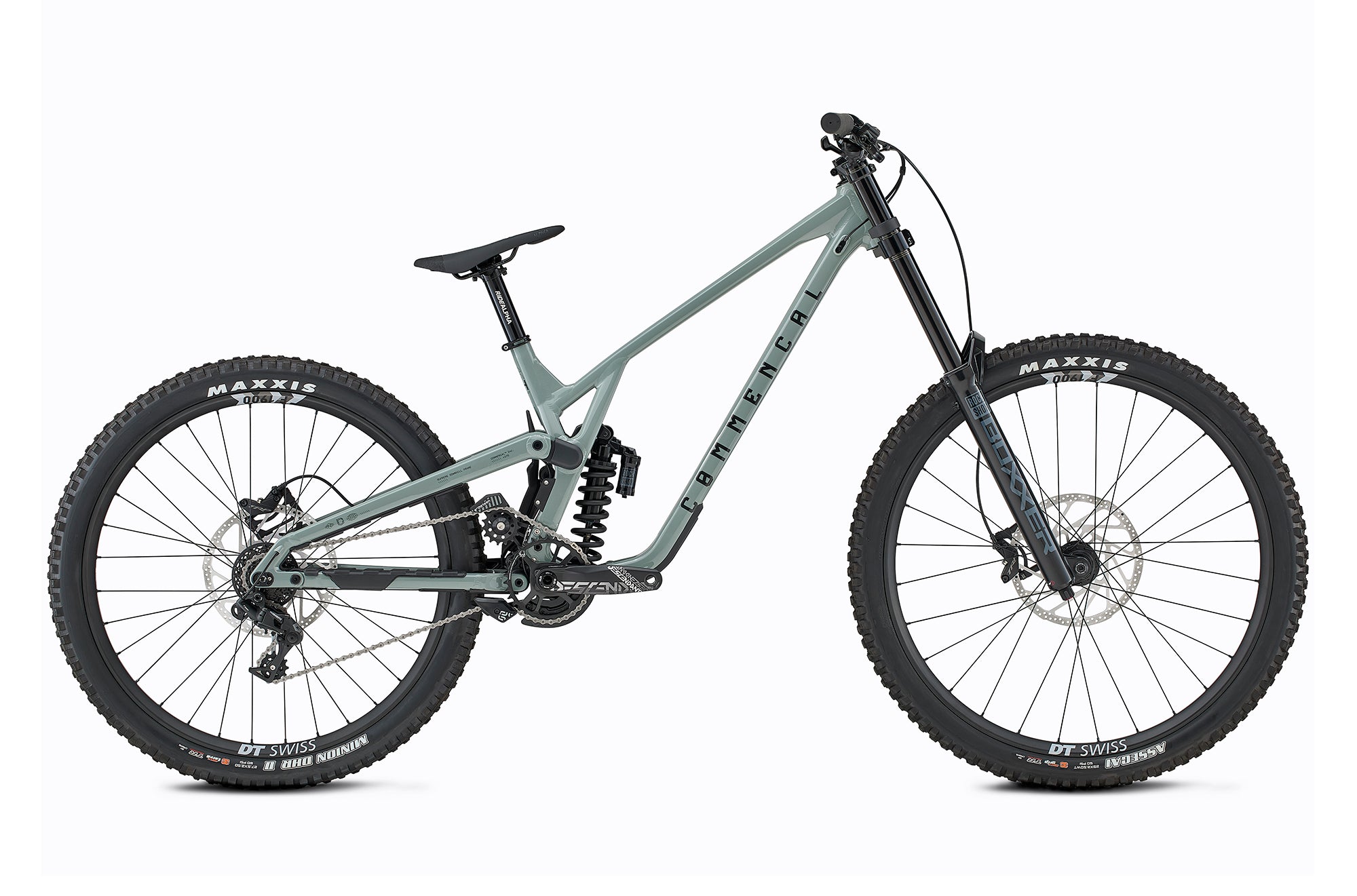

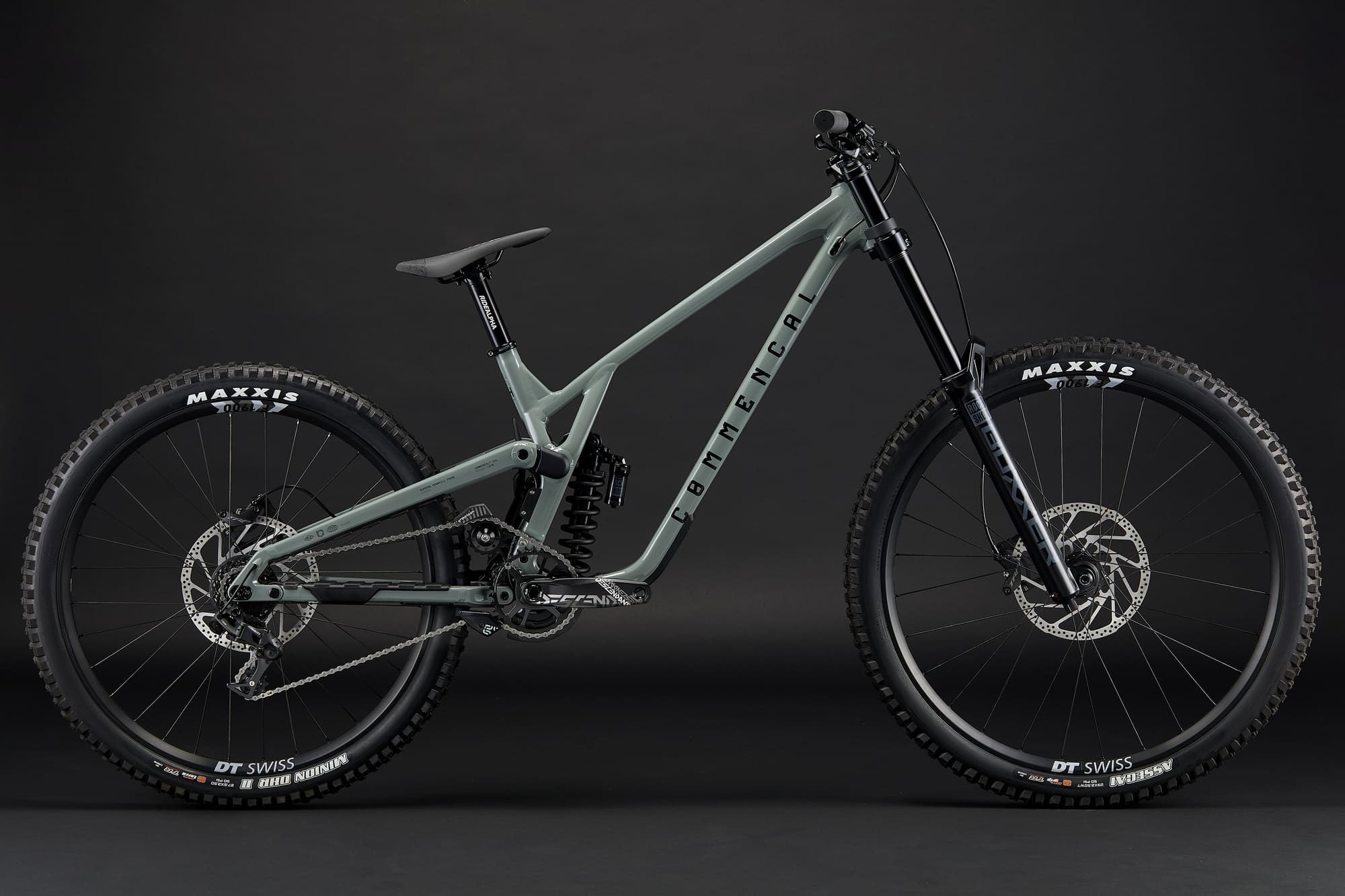

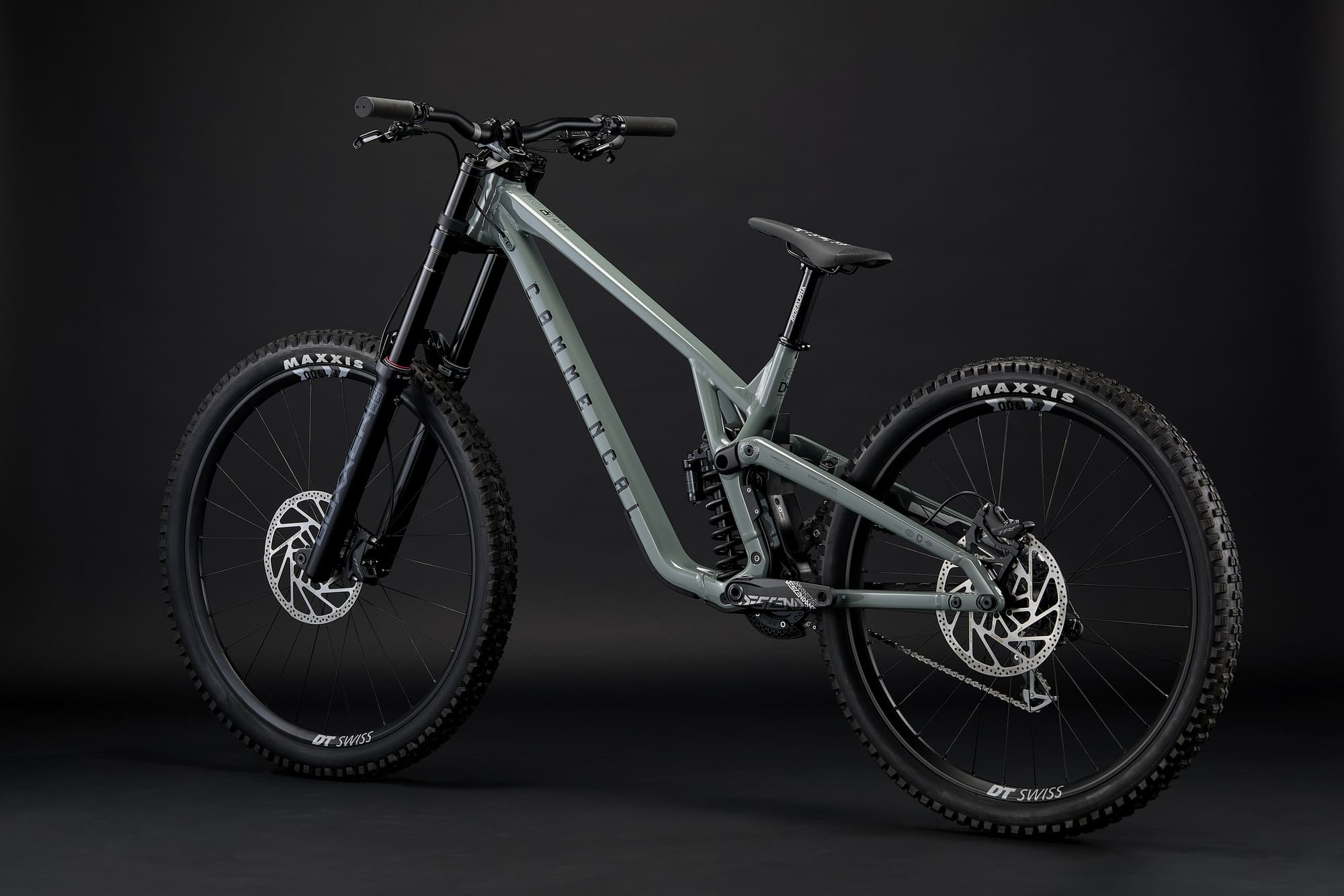

NEW! COMMENCAL SUPREME DH V5 RIDE PYRITE GREY 2026

R 138,000.00
Color
There is a longer delivery lead time on this bike. Click the button below to enquire about this bike.
Description

ALL ABOUT SUPREME DH V5

The SUPREME DH V5 is much more than just a racing bike; it's a true machine designed for competitions. The result of three years of intensive collaboration between our research and development department and top athletes, this model has proven its worth from its very first World Cup season.

The SUPREME DH V5 RIDE is equipped with high-performance SRAM components.

• The ROCKSHOX BoXXer Base fork is proven and reliable. Fitted with the DebonAir+ air spring and a Charger 3 RC cartridge, it delivers simple and precise low speed rebound and compression adjustments. The ROCKSHOX Vivid Coil Base shock combines exceptional sensitivity with excellent midstroke support thanks to its coil spring.
• Braking is provided by TRP DH-R EVO PRO calipers matched to redesigned discs that improve bite and heat dissipation. Brakes are progressive, consistent and easy to modulate.
• DT SWISS wheels with F1900 Classic rims and hubs supply dynamic response and proven durability.

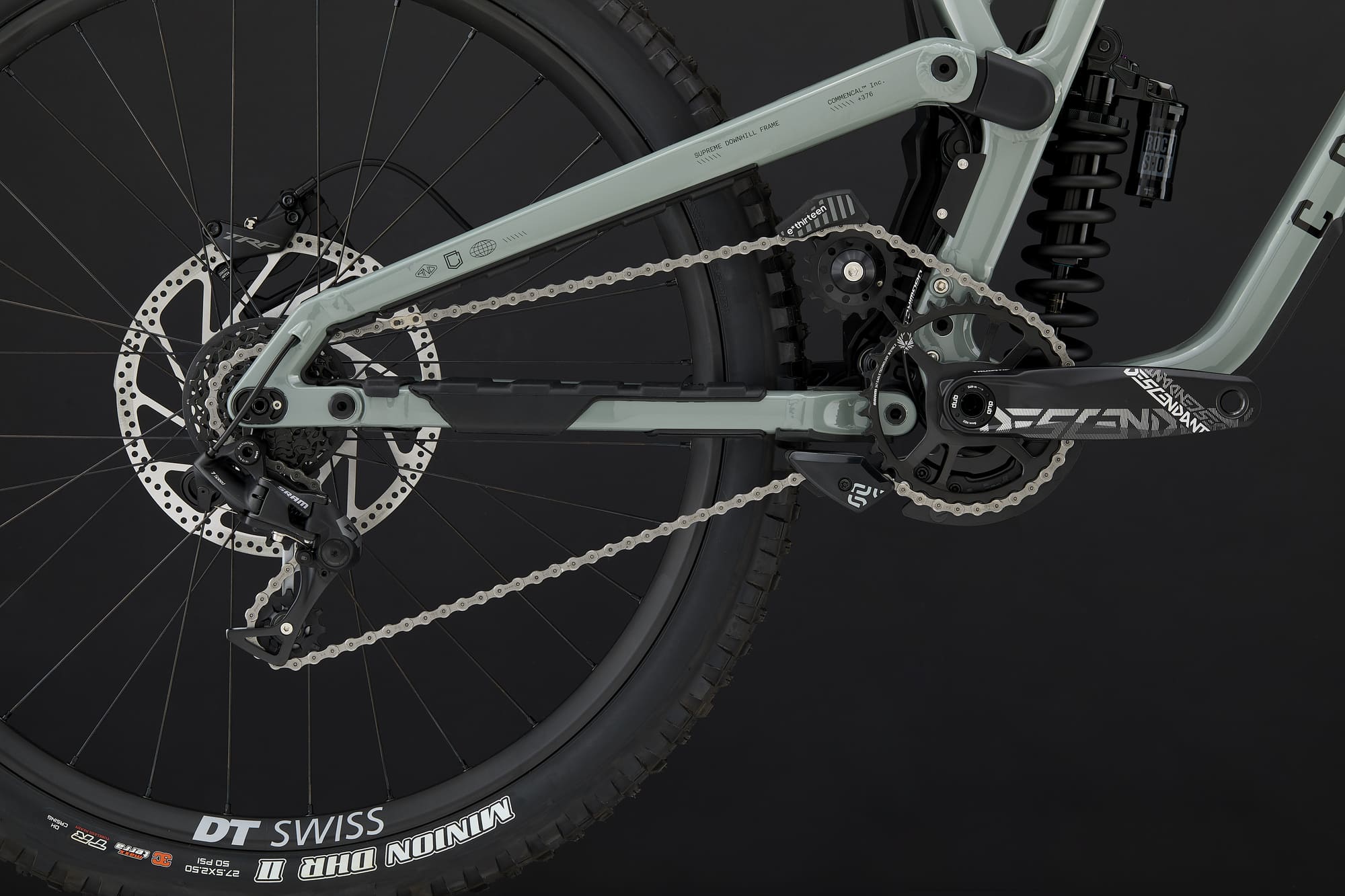

• The drivetrain is driven by the SRAM GX DH group. The 7-speed shifts are precise and tailored to downhill demands.

*Please note that bike specs are subject to change without prior notice.

Tech

FRAME MATERIAL: AL 6066 T4, T6

FRAME WEIGHT: 5,3 kg / 11.68 lb

REAR TRAVEL: 220 mm

SHOCK LENGTH / STROKE: 250 mm x 75 mm

PIGGY BACK SHOCK COMPATIBLE: YES

SHOCK BUSHINGS: 30 x 8 mm / 30 x 8 mm

RECOMMENDED / MAX. FORK HEIGHT: 612mm / 620mm

HEADSET DIMENSION: -

HEADSET TYPE: ACROS ZS56 / ZS56 Alloy cups, sealed bearings

MAXIMUM TYRE DIMENSION (ETRTO): 65 MM

DISC BRAKE STANDARD:

REAR ROTOR MAX. SIZE: 223 MM

SEATPOST / SEAT CLAMP DIAMETER: 31,6mm / 34,9mm

BOTTOM BRACKET TYPE: Press Fit BB 107

ISCG:

FRONT DERAILLEUR TYPE: -

REAR HUB COMPATIBILITY: 157x12mm

BRIDGE:

WHEEL BASE LENGTH:

FLIP CHIP:

Specs

SHOCK: ROCKSHOX VIVID Coil Base
250 x 75 mm, R damper, rebound
Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 550 lbs on XL

FORK: ROCKSHOX BOXXER Base, 200 mm
29", Charger 3 RC damper, DebonAir +, rebound, LSC, Boost (20 x 110 mm), 52 mm offset, 0 Token

HEADSET: ACROS ZS56 / ZS56
Alloy cups, sealed bearings

STEM: RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mm

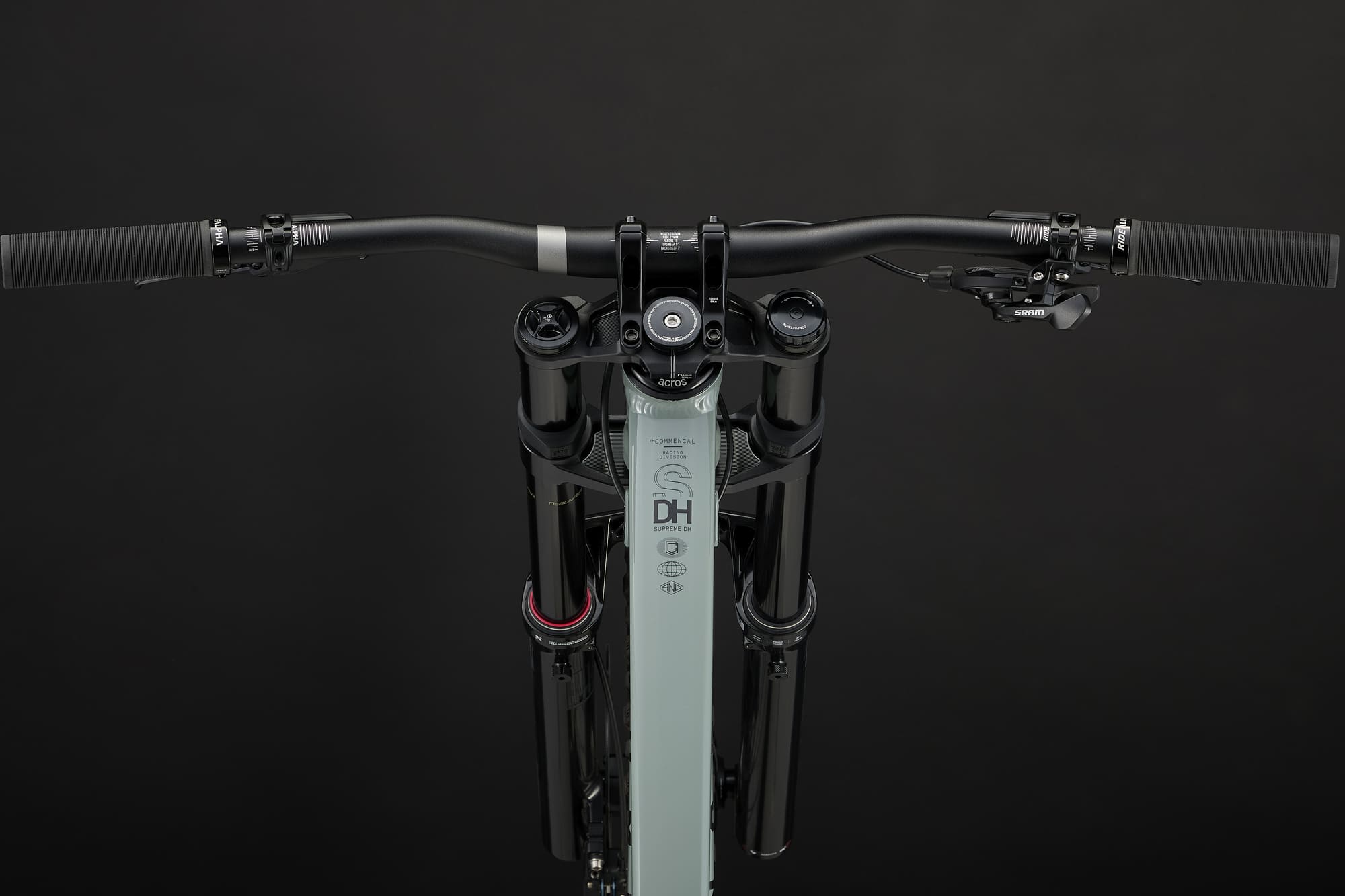

BAR: RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS: RIDE ALPHA MUSHROOM
132 mm, Black clamp

BRAKES: TRP DH-R EVO PRO, 4 pistons, resin pads
Rotors: TRP R2 223 mm, 6-bolt, 2.3 mm thickness

SHIFTERS: SRAM GX DH
7s

CHAIN GUIDE: ISCG 05 lower - Custom upper idler guide

REAR MECH: SRAM GX DH
7s

BOTTOM BRACKET: SRAM DUB
BB107, pressfit

CRANKSET: SRAM Descendant DH, 165 mm crank arms, DUB
Chainring: SRAM Descendant DH, 34t

CHAIN: SRAM PC1110
11s, Black

CASSETTE: SRAM PG-720
7s, 11-25t

RIMS: DT SWISS F1900 Classic
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width

HUBS: DT SWISS 370 Classic LN
Rear: 32h, sealed bearings, 12 x 157 mm, 18t ratchet, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm

SPOKES/NIPPLES: DT SWISS Competition
J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with ProLock, black

TYRES: Rear: MAXXIS Minion DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.5'', 3C MaxxTerra, DH Casing, Tubeless Ready - Front: 27.5'' x 2.5'', 3C MaxxGrip, DH Casing, Tubeless Ready

SEATPOST: RIDE ALPHA
31.6 mm, 250 mm length

SADDLE: FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails, Team edition

Quick Facts

BICYCLE TYPE: DH RACING

FRAME: SUPREME DH V5, 220 mm travel
29/27.5'', Alloy 6066, triple butted tubes, T4, T6.

WEIGHT: 18,6 kg / 41 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED: NO

ACCESSORIES: Chainstay protector, seatstay protector, fork bumpers, downtube protector
